Sirona Intego - NWM Board - Automatic Tumbler Filling

64 57 316 D3543
D3543.076.01.04.02 06.2015
87
Sirona Dental Systems GmbH 6Overview of modules and boards
Service Manual INTEGO / INTEGO pro 6.4Water unit
båÖäáëÜ
6.4.5 NWM board - Automatic tumbler filling
Intego description

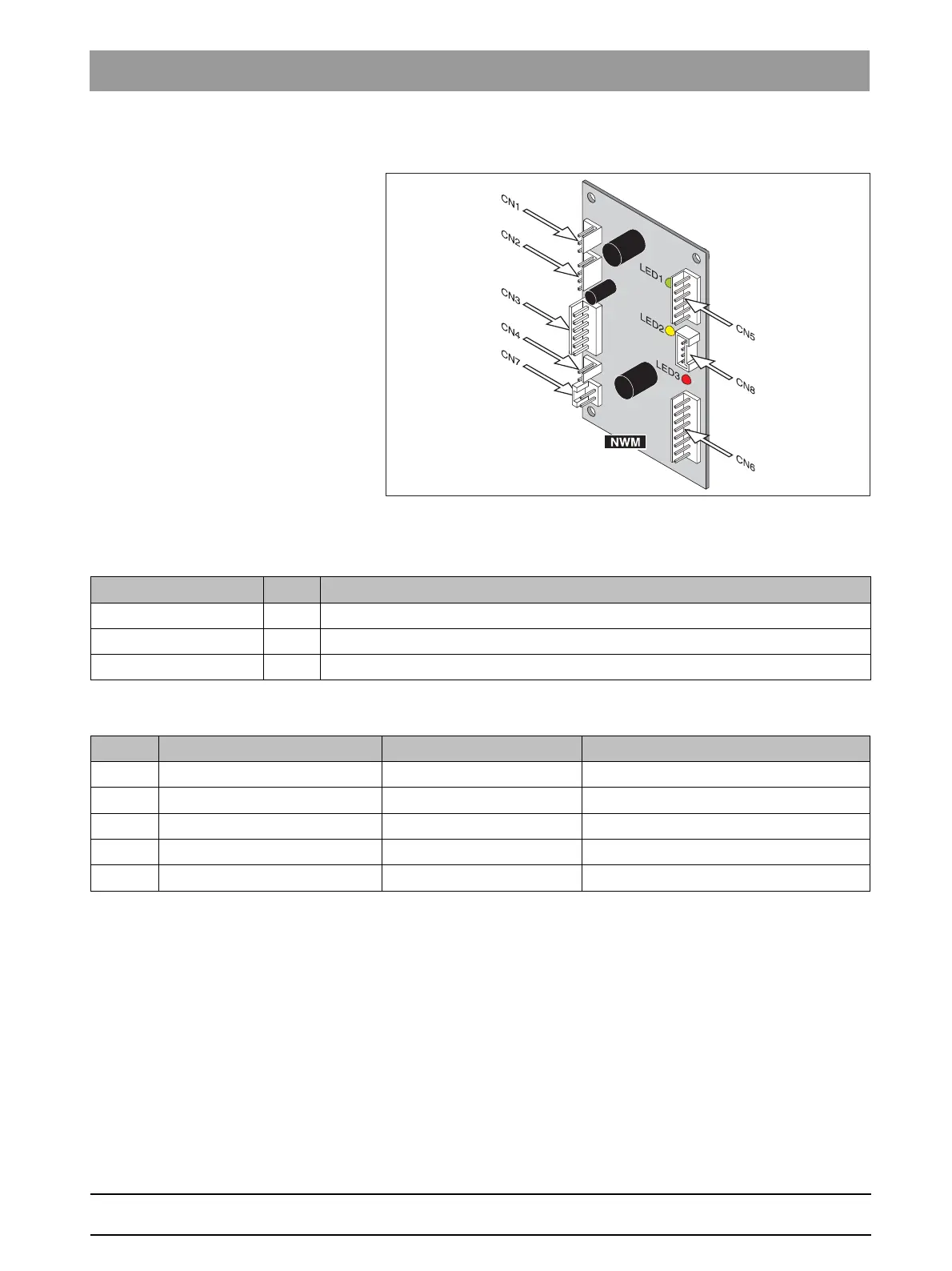

Components on the board
LEDs
Connector
Function
Function of the board
● Automatic tumbler filling
LEDs Color Function
LED1 +15V Green 15 V operating voltage
LED2 cup yellow Illuminated: Tumbler detected
LED3 water level Red Illuminated: Fill level reached
Source Destination Location Function
CN1 X11m DWE Water unit Control of tumbler filling
CN3 X11m DWE Water unit Control of tumbler filling
CN4 Poti_R4 Water unit Set filling level of beaker
CN5 Photo IC Water unit Level detection receptor
CN6 IR LED Water unit Level detection transmitter
