Sirona Dental Systems GmbH 6Overview of modules and boards
Service Manual INTEGO / INTEGO pro 6.3Dentist element
båÖäáëÜ

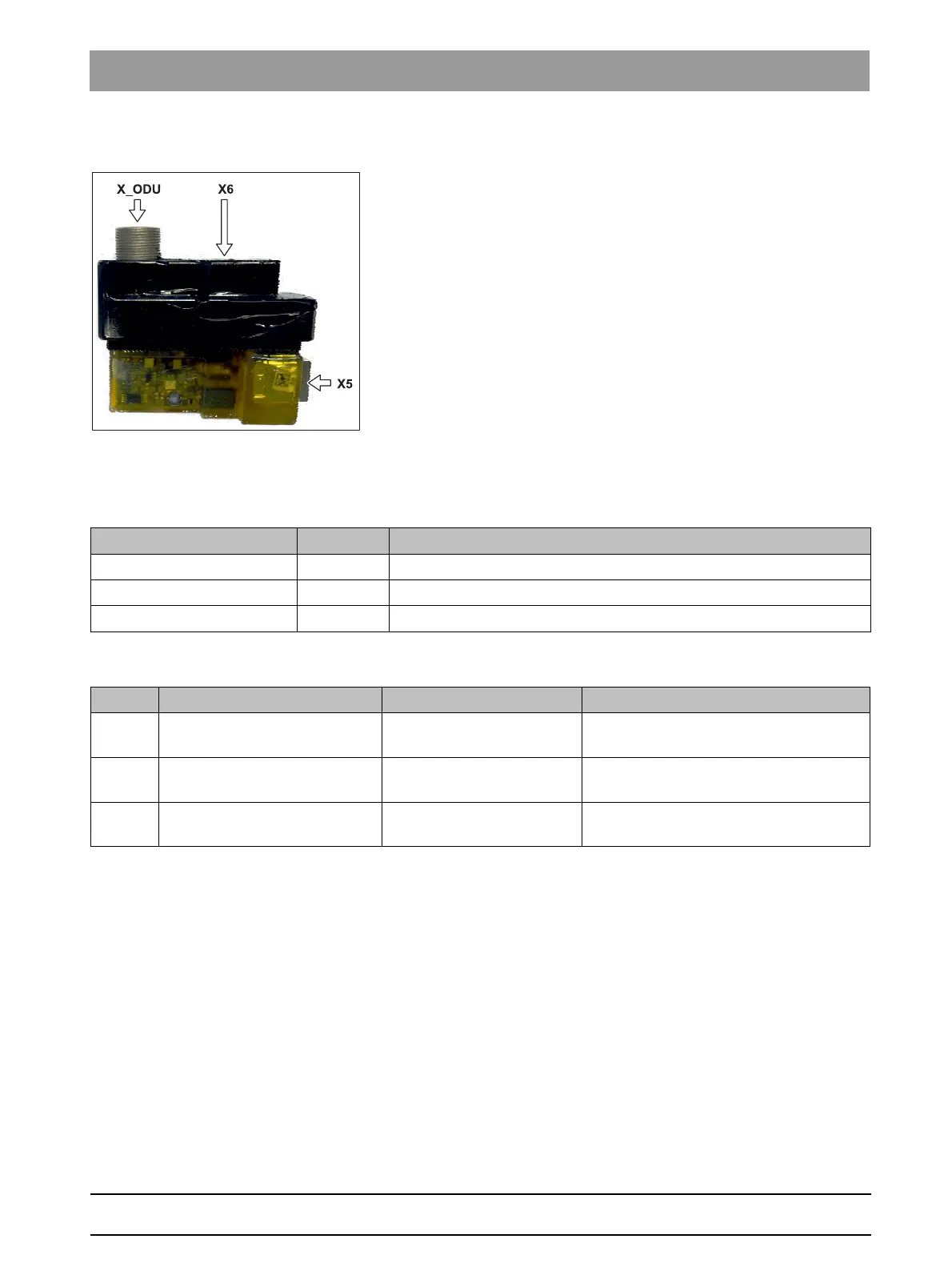

6.3.7 DAU1 board – USB HUB
Components on the board
LEDs
Connector
Function of the board
● Provides a USB 2.0 interface (rectangular USB-A connector) for
connection of medical devices of type BF according to IEC 60601-1,
for example, the intraoral X-ray system XIOS XG USB module from
Sirona.
● Provides a USB 2.0 interface (round ODU connector) for the Sirona
camera.
LED Color Function
5 V Green 5 V input voltage
3.3 V Green Generated 3,3 V voltage
TRAFFIC yellow Flashing: Data traffic active
Source Destination Location Function
X5 X1 DSU Patient chair Supply, data transfer, removal detection if
additional holder is used
X6 USB intraoral sensor Bottom side dentist element
/ assistant element / spittoon
Supply, data transfer
X_ODU Sirona camera Bottom side dentist element
/ assistant element / spittoon
Supply, data transfer, removal detection if
additional holder is used
