6Overview of modules and boards Sirona Dental Systems GmbH
6.4Water unit Service Manual INTEGO / INTEGO pro

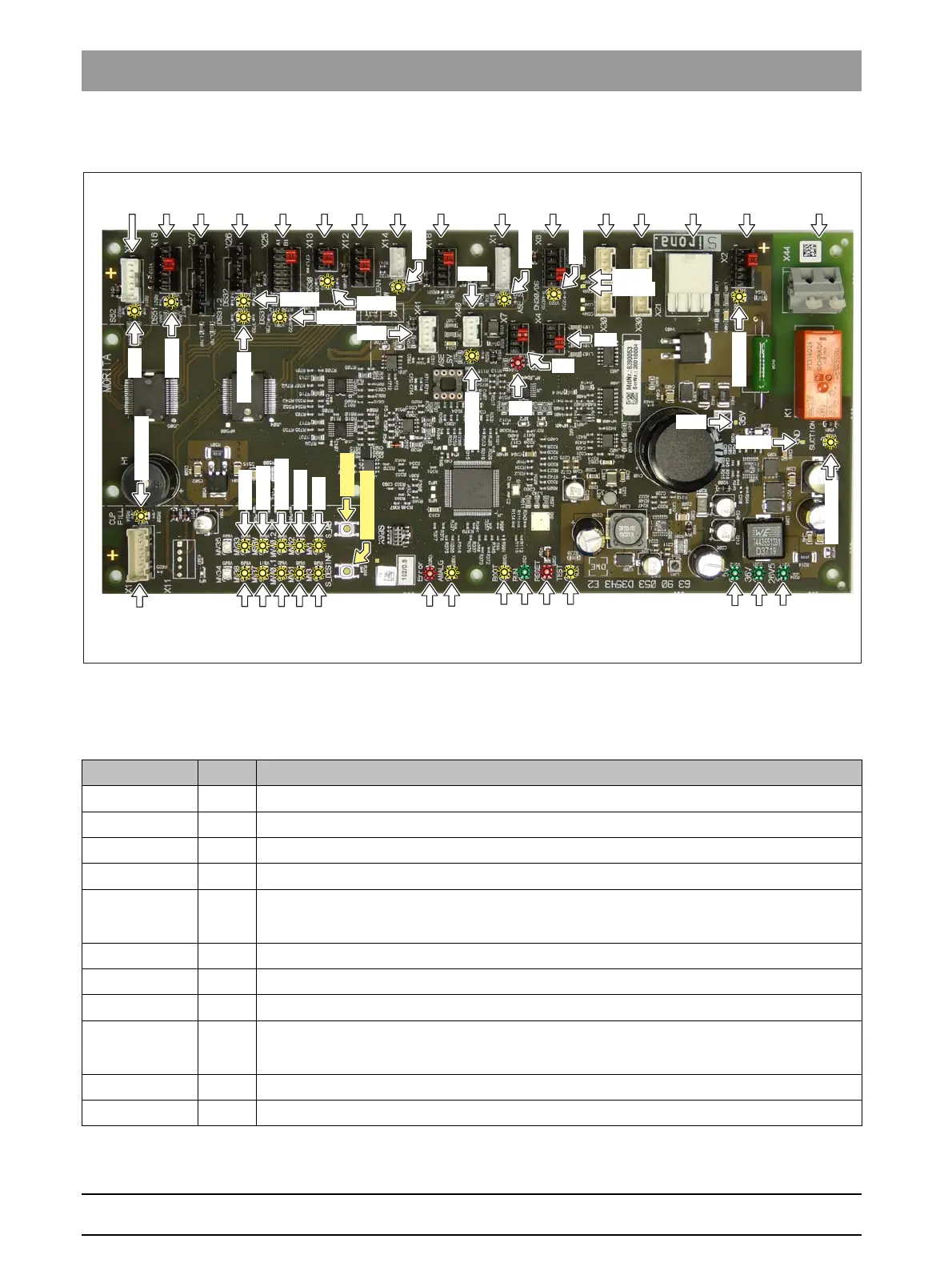

6.4.3 DWE board – Comfort water unit control
Components on the board
LEDs
LED Color Function
36 V Green 36 V input voltage
5 V Green Generated +5 V voltage
26.5 V Green Generated +26.5 V voltage
RUN Green Flashes 1x per second during normal operation
Error Red Illuminated: Error involving solenoid valves
2x flashes: Loss of communication with DSA
Reset Red Lights up while the board is performing a reset
BOOT yellow Lights up after switching on and remains lit until completion of the boot process
S3 Red Illuminated: Amalgam separator tank disassembled
AMALG yellow Illuminated: Amalgam separator 95%
Flashing: 100% full
MOTOR yellow Illuminated: Amalgam motor active
SUCTION yellow Illuminated: Suction machine active
X15 X16 X27 X26 X25 X13 X12 X14 X18 X1 X31 X30 X2X8 X21 X44
X41
X4
MOTOR
X40
ASE_SV
S3
ASE_SUC
DN30/DS
CLEAN_SW
DS30
DS31
DS32
DS31.2
SUCTION
5V
36V
26.5V
BOOT
RUN
RESET
MV33
MSVB
MV40.2
MV52
MV1
MV38
MV37 MV40
MV51
MV3
S_DESINF
S_MB
TEST
X11m
CUP FILL
36V
GND
CAN-
CAN+
DS51
S52
X7
ERROR
AMALG
