Service Manual INTEGO / INTEGO pro 5.7Safety switches
båÖäáëÜ
5.7
Safety switches

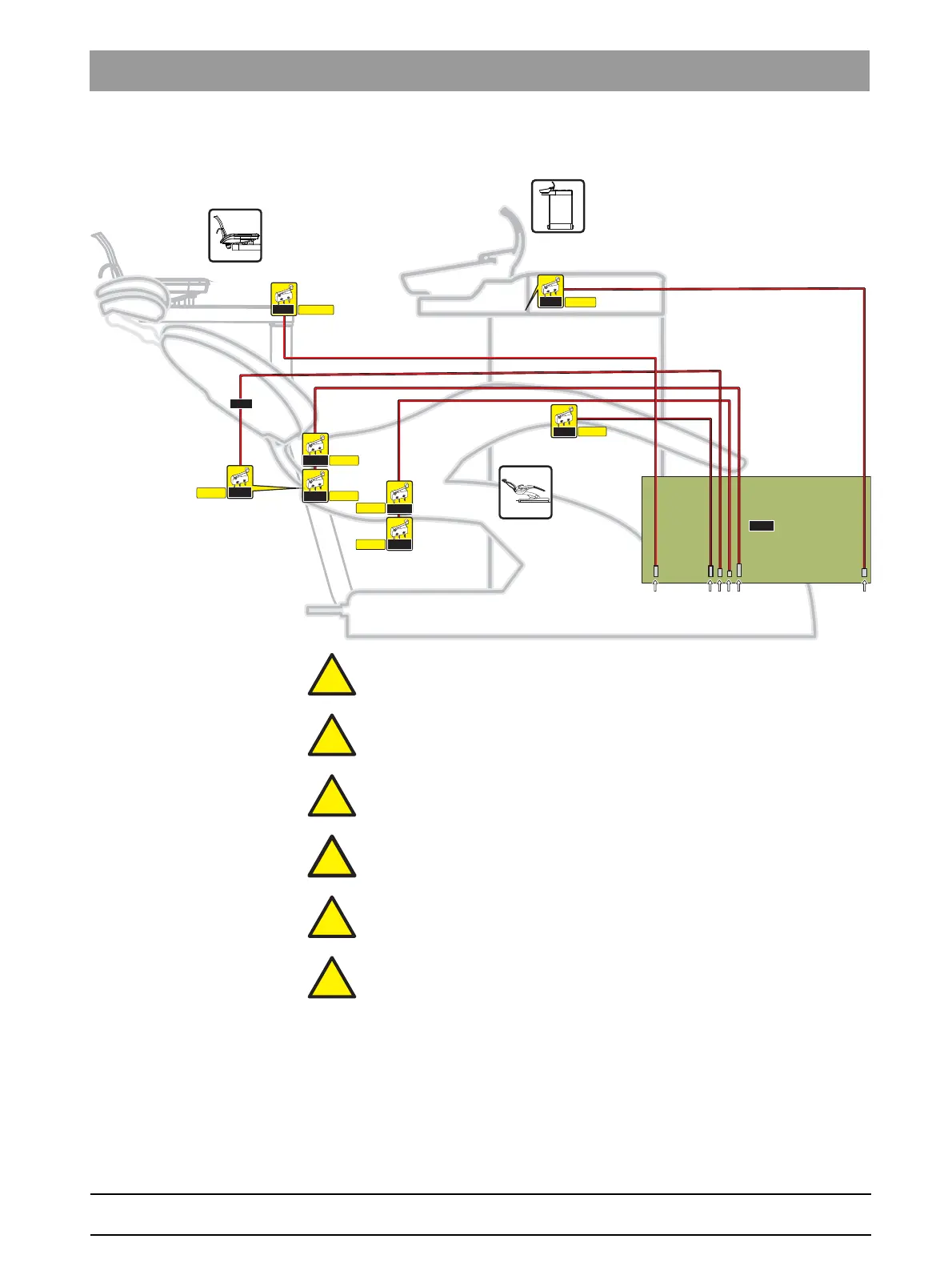

SS_2 (SS_MB) - cuspidor safety switch
LED flashes 2x: DSA SS_CODE (red)
SS_3, SS_3a (SS_HR) - lifting frame safety switch
LED flashes 5x: DSA SS_CODE (red)
SS_4 (SS_ASE) - Safety switch, assistant element
LED flashes 10x: DSA SS_CODE (red)
SS_5, SS_5a (SS_HV) - back cover safety switch
LED flashes 6x: DSA SS_CODE (red)
SS_6 (SS_FA) - footrest safety switch
LED flashes 7x: DSA SS_CODE (red)
SS_7 (SS_RL) - backrest safety switch
LED flashes 8x: DSA SS_CODE (red)
X17
X16
X13 X18 X14
SS_5
SS_5a
L443
SS_HR
SS_HR
SS_RL
SS_HV
SS_HV
SS_7
SS_MB
SS_2
SS_6
SS_FA
DSA
SS_3a
SS_3
X19
SS_4
SS_ASE
