Adjusting other joint brakes
Adjusting other joint brakes

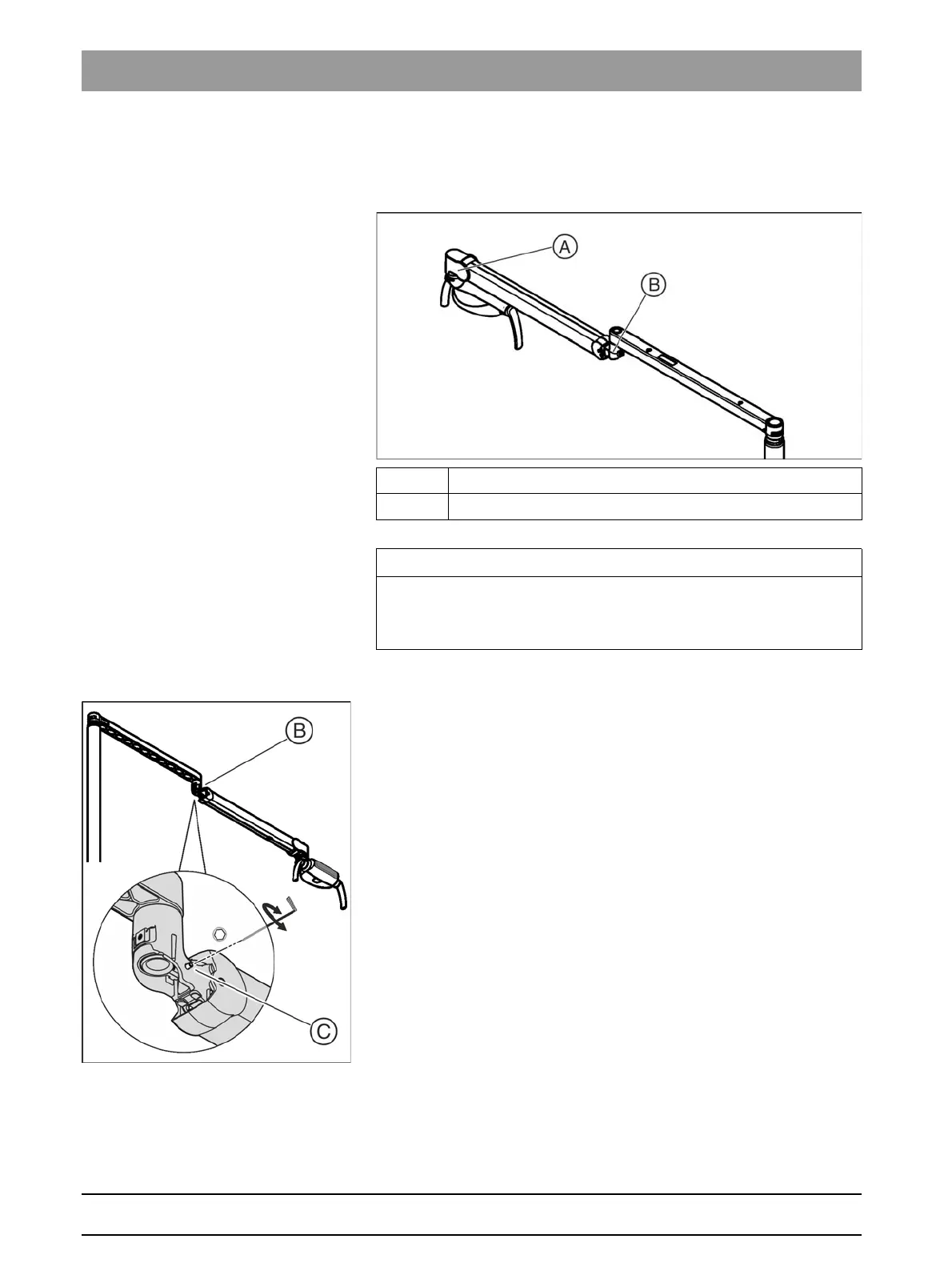

Position of the joint brakes
Adjusting the central joint brakes
➢ To increase the brake force:
Use an Allen key to tighten the screw (A).
➢ To reduce the brake force:
Use an Allen key to loosen the screw (A).
A Joint between support arm and light crown
B Joint on support arm
IMPORTANT
The brakes at positions (A) and (B) are adjusted at the factory.
➢ Only adjust the brakes at positions (A) and (B) if this is actually
required.
