Sirona Dental Systems GmbH 6Overview of modules and boards

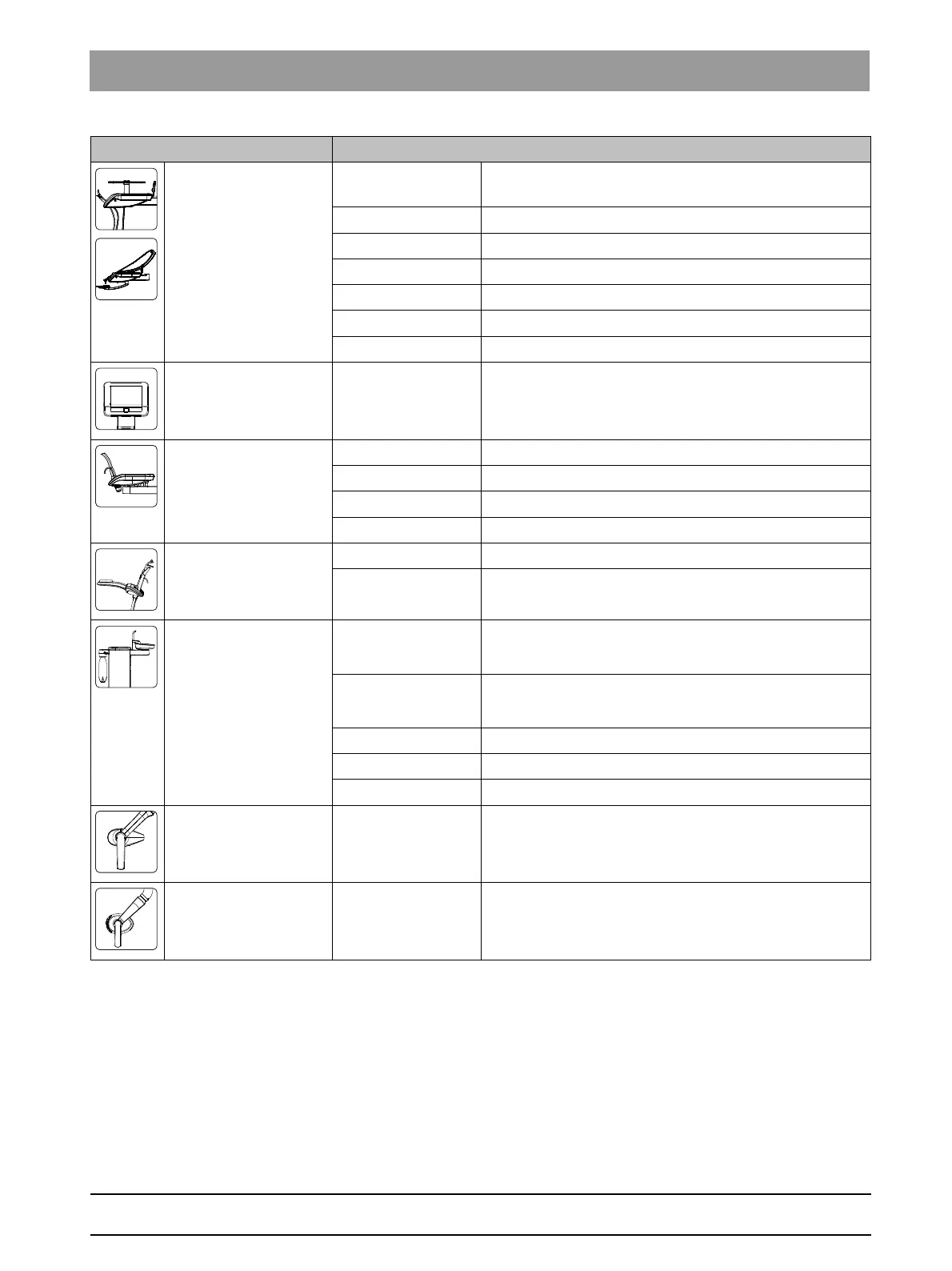

Service Manual INTEGO / INTEGO pro 6.1Locations of modules and boards
båÖäáëÜ
TS/CS dentist element DAB Dentist element control, instrument holder
detection [ → 56]
DAT Dentist element EasyPad user interface [ → 59]
DAR Relay module [ → 63]
DAI Dentist element instrument light supply [ → 65]
DAU1 TS dentist element USB connection [ → 67]
DAU2 CS dentist element USB connection [ → 68]
DAP / DAPm Instrument control [ → 69]
X-ray image viewer - X-ray image viewer
Assistant element
Comfort
DHT Assistant element user interface [ → 93]
DHI Instrument light supply [ → 89]
NOP 5 V power supply for Mini LED [ → 91]
DAU1 Assistant element USB connection [ → 67]
Assistant element
Compact
DHT Assistant element user interface [ → 93]
DAU1 Assistant element USB connection [ → 67]
Water unit Compact DHI Instrument light supply [ → 89]
* Only in conjunction with compact assistant element
NOP 5 V power supply for Mini LED [ → 91]
* Only in conjunction with compact assistant element
DWB Basic water unit control [ → 84]
DWEm Comfort water unit control, amalgam separator [ → 77]
DWV Air Venturi [ → 88]
LEDview NLV Examination light control [ → 94]
LEDlight - Examination light control
Component Board/module
