Sirona Dental Systems GmbH 6Overview of modules and boards

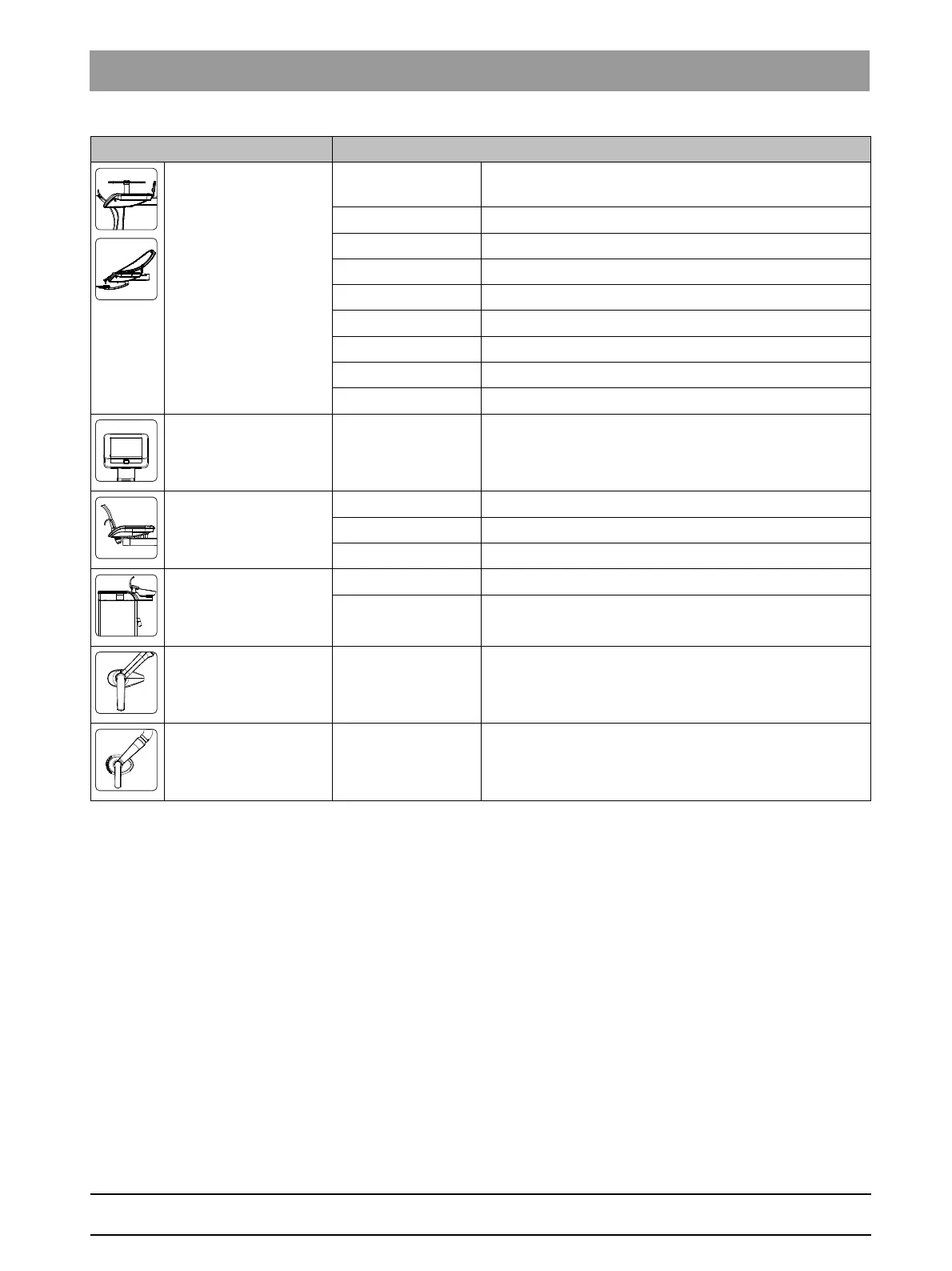

Service Manual INTEGO / INTEGO pro 6.1Locations of modules and boards
båÖäáëÜ
TS/CS dentist element DAB Dentist element control, instrument holder
detection [ → 56]
NAA Apex locator [ → 74]
NAH Apex mucosal electrode
DAT Dentist element EasyPad user interface [ → 59]
DAK Dentist element EasyTouch user interface [ → 61]
DAR Relay module [ → 63]
DAU1 TS dentist element USB connection [ → 67]
DAU2 CS dentist element USB connection [ → 68]
DAP Instrument control [ → 69]
X-ray image viewer - X-ray image viewer
Assistant element
Comfort
DHT Assistant element user interface [ → 93]
NOP 5 V power supply for Mini LED [ → 91]
DAU1 Assistant element USB connection [ → 67]
Water unitCompact DWE Comfort water unit control [ → 80]
NWM Automatic tumbler filling [ → 87]
LEDview NLV Examination light control [ → 94]
LEDlight - Examination light control
Component Board/module
