Chapter: 2. Operation

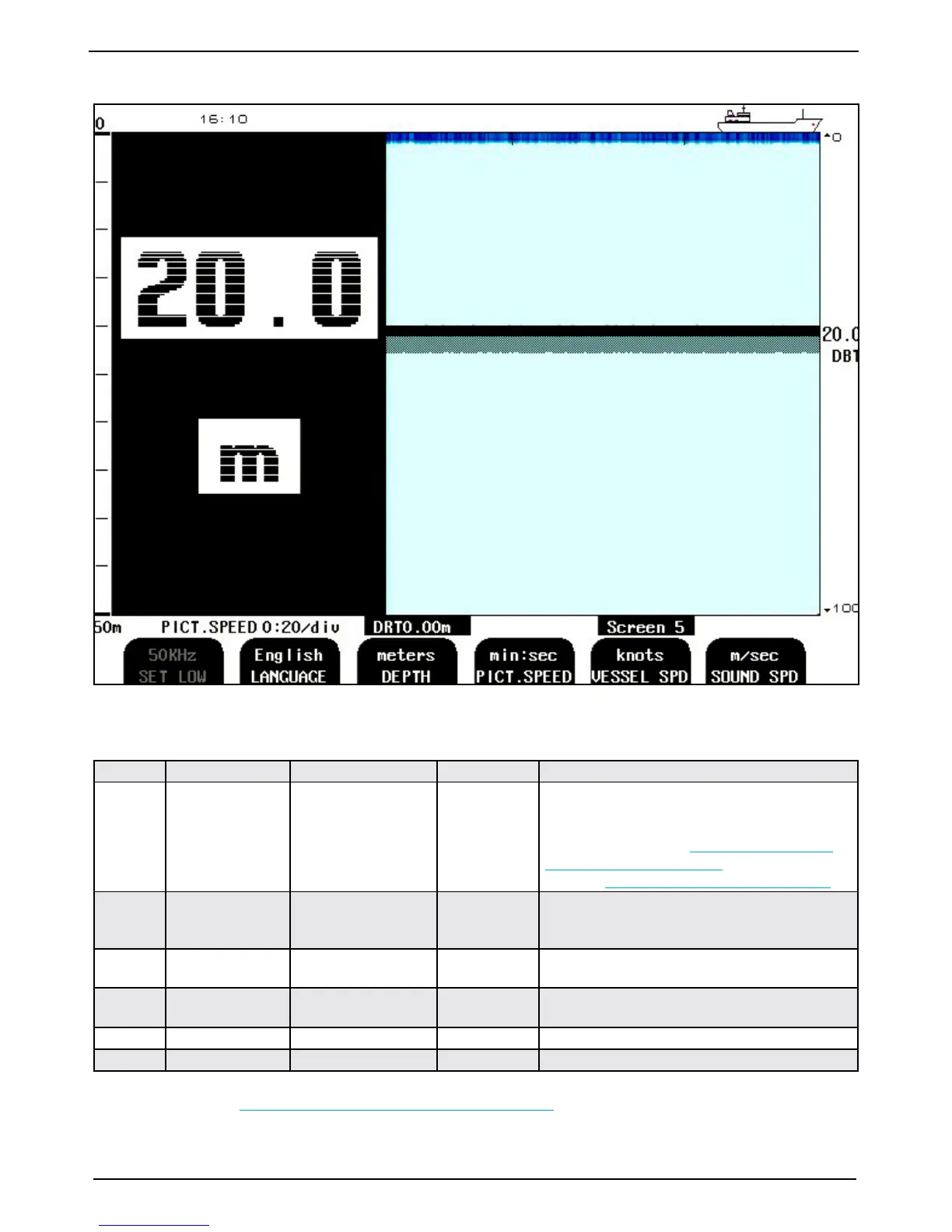

Fig. 2.6. Screen 5, Language and units of measure setup.
This screen shows the main graphic echo gram. Left hand digital indication may be enabled from screen 2.
Soft key Name Range/value Default value Description
1
SET LOW 10 - 250 kHz (24, 28,
30, 33, 38 kHz)
38 kHz Adjust indicated frequency of lower frequency
channel.
Note. Active only if 38 kHz is selected as
transducer frequency on “Fig. 2.3. Screen 2, 2nd
Operation screen.” on page 14.
Also see “Low frequency indication” on page 51.
2
LANGUAGE English, French,
Spanish, Russian,
German, Norwegian
English Screen language selection.
3
DEPTH Meters, feet, fathoms,
braccias
Meters Unit of measurement for depth.
4
PICT.SPEED Min:sec Min:sec Unit of measurement for picture speed. (See Note
below).
5
VESSEL SPD Knots, km/h, mi/h Knots Unit of measurement for vessel speed.
6
SOUND SPD m/sec, ft/sec m/sec Unit of measurement for sound speed.
Note: If a speed log is connected, on NMEA inut or pulse input, it is possible to select different “PICT.
SPEED” units. See “Language and Units of Measure” on page 51.
