Page 42 of 70
Edition: 2014.04.01
Chapter: 4. Installation
LD300 on IO board
LD400 - LD403 on terminal board
LED1 on CPU board

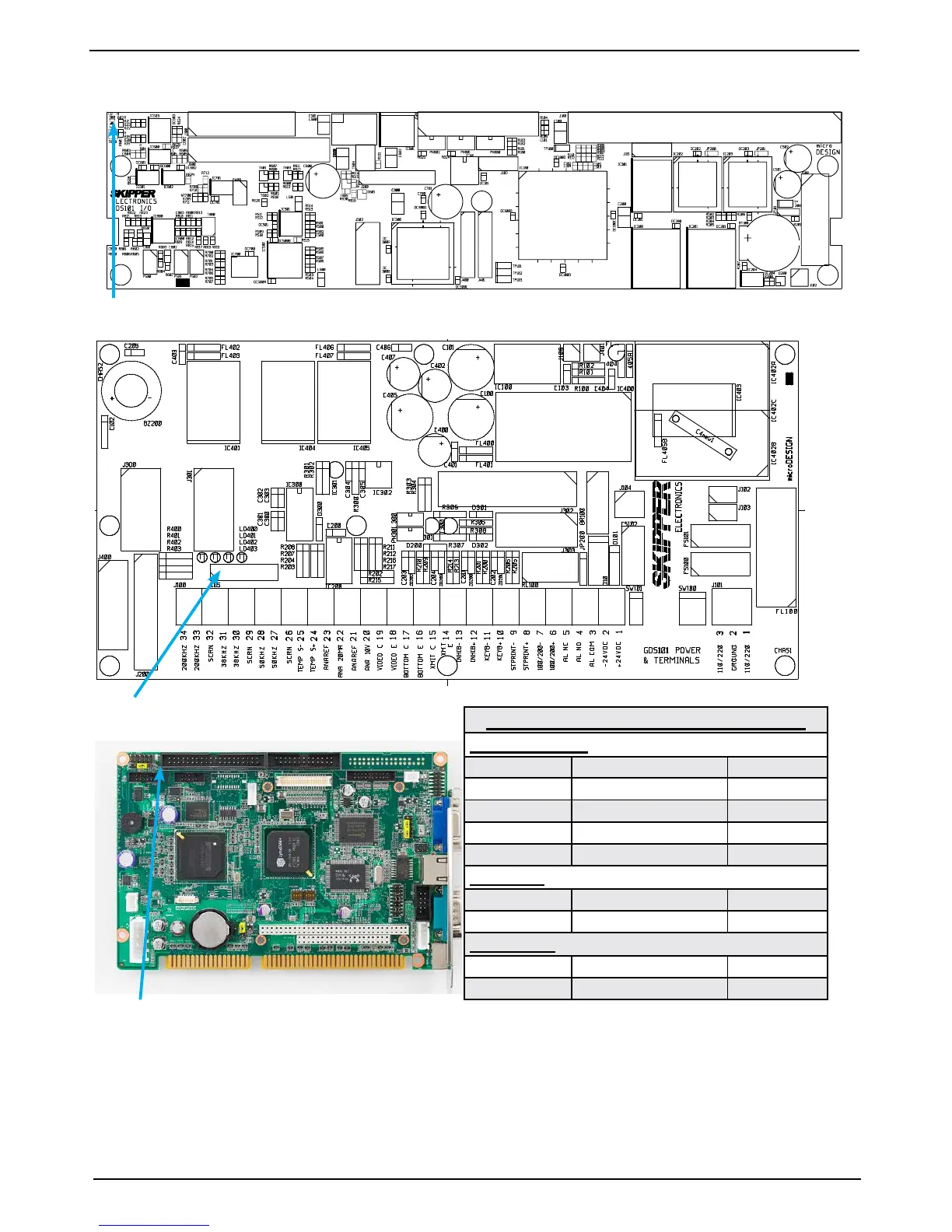

Fig. 4.6 Function LEDs, T
erminal, I/O and CPU Boards.
Power indication and function LEDs
T
erminal board
LED
Indicating
Colour
LD400
+
5 V
Green
LD401
+
12 V
Y
ellow
LD402
+
12 V
Y
ellow
LD403
+
48 V
Y
ellow
I/O board
LED
Indicating
Colour
LD300
Transceiver operation
Green
CPU board
LED
Indicating
Colour
LED1
CPU Power
Green
GDS101 Operation and Installation
SKIPPER
Electronics AS
41
43
