Skipper GDS101 - Fig. 2.11. Screen 10, Oscilloscope Screen

Page 22 of 70
Edition: 2014.04.01
Chapter: 2. Operation

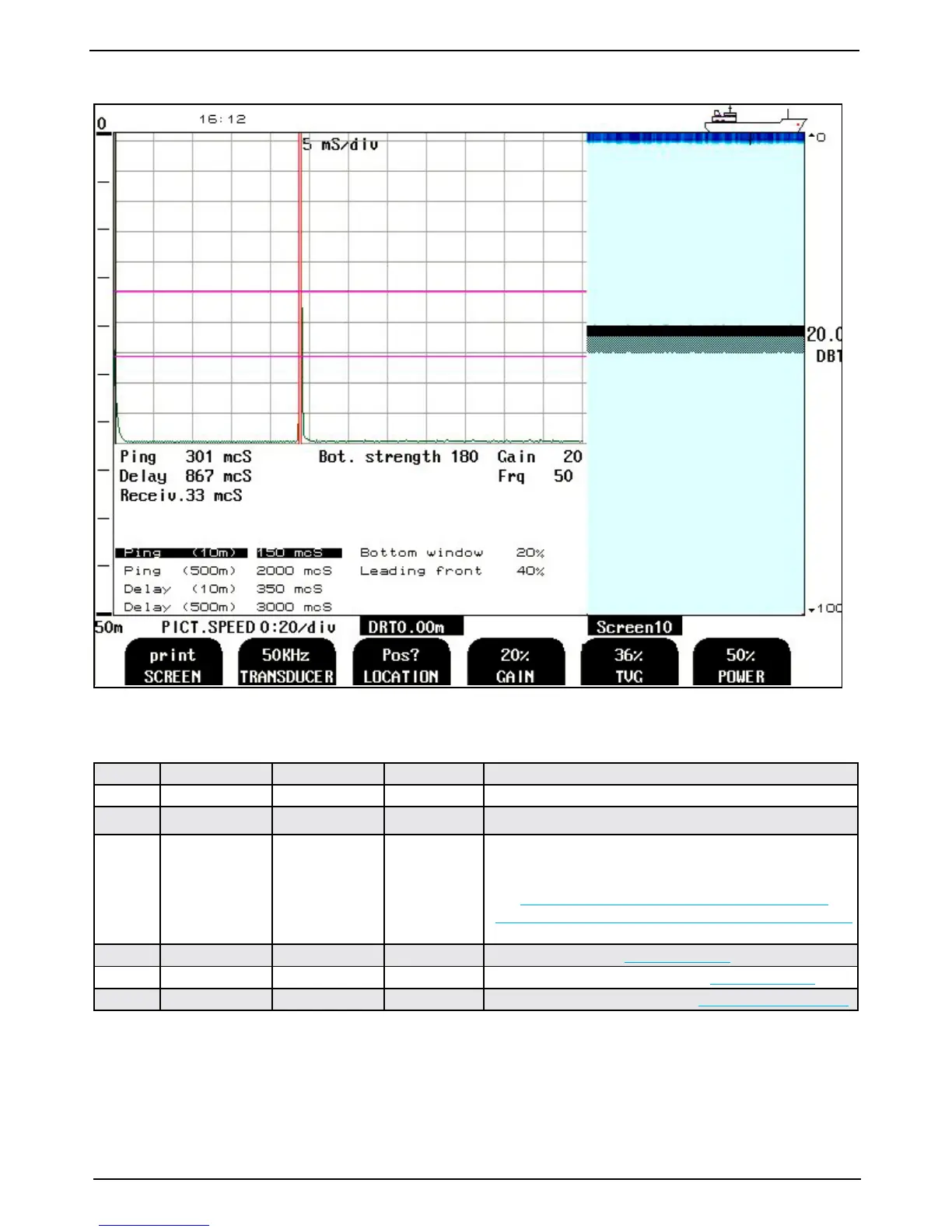

Fig. 2.11. Screen 10, Oscilloscope screen.
This screen shows receiver output versus time and half screen echo-gram.
Soft key Name Range/value Default value Description
1
SCREEN Print Print screen.
2
TRANSDUCER 38, 50, 200 kHz 50 kHz Transducer selection for soft key 3.
3
LOCATION Pos?
Not installed,
FWD, AFT,
PORT, STRB,
FWD/AFT,
PORT/STRB,
Pos? If “not installed” is selected for one of the frequencies, it will
not be available in screen 2, soft key 2.
2 transducers with transducer selector (ENS518):
See “Fig. 9.1 Transducer Selector Connection” on page 62 and
“Remote Transducer Selector FEEDB (Feedback)” on page 45.
4
GAIN 0 - 100 % 20 % Gain adjustment. See “Gain” on page 25.
5
TVG 0 - 100 % 36 % Time Variable Gain adjustment. See “TVG” on page 25.
6
POWER 1 - 100 % 50 % Transmitter power adjustment. See “Output Power” on page 25.
