Page 8 of 70
Edition: 2014.04.01
Chapter: 1. Introduction
Navigator
Computer system
Cabinet
Analogue depth information
T
ransducer
junction box
0 - 10V / 4-20 mA
230/115 V
AC/24 VDC
2 x 2.5 sq. mm.
Screened
Y
ard Supply
NMEA 0183
NMEA 0183
NMEA 0183
(RS-232 C)
Superstructure
Hull
External alarm
Standard Supply exc
ept Y
ard Supply cables
1 pair each
xducer
,
1.5 mm 0-100 m cable
2.5 mm 100 - 300 m cable
screened
Y
ard Supply
Optional external keyboard
Optional remote
VGA or
L
CD monitor
Remote transducer
selector
100/200 ppnm
Steel
pipe
(
Y
ard Supply)
T
ransducer tank
NMEA 0183
IR301
Depth repeater
External printer
Speed log
Recording
of history to
Compact Flash

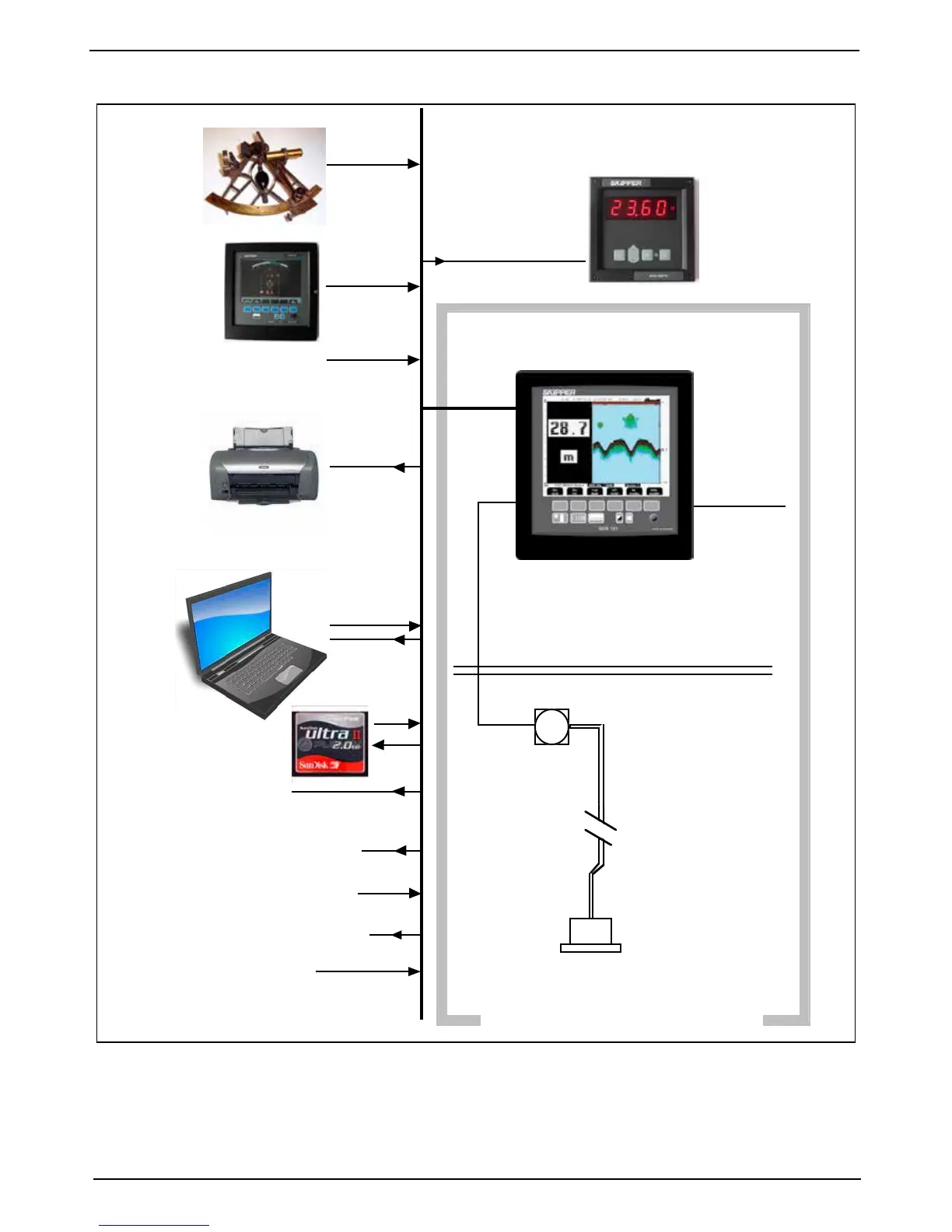

Fig. 1.2 System Diagram
GDS101 Operation and Installation
SKIPPER
Electronics AS
7
9
