Page 49 of 70
Edition: 2014.04.01
Chapter: 4. Installation

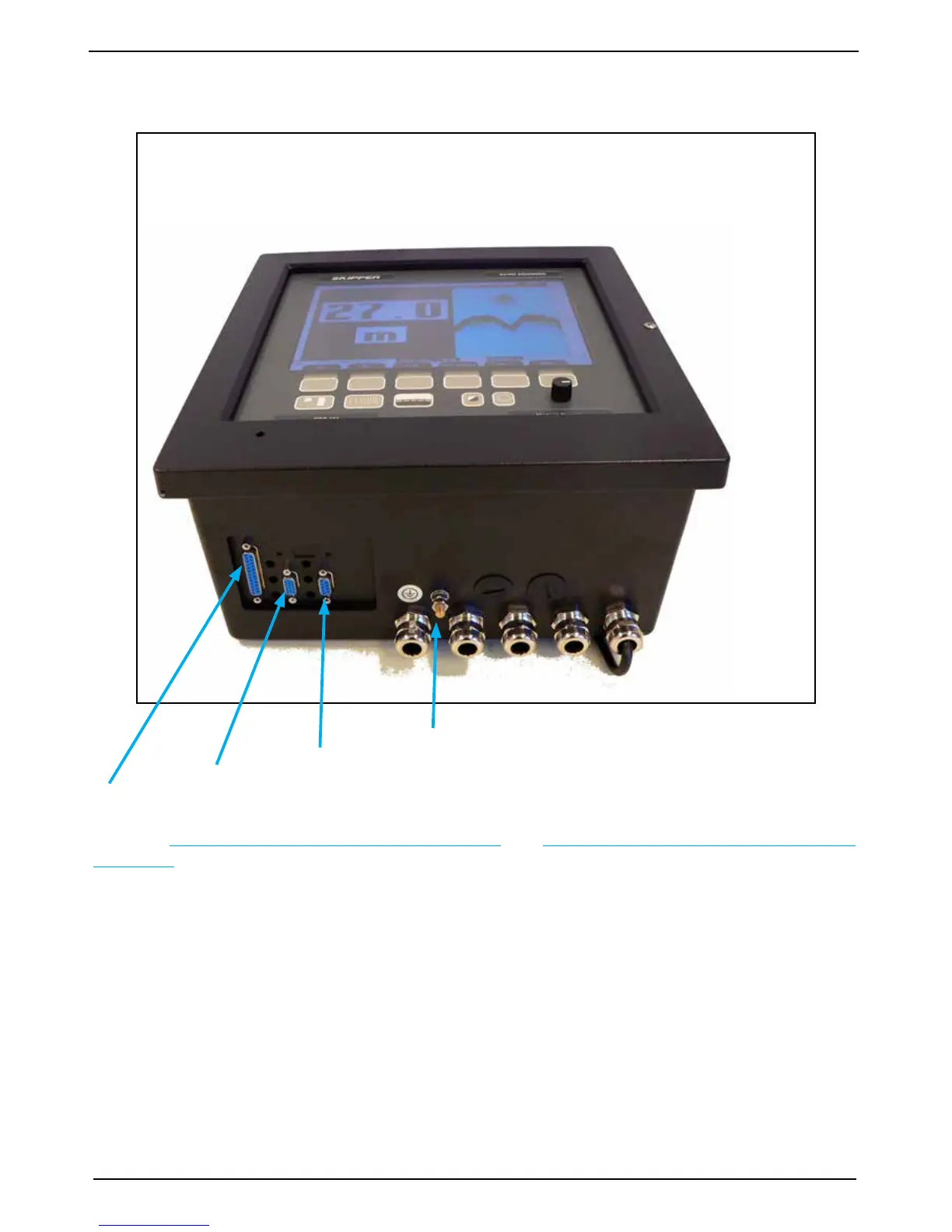

External Interface Ports
Ground Stud.
5 x PG 13.5 cable entry 10-12 mm.
XJ303: NMEA
ports D-type 9 pin female.
XCN6: VGA
terminal HDD D-type 15 pin female.
XCN3: Printer port D-type 25 pin female.
Also, see “
Fig. 4.9. NMEA
connector XJ303.” on page 46
and “
Fig. 4.10. Data Communication Interfaces.”
on page 47.
Fig. 4.12. External Interface Ports
GDS101 Operation and Installation
SKIPPER
Electronics AS
48
50
