Boom
3-26
31211015 6036, 6042, 8042, 10042, 10054

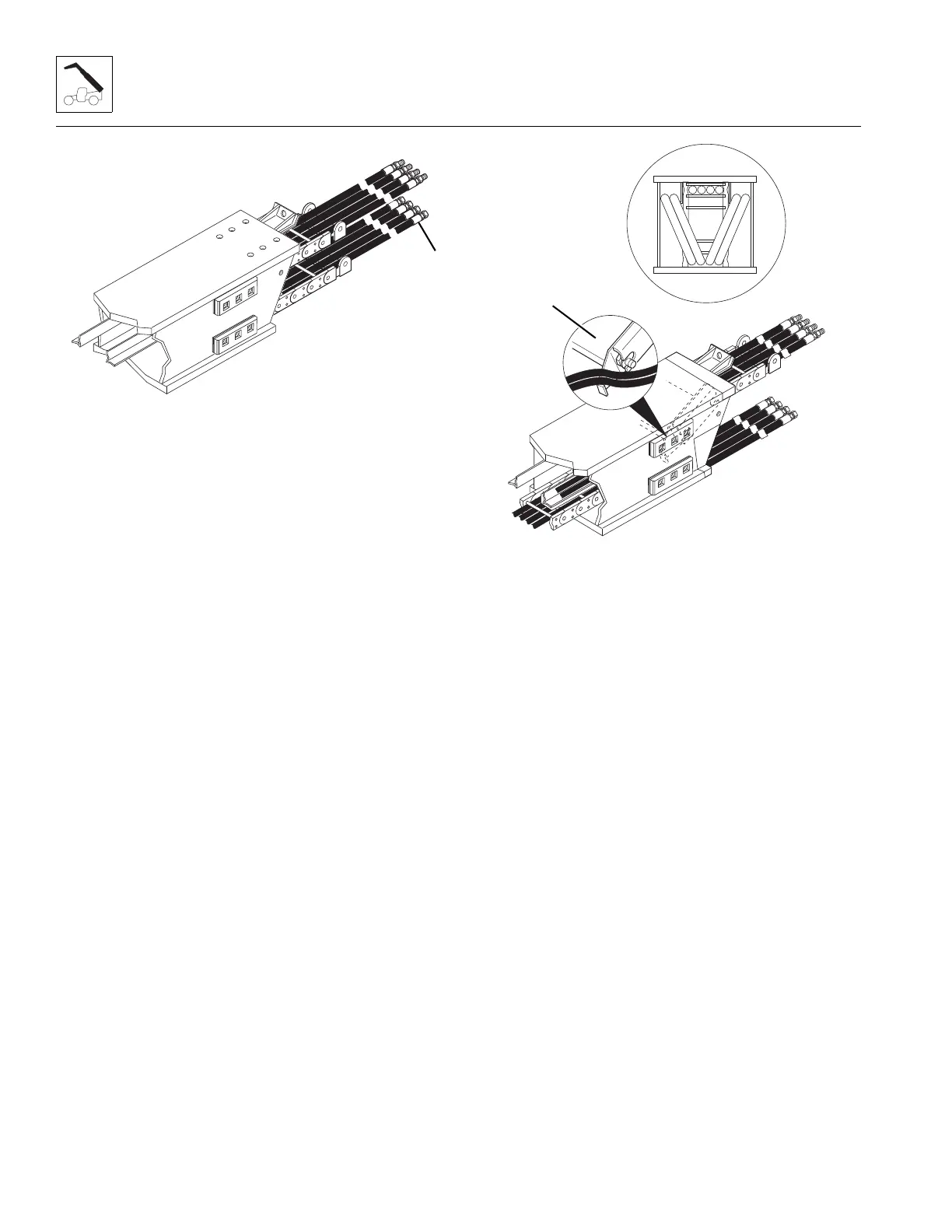

5. Fold the hose carrier assembly in half, ensure the female
ends (33) of the hoses are on the bottom, and carefully
slide the folded hose carrier into the fourth boom
section.
6. Line up the lower mounting holes in the hose carrier
assembly with the holes in the bottom of the fourth
boom section. Secure with the previously used
hardware.
7. Lift the upper part of the hose carrier assembly and
place the hose carrier guide under the hose carrier with
the angled guides toward the front. Slide the hose
guide into the fourth boom section, and place the front
notches onto the rear wear pad mounting capscrew. Be
sure the notch in the side of the hose guide is under the
flat washer on each side of the boom.
8. Rotate the back of the hose guide up toward the top of
the fourth boom section as far as it will go. Tighten the
rear wear pad mounting capscrews enough to hold the
hose guide.
9. With the hose guide tilted up in the back, insert the
female ends of the two left side hoses (from the hose
carrier) one at a time over the top of the angled
guide (34) on the front side of the hose guide. Push the
hoses into the hose channel on the left side of the
fourth boom section and down to the front of the boom
section. Repeat this procedure for the two right side
hoses into the hose channel on the right side of the
boom.
10. Insert a capscrew through the hole in the fourth boom
section. Secure the hose guide in place with a flat
washer and locknut. Torque to 28 - 34 lb-ft (38 - 46 Nm).
11. Run the hose carrier out and in by hand to check for
interference.
Note: DO NOT allow the hydraulic hoses to cross inside the
boom.
12. At the front of the boom, pull the previously labeled
hydraulic hoses out the opening in the back of the
boom head. Let the hoses hang out of the boom head.
13. Grease the sections of the boom in areas where the
wear pads will slide.
14. Using a suitable sling, lift the fourth boom section.
While guiding the hoses into the third boom section,
carefully slide the fourth boom section into the front of
the third boom section.
To Next Page
