Electrical System
9-22
31211015 6036, 6042, 8042, 10042, 10054
b. Connect
1. Connect Positive battery cable (3).
2. Connect Negative battery cable (2).
3. Close and secure engine cover.
4. Remove Do Not Operate Tag from ignition key switch
and steering wheel.

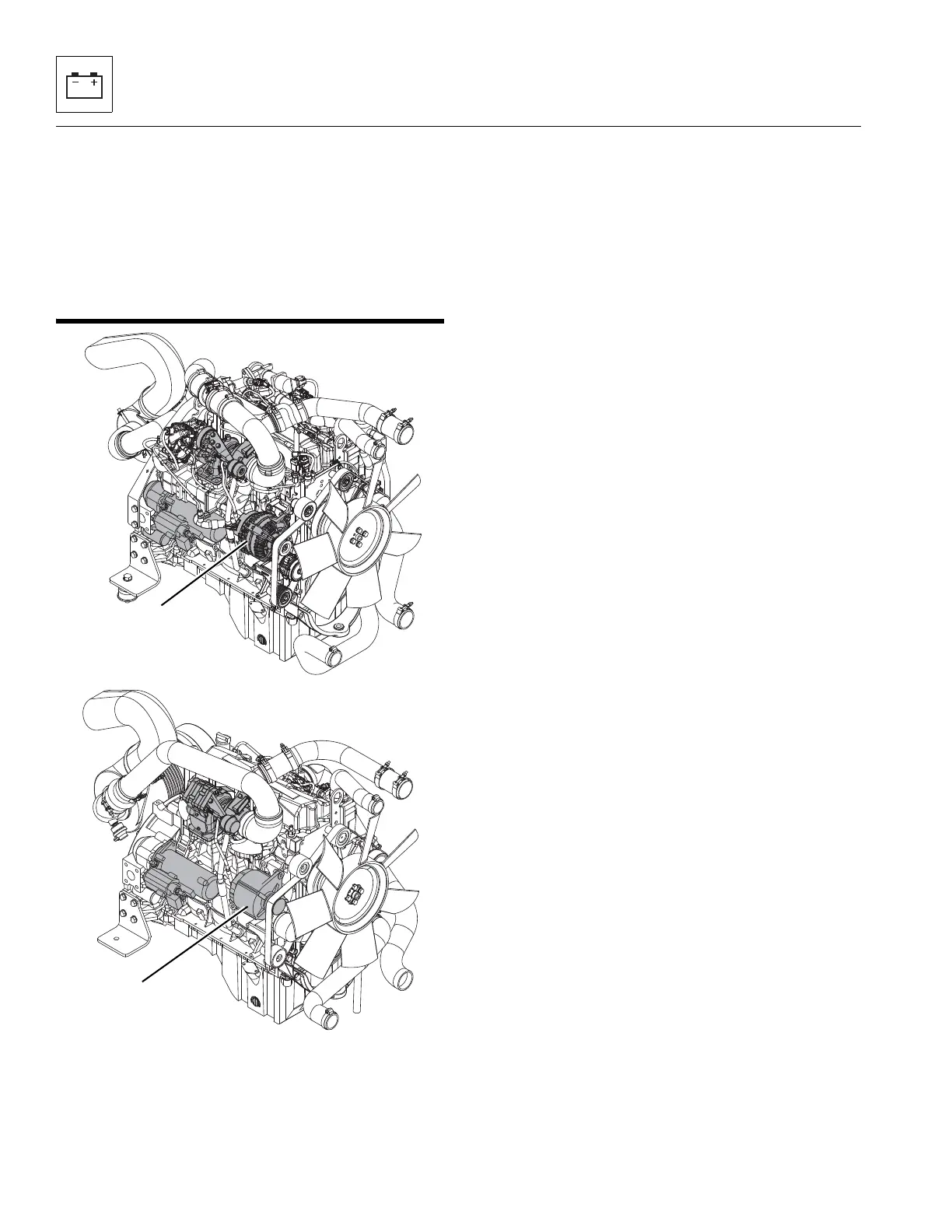

9.9 CHARGING CIRCUIT
Before using a battery charger, an attempt can be made to
recharge the battery by jump-starting the machine (Refer to
the appropriate Operation & Safety Manual). Allow the
engine to run, which will enable the
alternator (2) to charge the battery.
If the engine alternator charging warning indicator
illuminates, perform the following checks:
1. Check all battery cable connections at the battery, and
verify that they are clean and tight.
2. Check the external alternator wiring and connections,
and verify that they are in good condition.
3. Check the fan belt condition and tension.
4. Run the engine and check the alternator for noise. A
loose drive pulley, loose mounting hardware, worn or
dirty internal alternator bearings, a defective stator or
defective diodes can cause noise. Replace a worn or
defective alternator.
9.9.1 Alternator
a. Alternator Removal
1. Place a Do Not Operate Tag on both the ignition key
switch and the steering wheel, stating that the machine
should not be operated.
2. Open the rear and side engine doors. Allow the system
fluids to cool.
3. Properly disconnect the battery. Refer Section 9.8,
“Battery”, for procedure.
4. Install a drive ratchet into the square hole in the
serpentine belt tensioner bracket.
5. While lifting the automatic belt tensioner away from the
belt, remove the fan serpentine belt.
Note: Record how the alternator is installed to ensure correct
installation later.
6. Label and disconnect the wire leads attached to the
alternator.
7. Remove the lower mounting capscrew securing the
alternator to the lower mounting hole on the engine.
8. While supporting the alternator with one hand, remove
the upper (longer) mounting hardware from the upper
alternator mount. Remove the alternator from the
machine.
b. Alternator Installation
1. Position the alternator and align with the upper
alternator mount on the engine bracket. Insert the
upper (longer) mounting hardware through the
alternator mount. Thread the longer capscrew into the
alternator front mount. DO NOT tighten completely at
this time.
2. Align the lower alternator mount hole with the lower
mounting bracket on the engine, and insert the lower
2
2
IF EQUIPPED FOR ULS
IF EQUIPPED FOR LS
To Next Page
