Skytrak 8042 - O-Ring Face Seal (ORFS)

General Information and Specifications
2-41
6036, 6042, 8042, 10042, 10054 31211015

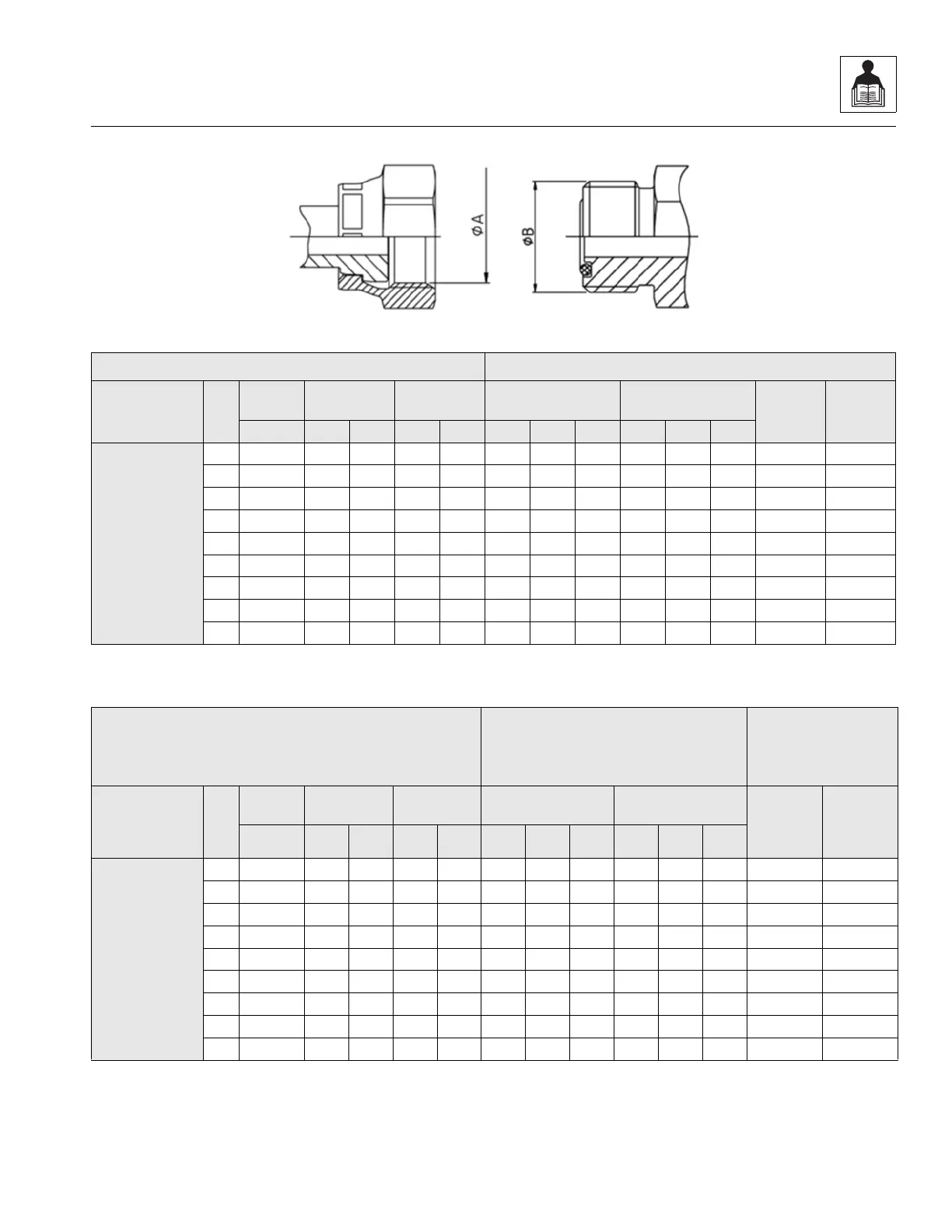

a. O-ring Face Seal (ORFS)
STEEL
ALUMINUM/BRASS
MAE9150
TYPE/FITTING IDENTIFICATION
TORQUE
Material
Dash
Size
Thread
Size
ØA* ØB* [Ft-Lb] [Nm]
Tube
Nuts
Swivel &
Hose Ends
(UNF) (in) (mm) (in) (mm) Min Nom Max Min Nom Max
STEEL FITTINGS
WITH
STEEL MATING
COMPONENTS;
UN-LUBRICATED
THREADS
4 9/16-18 0.51 13.00 0.56 14.20 18 19 20 25 26 27 1/4 to 1/2 1/2 to 3/4
6 11/16-16 0.63 15.90 0.69 17.50 30 32 33 40 43 45 1/4 to 1/2 1/2 to 3/4
8 13/16-16 0.75 19.10 0.81 20.60 40 42 44 55 57 60 1/4 to 1/2 1/2 to 3/4
10 1-14 0.94 23.80 1.00 25.40 60 63 66 81 85 89 1/4 to 1/2 1/2 to 3/4
12 1 3/16-12 1.11 28.20 1.19 30.10 85 90 94 115 122 127 1/4 to 1/2 1/2 to 3/4
16 1 7/16-12 1.34 34.15 1.44 36.50 110 116 121 149 157 164 1/4 to 1/2 1/2 to 3/4
20 1 11/16-12 1.59 40.50 1.69 42.90 150 158 165 203 214 224 1/4 to 1/2 1/2 to 3/4
24 2-12 1.92 48.80 2.00 50.80 230 242 253 312 328 343 1/4 to 1/2 1/2 to 3/4
32 2 1/2-12 2.43 61.67 2.50 63.50 375 394 413 508 534 560 1/4 to 1/2 1/2 to 3/4
NOTE:
* ØA an d Ø B t hre ad di me ns io ns for refer en ce on ly.
TYPE/FITTING IDENTIFICATION
TORQUE
FLATS FROM
WRENCH
RESISTANCE
(F.F.W.R)**
Material
Dash
Size
Thread
Size
ØA* ØB* [Ft-Lb] [Nm]
Tube
Nuts
Swivel &
Hose Ends
(UNF) (in) (mm) (in) (mm) Min Nom Max Min Nom Max
ALUMINUM/BRASS
FITTINGS OR
ALUMINUM/BRASS
MATING
COMPONENT;
UN-LUBRICATED
THREADS
4 9/16-18 0.51 13.00 0.56 14.20 12 13 13 16 18 18 1/4 to 1/2 1/2 to 3/4
6 11/16-16 0.63 15.90 0.69 17.50 20 21 22 27 28 30 1/4 to 1/2 1/2 to 3/4
8 13/16-16 0.75 19.10 0.81 20.60 26 28 29 35 38 39 1/4 to 1/2 1/2 to 3/4
10 1-14 0.94 23.80 1.00 25.40 39 41 43 53 56 58 1/4 to 1/2 1/2 to 3/4
12 1 3/16-12 1.11 28.20 1.19 30.10 55 58 61 75 79 83 1/4 to 1/2 1/2 to 3/4
16 1 7/16-12 1.34 34.15 1.44 36.50 72 76 79 98 103 107 1/4 to 1/2 1/2 to 3/4
20 1 11/16-12 1.59 40.50 1.69 42.90 98 103 108 133 140 146 1/4 to 1/2 1/2 to 3/4
24 2-12 1.92 48.80 2.00 50.80 12 13 13 16 18 18 1/4 to 1/2 1/2 to 3/4
32 2 1/2-12 2.43 61.67 2.50 63.50 20 21 22 27 28 30 1/4 to 1/2 1/2 to 3/4
NOTE:
* ØA and ØB thread dimensions for reference only.
** Refer to Section 2.9.15, “FFWR and TFFT Methods,” for FFWR procedure requirements.
