Skytrak 8042 - Bulkhead Fittings (BH) - Metric

General Information and Specifications
2-46
31211015 6036, 6042, 8042, 10042, 10054

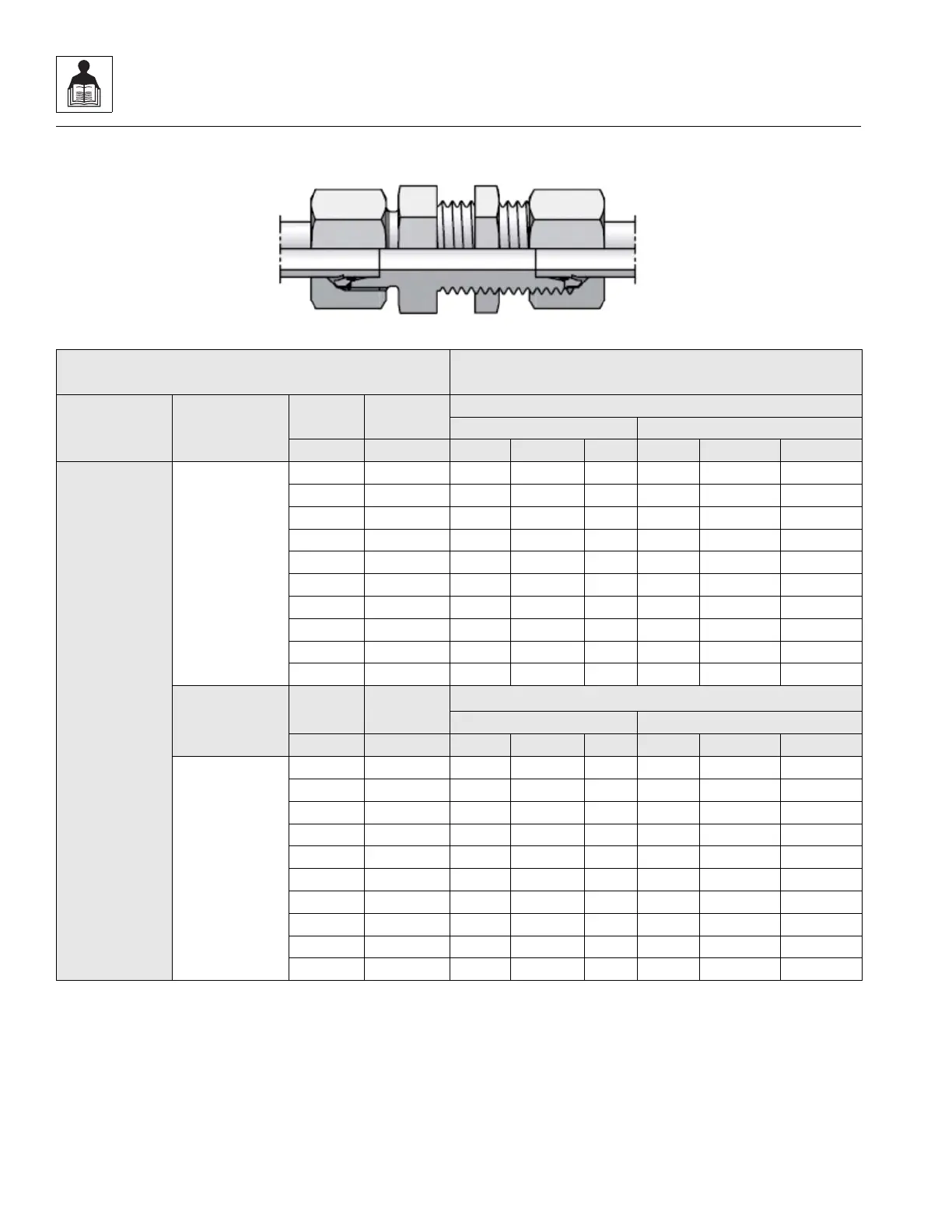

b. Bulkhead Fittings (BH) - METRIC
TYPE/FITTING IDENTIFICATION
FASTENING JAM NUT
FOR BULKHEAD CONNECTORS
Material Type
Connecting
Tube O.D.
Thread
M Size
Torqu e
[Ft-Lb] [Nm]
(mm) (metric) Min Nom Max Min Nom Max
STEEL
FITTINGS
DIN 24° CONE
FLARELESS BITE
(MBTL) BULKHEAD
FITTING
6 M12 x 1.5 14 15 16 19 20 22
8 M14 x 1.5 17 18 19 23 24 26
10 M16 x 1.5 22 23 24 30 31 33
12 M18 x 1.5 35 37 39 47 50 53
15 M22 x 1.5 44 47 50 60 64 68
18 M26 x 1.5 70 75 80 95 102 108
22 M30 x 2 115 120 125 156 163 169
28 M36 x 2 150 157 164 203 213 222
35 M45 x 2 155 162 169 210 220 229
42 M52 x 2 220 230 240 298 312 325
Type
Connecting
Tube O.D.
Thread
M Size
Torqu e
[Ft-Lb] [Nm]
(mm)
(metric) Min Nom Max Min Nom Max
DIN 24° CONE
FLARELESS BITE
(MBTS) BULKHEAD
FITTING
6 M14 x 1.5 17 15 16 23 20 22
8 M16 x 1.5 22 18 19 30 24 26
10 M18 x 1.5 35 23 24 47 31 33
12 M20 x 1.5 40 35 37 54 47 50
14 M22 x 1.5 44 47 50 60 64 68
16 M24 x 1.5 70 75 80 95 102 108
20 M30 x 2 115 120 125 156 163 169
25 M36 x 2 150 157 164 203 213 222
30 M42 x 2 155 162 169 210 220 229
38 M52 x 2 220 230 240 298 312 325
MAE9180
