Skytrak 8042 - Metric Flat Face Port (MFF) S Series Table

General Information and Specifications
2-60
31211015 6036, 6042, 8042, 10042, 10054

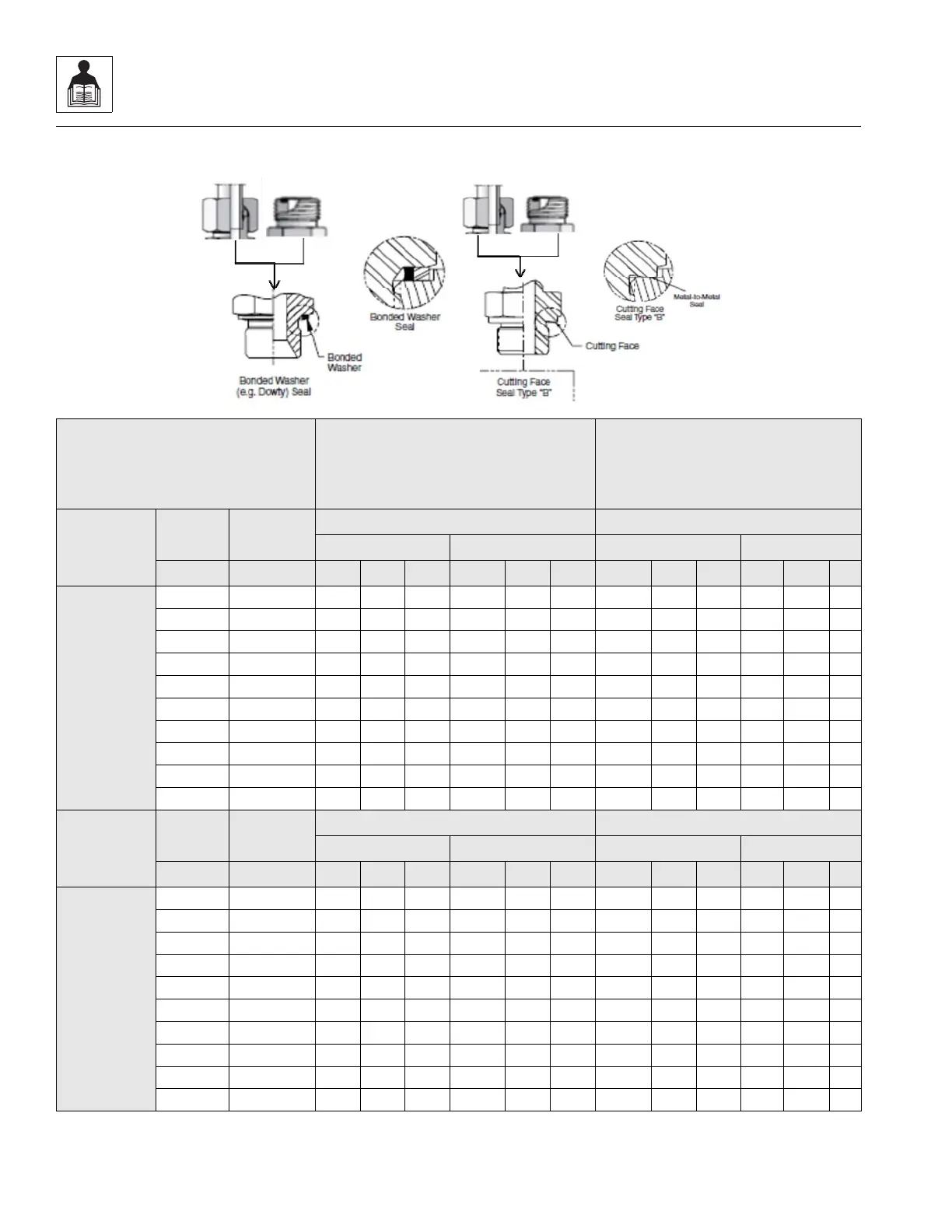

d. Metric Flat Face Port (MFF) S Series - Table 1 of 3
TYPE/FITTING
IDENTIFICATION
FORM A (SEALING WASHER)
STUD ENDS
WITH (ORFS) OR S SERIES DIN (MBTS)
OPPOSITE END
FORM B (CUTTING FACE)
STUD ENDS
WITH (ORFS) OR S SERIES DIN (MBTS)
OPPOSITE END
Material
Thread
M Size
Connecting
Tube O.D.
Torqu e Torqu e
[Ft-Lb] [Nm] [Ft-Lb] [Nm]
(metric) (mm) Min Nom Max Min Nom Max Min Nom Max Min Nom Max
STEEL FITTINGS
WITH STEEL
MATING
COMPONENTS;
UN-LUBRICATED
THREADS
M12x1.5 6 15 16 17 20 22 23 26 28 29 35 38 39
M14x1.5 8 26 28 29 35 38 39 41 43 45 55 58 61
M16x1.5 10 33 35 36 45 47 49 52 55 57 70 75 77
M18x1.5 12 41 43 45 55 58 61 81 85 89 110 115 121
M20x1.5 14 41 43 45 55 58 61 111 117 122 150 159 165
M22x1.5 16 48 51 53 65 69 72 125 132 138 170 179 187
M27x2 20 66 70 73 89 95 99 199 209 219 270 283 297
M33x2 25 111 117 122 150 159 165 302 317 332 410 430 450
M42x2 30 177 186 195 240 252 264 398 418 438 540 567 594
M48x2 38 214 225 235 290 305 319 516 542 568 700 735 770
Material
Thread
M Size
Connecting
Tube O.D
Torqu e Torqu e
[Ft-Lb] [Nm] [Ft-Lb] [Nm]
(metric) (mm) Min Nom Max Min Nom Max Min Nom Max Min Nom Max
ALUMINUM/
BRASS FITTINGS
OR ALUMINUM/
BRASS
MATING
COMPONENTS;
UN-LUBRICATED
THREADS
M12x1.5 6 10 11 11 14 15 15 17 18 19 23 24 26
M14x1.5 8 17 18 19 23 24 26 27 28 29 37 38 39
M16x1.5 10 21 22 23 28 30 31 34 36 37 46 49 50
M18x1.5 12 27 28 29 37 38 39 53 56 58 72 76 79
M20x1.5 14 27 28 29 37 38 39 72 76 79 98 103 107
M22x1.5 16 31 33 34 42 45 46 81 86 90 110 117 122
M27x2 20 43 45 47 58 61 64 129 136 142 175 184 193
M33x2 25 72 76 79 98 103 107 196 206 216 266 279 293
M42x2 30 115 121 127 156 164 172 259 272 285 351 369 386
M48x2 38 139 146 153 188 198 207 335 352 369 454 477 500
MAE9320
MAE9330
