Skytrak 8042 - Boom System Component Terminology

Boom
3-3
6036, 6042, 8042, 10042, 10054 31211015
3.1 BOOM SYSTEM COMPONENT
TERMINOLOGY

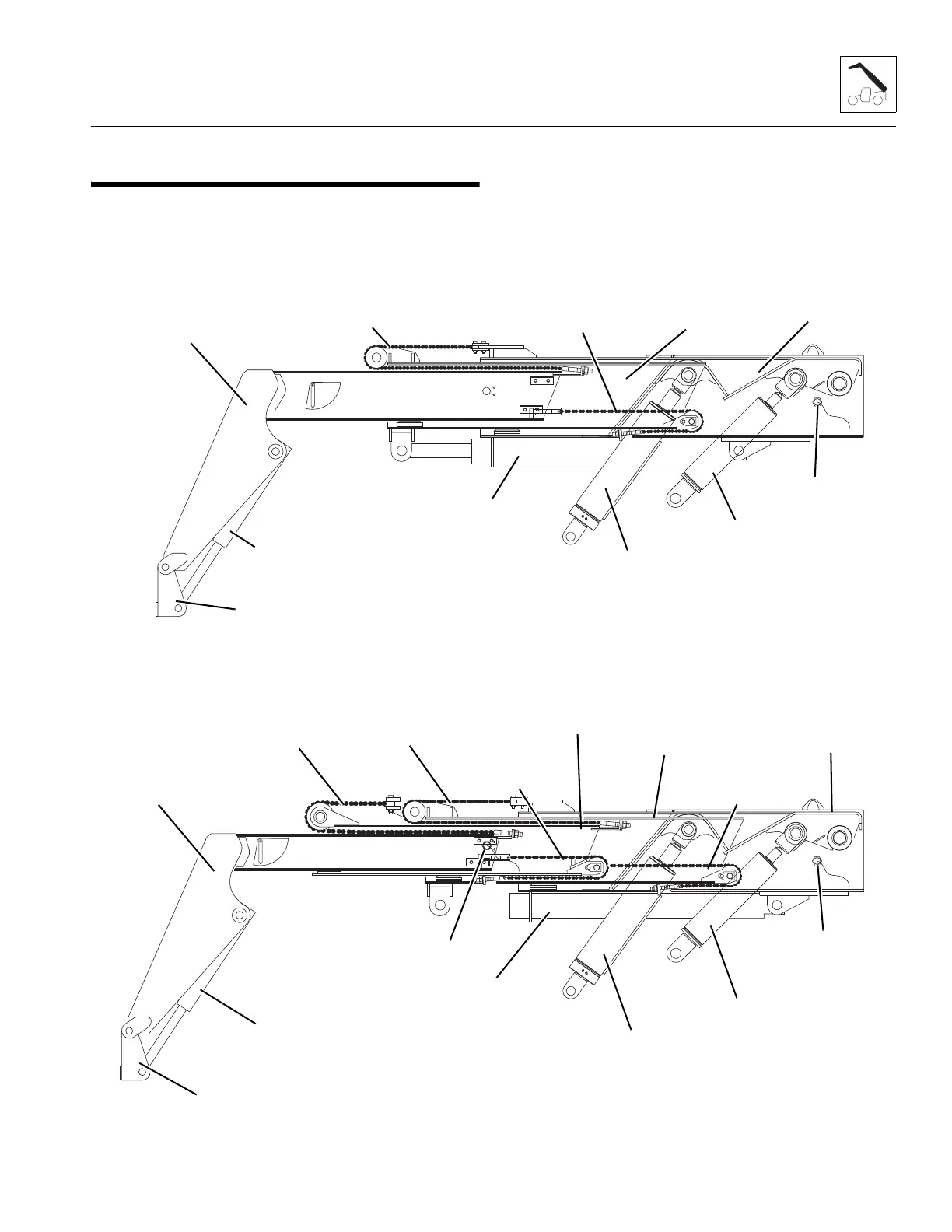

The following illustrations identify the components that are
referred to throughout this section.
MH4351
THIRD BOOM
SECTION
BOOM EXTEND
CHAINS
BOOM RETRACT
CHAIN
SECOND BOOM
SECTION
FIRST BOOM
SECTION
COMPENSATION
CYLINDER
FOURTH BOOM
SECTION
QUICK COUPLER
EXTEND/RETRACT
CYLINDER
LIFT/LOWER
CYLINDER
TILT CYLINDER
BOOM PROXIMITY
SENSOR
COMPENSATION
CYLINDER
QUICK COUPLER
EXTEND/RETRACT
CYLINDER
LIFT/LOWER
CYLINDER
TILT CYLINDER
BOOM PROXIMITY
SENSOR
THIRD BOOM
SECTION
SECOND & THIRD
BOOM SECTION
EXTEND CHAINS
SECOND BOOM
SECTION
FIRST BOOM
SECTION
FOURTH BOOM
SECTION EXTEND
CHAIN
FOURTH BOOM
SECTION RETRACT
CHAIN
SECOND & THIRD
BOOM SECTION
RETRACT CHAIN
THREE SECTION BOOM (6036, 6042, 8042 & 10042)
FOUR SECTION BOOM (10054)
BOOM PROXIMITY
SENSOR
