Electrical System
9-44
31211015 6036, 6042, 8042, 10042, 10054

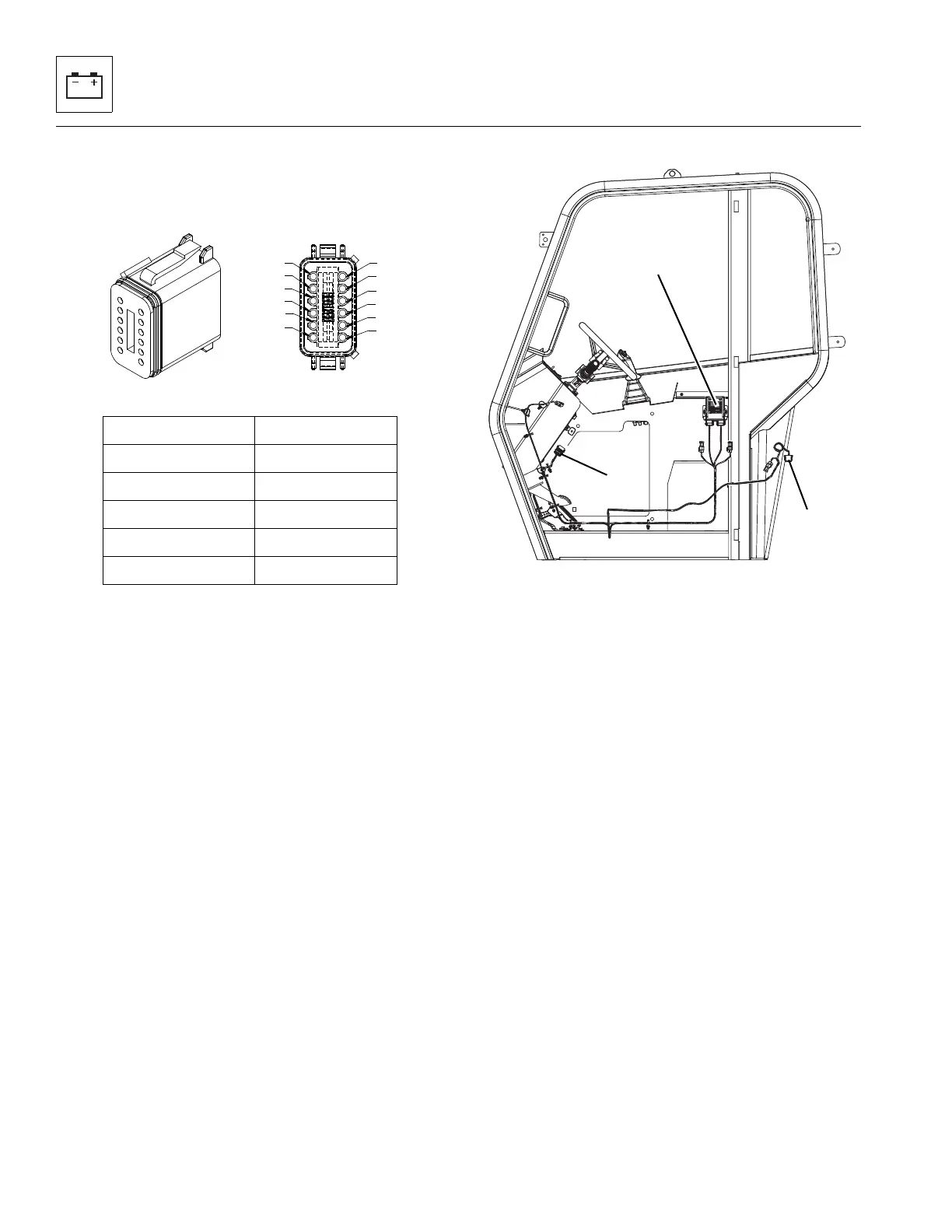

9.17.1 Telematics-Ready (TCU) Plug
The telematics-ready (TCU) plug is a standard 12-pin Deutsch
connector. Pin-out locations are shown below:
9.17.2 Component Locations
1. POWER 7. Not Used
2. GROUND 8. Not Used
3. Not Used 9. CAN-LO 2
4. IGNITION 10. CAN-HI 2
5. Not Used 11. Not Used
6. Not Used 12. Not Used
1
2
3
4
5
6
7
8
9
10
11
12
MAQ4820
MAQ4810
1
2
3
1. Gateway Module
2. Diagnostics Plug
3. Telematics-Ready
(TCU) Plug
