Electrical System
9-36
31211015 6036, 6042, 8042, 10042, 10054
9.15 MACHINE DATA
9.15.1 Machine Data Access

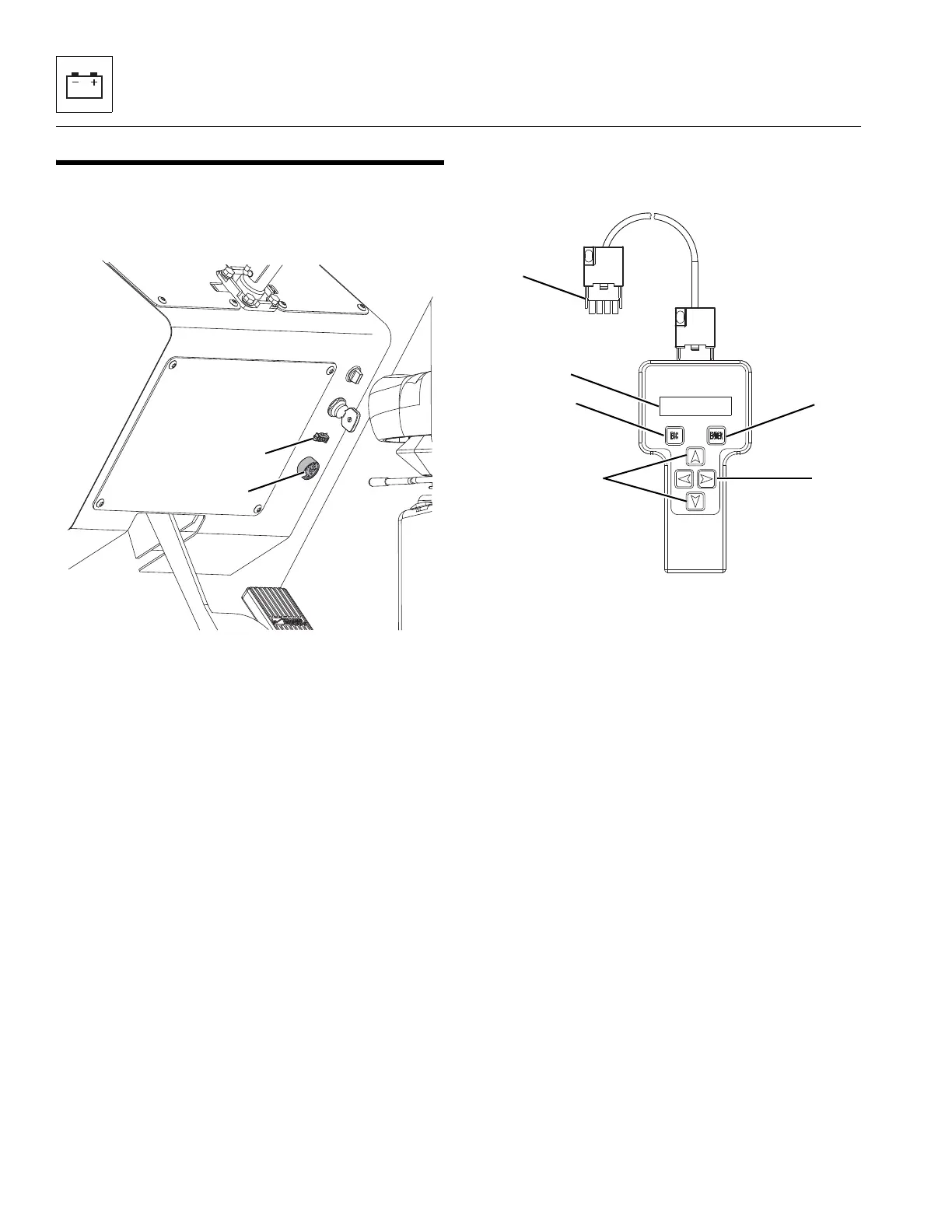

Machine and engine data can be accessed by connecting to
the appropriate locations shown below.
The machine analyzer plugs into connector (1) directly below
the ignition key. For machine diagnostics, refer to Section
9.18.1, “Fault Detection”.
The engine data can be accessed through connector (2). For
engine diagnostics, refer to Section 9.18.2, “Offboard
Diagnostics”.
For more information, contact the local JLG dealer.
9.15.2 Hand Held Analyzer
The hand held Analyzer (PN 2901443) provides machine
diagnostic, configuration and troubleshooting capabilities.
1. Cable Connector.
2. Analyzer Display Screen.
3. Escape Key: To return home or access previous menu.
4. Enter Key: Stores and selects Top Level, Sub Level and
Items Menus.
5. Up/Down Arrow Keys: Change adjustable values.
6. Left and Right Arrow Keys: Used to move between Top
Level, Sub Levels and Item Menus.
