General Information and Specifications
2-45
6036, 6042, 8042, 10042, 10054 31211015

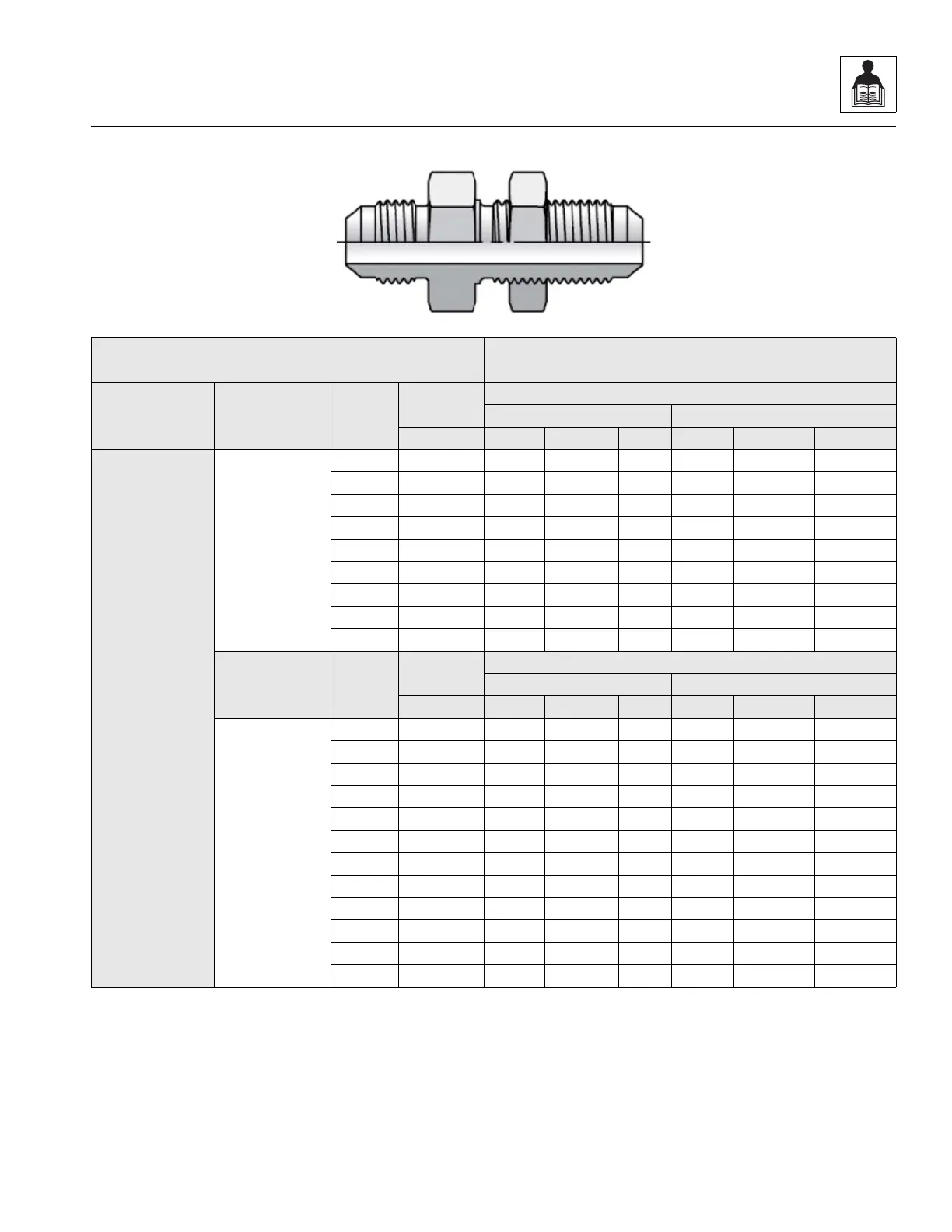

a. Bulkhead Fittings (BH) - INCH
TYPE/FITTING IDENTIFICATION
FASTENING JAM NUT
FOR BULKHEAD CONNECTORS
Material Type
Dash
Size
Thread
Size
Torqu e
[Ft-Lb] [Nm]
(UNF) Min Nom Max Min Nom Max
STEEL
FITTINGS
O-RING FACE
SEAL (ORFS)
BULKHEAD
FITTING
4 9/16-18 15 16 17 20 22 23
6 11/16-16 25 27 28 34 37 38
8 13/16-16 55 58 61 75 79 83
10 1-14 85 90 94 115 122 127
12 1 3/16-12 135 142 149 183 193 202
14 1 5/16-12 170 179 187 230 243 254
16 1 7/16-12 200 210 220 271 285 298
20 1 11/16-12 245 258 270 332 350 366
24 2-12 270 284 297 366 385 403
Type
Dash
Size
Thread
Size
Torqu e
[Ft-Lb] [Nm]
(UNF) Min Nom Max Min Nom Max
37
° FLARE (JLIC)
BULKHEAD
FITTING
3 3/8-24 8 9 9 11 12 12
4 7/16-20 13 14 14 18 19 19
51/2-2020212227 28 30
6 9/16-18 25 27 28 34 37 38
83/4-1650535568 72 75
10 7/8-14 85 90 94 115 122 127
12 1 1/16-12 135 142 149 183 193 202
14 1 3/16-12 170 179 187 230 243 254
16 1 5/16-12 200 210 220 271 285 298
20 1 5/8-12 245 258 270 332 350 366
24 1 7/8-12 270 284 297 366 385 403
32 2 1/2-12 310 326 341 420 442 462
MAE9170
