10.5 BOOM EXTEND INTERLOCK SYSTEM
DESCRIPTION
Note: The boom interlock system is used only on the Model
10054.
Boom extend interlock system is designed to provide
additional stability, allowing boom to be extended to its
maximum limits. Appropriate Operation and Safety Manual
contains boom extend interlock basic information. A copy of
Operation and Safety Manual should always be available in
storage compartment located in cab.

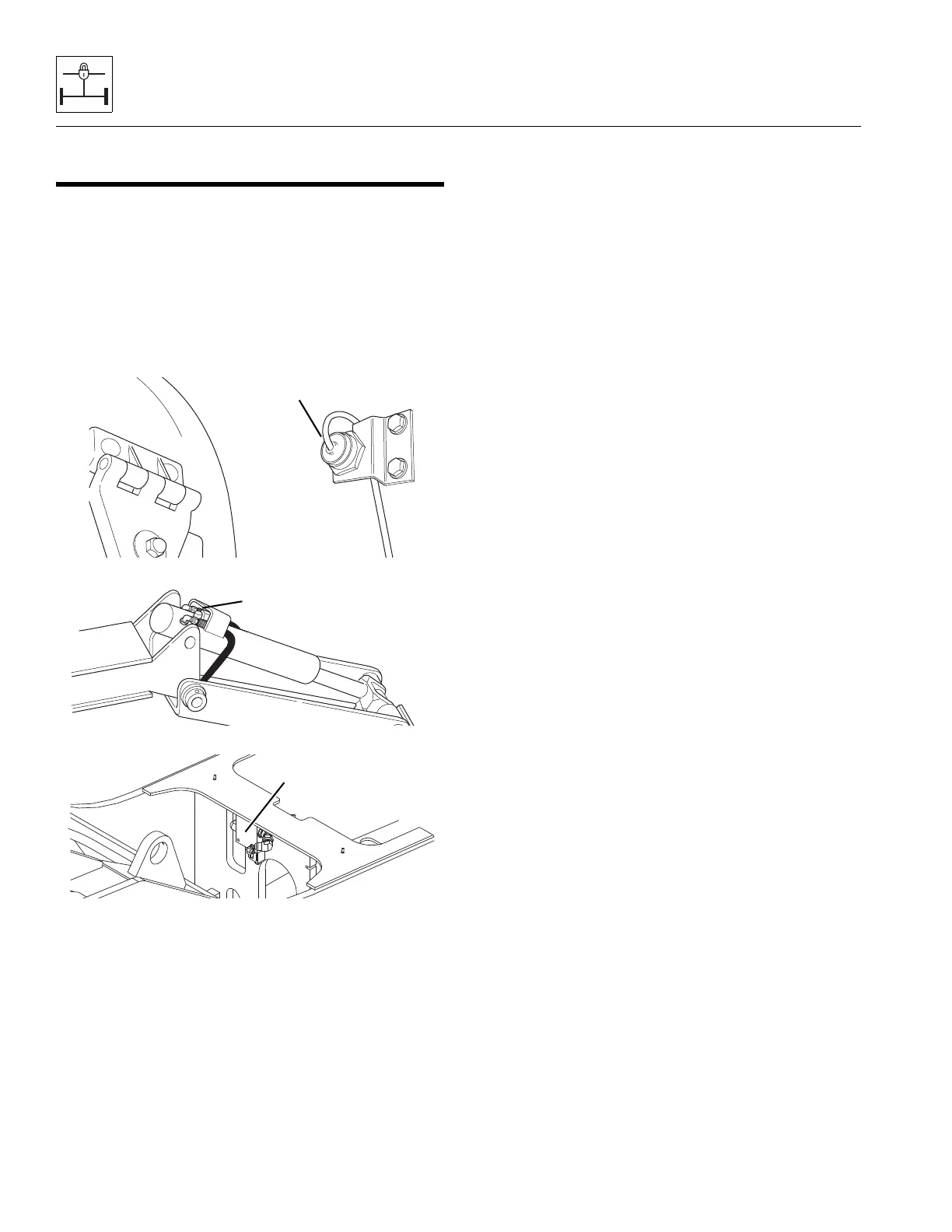

The interlock system operates via an interface between the
outrigger pressure switches (1), boom extend sensor (2),
boom lockout valve (3) and the logic wiring harness.
Boom extend interlock system can only be activated when
both outriggers are lowered onto firm terrain. Once boom
extend interlock system has been activated, machine will
automatically place Stabil-TRAK system in LOCKED MODE.
The Stabil-TRAK system will remain in LOCKED MODE, until
boom has been retracted. (Refer to Section 10.4, “Stabil-TRAK
Operation,” for more information.)
