General Information and Specifications
2-61
6036, 6042, 8042, 10042, 10054 31211015

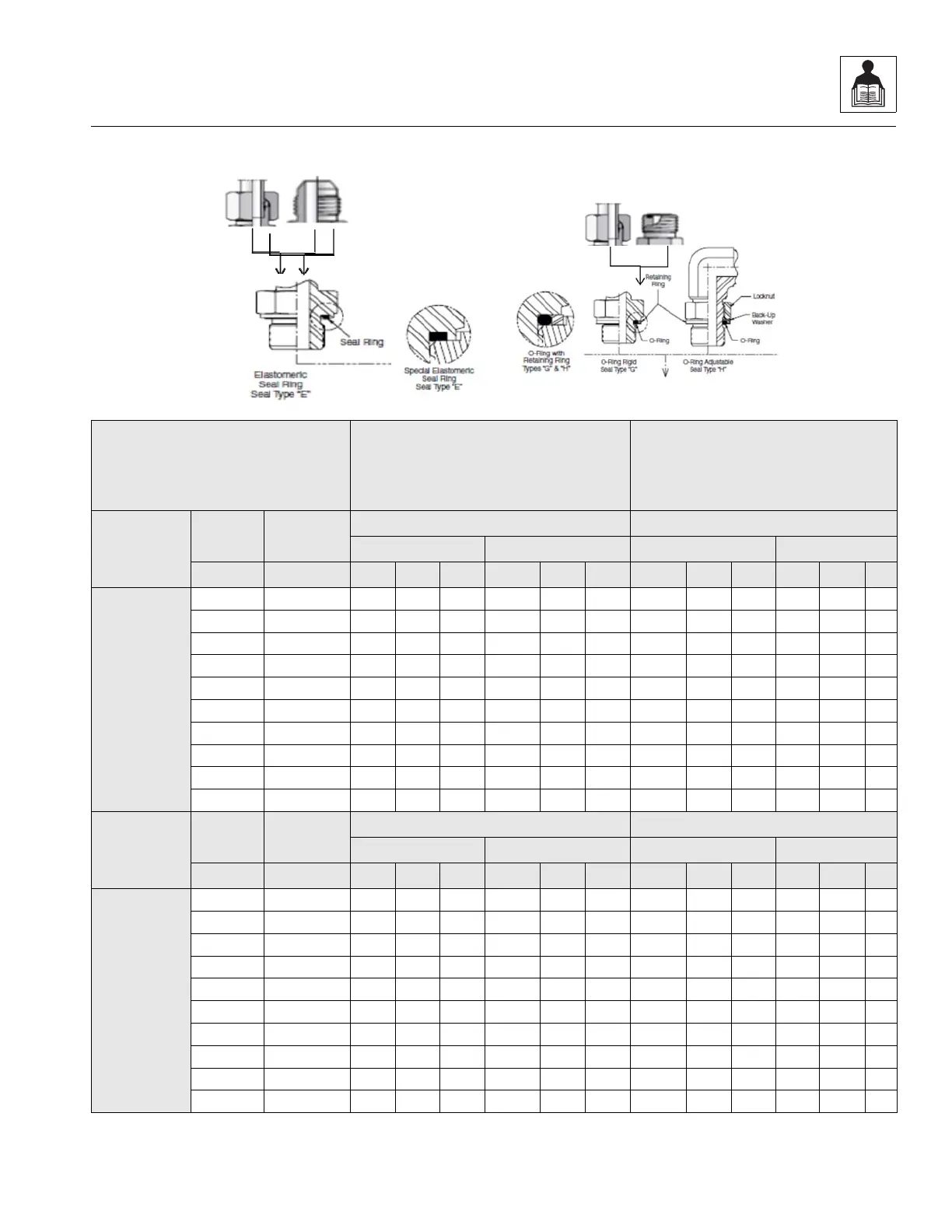

e. Metric Flat Face Port (MFF) S Series - Table 2 of 3
TYPE/FITTING
IDENTIFICATION
FORM A (SEALING WASHER)
STUD ENDS
WITH (ORFS) OR S SERIES DIN (MBTS)
OPPOSITE END
FORM B (CUTTING FACE)
STUD ENDS
WITH (ORFS) OR S SERIES DIN (MBTS)
OPPOSITE END
Material
Thread
M Size
Connecting
Tube O.D.
Torqu e Torqu e
[Ft-Lb] [Nm] [Ft-Lb] [Nm]
(metric) (mm) Min Nom Max Min Nom Max Min Nom Max Min Nom Max
STEEL FITTINGS
WITH STEEL
MATING
COMPONENTS;
UN-LUBRICATED
THREADS
M10x1 6 26 28 29 35 38 39 26 28 29 35 38 39
M12x1.5 8 33 35 36 45 47 49 41 43 45 55 58 61
M14x1.5 10 525557 70 7577 52 5557707577
M16x1.5 12 667073 90 9599 66 7073909599
M18x1.5 15 92 97 101 125 132 137 92 97 101 125 132 137
M22x1.5 18 100 105 110 135 142 149 100 105 110 135 142 149
M27x2 22 133 140 146 180 190 198 133 140 146 180 190 198
M33x2 28 229 241 252 310 327 342 229 241 252 310 327 342
M42x2 35 332 349 365 450 473 495 332 349 365 450 473 495
M48x2 42 398 418 438 540 567 594 398 418 438 540 567 594
Material
Thread
M Size
Connecting
Tube O.D
Torqu e Torqu e
[Ft-Lb] [Nm] [Ft-Lb] [Nm]
(metric) (mm) Min Nom Max Min Nom Max Min Nom Max Min Nom Max
ALUMINUM/
BRASS FITTINGS
OR ALUMINUM/
BRASS
MATING
COMPONENTS;
UN-LUBRICATED
THREADS
M10x1 6 17 18 19 23 24 26 17 18 19 23 24 26
M12x1.5 8 21 23 23 29 31 32 27 28 29 37 38 39
M14x1.5 10 343637 46 4950 34 3637464950
M16x1.5 12 434547 58 6164 43 4547586164
M18x1.5 15 606366 81 8589 60 6366818589
M22x1.5 18 656972 88 9498 65 6972889498
M27x2 22 86 91 95 117 123 129 86 91 95 117 123 129
M33x2 28 149 157 164 202 213 222 149 157 164 202 213 222
M42x2 35 216 227 237 293 308 321 216 227 237 293 308 321
M48x2 42 259 272 285 351 369 386 259 272 285 351 369 386
MAE9340
MAE9350
