Skytrak 8042 - Page 63

General Information and Specifications
2-51
6036, 6042, 8042, 10042, 10054 31211015

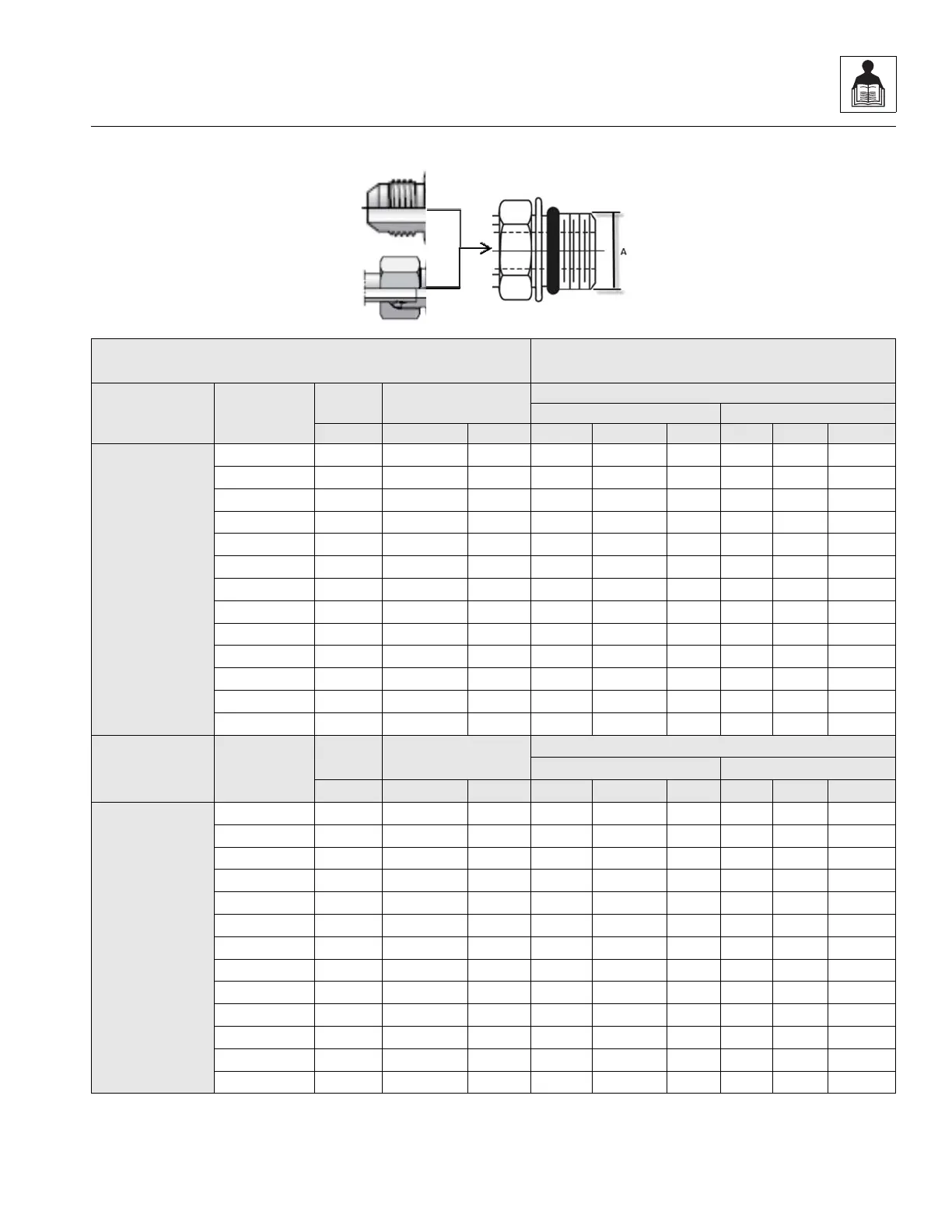

c. O-ring Boss (ORB) - Table 3 of 6
TYPE/FITTING IDENTIFICATION
ADJUSTABLE STUD END
WITH 37° (JIC) OR L SERIES DIN (MBTL) OPPOSITE END
Material Dash Size
Thread
Size
ØA*
Torque
[Ft-Lb] [Nm]
(UNF) (in) (mm) Min Nom Max Min Nom Max
STEEL FITTINGS
WITH STEEL
MATING
COMPONENTS;
UN-LUBRICATED
THREADS
2 5/16-24 0.31 7.93 (85) (90) (94) 10 10 11
3 3/8-24 0.37 9.52 (155) (163) (171) 18 18 19
4 7/16-20 0.44 11.11 22 23 24 29 31 33
5 1/2-20 0.50 12.70 23 25 26 32 34 35
6 9/16-18 0.56 14.28 29 31 32 40 42 43
8 3/4-16 0.75 19.10 52 55 57 70 75 77
10 7/8-14 0.87 22.22 85 90 94 115 122 127
12 1 1/16-12 1.06 27.00 135 142 149 185 193 202
14 1 3/16-12 1.19 30.10 175 184 193 235 249 262
16 1 5/16-12 1.31 33.30 200 210 220 270 285 298
20 1 5/8-12 1.63 41.30 250 263 275 340 357 373
24 1 7/8-12 1.87 47.60 305 321 336 415 435 456
32 2 1/2-12 2.50 63.50 375 394 413 510 534 560
Material Dash Size
Thread
Size
ØA*
Torque
[Ft-Lb] [Nm]
(UNF) (in) (mm) Min Nom Max Min Nom Max
ALUMINUM/BRASS
FITTINGS OR
ALUMINUM/BRASS
MATING
COMPONENTS;
UN-LUBRICATED
THREADS
2 5/16-24 0.31 7.93 (55) (58) (61) 6 7 7
3 3/8-24 0.37 9.52 (101) (106) (111) 11 12 13
4 7/16-20 0.44 11.11 14 15 16 19 20 22
5 1/2-20 0.50 12.70 15 16 17 20 22 23
6 9/16-18 0.56 14.28 19 20 21 26 27 28
8 3/4-16 0.75 19.10 34 36 37 46 49 50
10 7/8-14 0.87 22.22 55 58 61 75 79 83
12 1 1/16-12 1.06 27.00 88 93 97 119 126 132
14 1 3/16-12 1.19 30.10 114 120 126 155 163 171
16 1 5/16-12 1.31 33.30 130 137 143 176 186 194
20 1 5/8-12 1.63 41.30 163 171 179 221 232 243
24 1 7/8-12 1.87 47.60 198 208 218 268 282 296
32 2 1/2-12 2.50 63.50 244 256 268 331 347 363
NOTE: 1. * ØA thread OD dimension for reference only.
2. Removal torque for Zero Leak Gold® Hollow Hex Plugs is significantly higher than install torque, typically 1.5-3.5X install torque.
MAE9210
