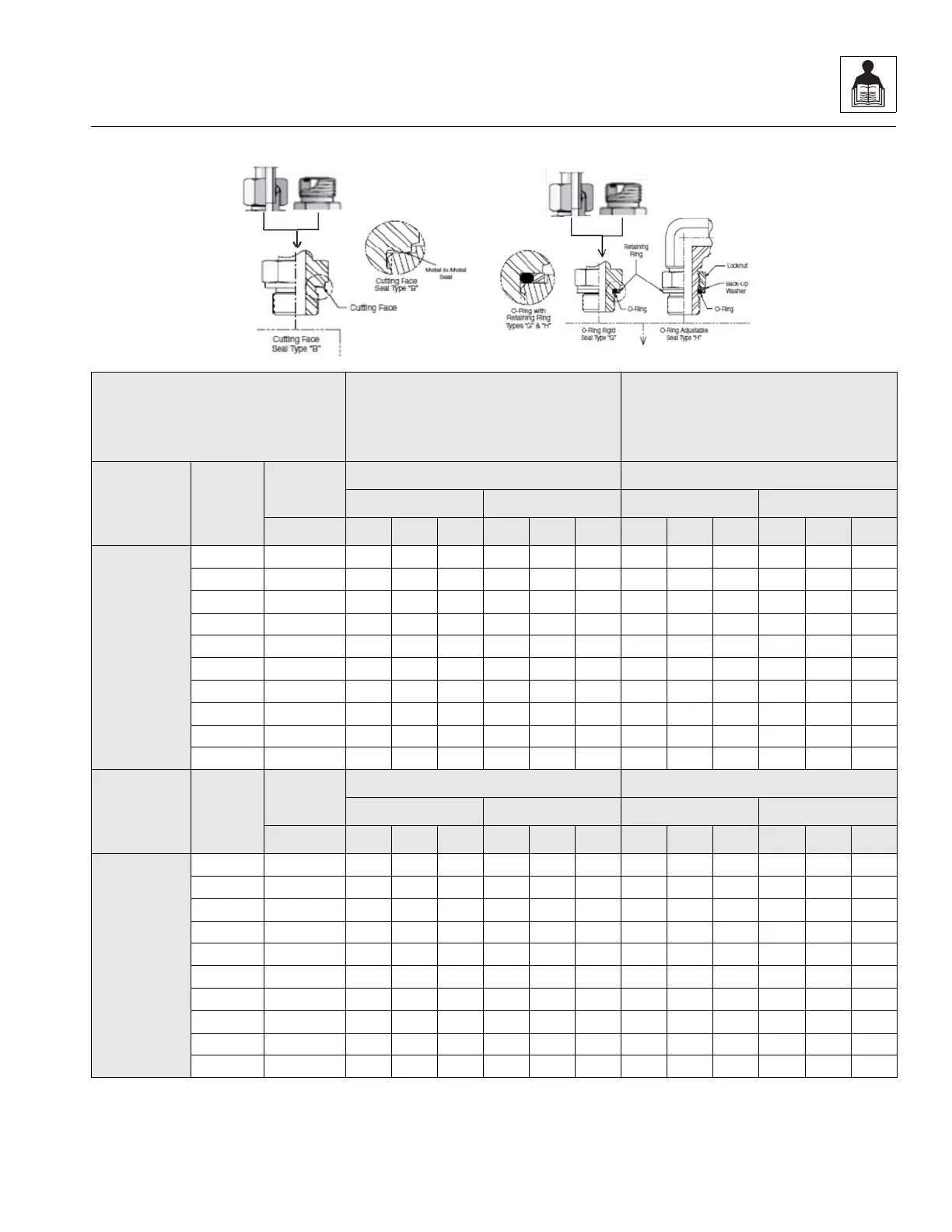

e. British Standard Parallel Pipe Port (BSPP) S Series - Table 2 of 3
TYPE/FITTING
IDENTIFICATION
FORM E* (EOLASTIC SEALING RING)
STUD ENDS AND HEX TYPE PLUGS
WITH (ORFS) or S SERIES DIN (MBTS)
OPPOSITE END
FORM G/H*** (O-RING W/ RETAINING
RING) STUD ENDS & ADJUSTABLE
STUD ENDS WITH (ORFS) OR
S SERIES DIN (MBTS) OPPOSITE END
Material
BSPP
Thread
G Size
Connecting
Tube O.D.
Torqu e Torque
[Ft-Lb] [Nm] [Ft-Lb] [Nm]
(mm) Min Nom Max Min Nom Max Min Nom Max Min Nom Max
STEEL FITTINGS
WITH STEEL
MATING
COMPONENTS;
UN-LUBRICATED
THREADS
G 1/4A 6 414345555861262829353839
G 1/4A 8 414345555861262829353839
G 3/8A 10 59 62 65 80 84 88 52 55 57 70 75 77
G 3/8A 12 59 62 65 80 84 88 52 55 57 70 75 77
G 1/2A 14 85 90 94 115 122 127 66 70 73 90 95 99
G 1/2A 16 85 90 94 115 122 127 66 70 73 90 95 99
G 3/4A 20 133 140 146 180 190 198 133 140 146 180 190 198
G 1A 25 229 241 252 310 327 342 229 241 252 310 327 342
G 1-1/4A 30 332 349 365 450 473 495 332 349 365 450 473 495
G 1-1/2A 38 398 418 438 540 567 594 398 418 438 540 567 594
Material
BSPP
Thread
G Size
Connecting
Tube O.D.
Torqu e Torque
[Ft-Lb] [Nm] [Ft-Lb] [Nm]
(mm) Min Nom Max Min Nom Max Min Nom Max Min Nom Max
ALUMINUM/
BRASS FITTINGS
OR ALUMINUM/
BRASS
MATING
COMPONENTS;
UN-LUBRICATED
THREADS
G 1/4A 6 272829373839171819232426
G 1/4A 8 272829373839171819232426
G 3/8A 10 38 40 42 52 54 57 34 36 37 46 49 50
G 3/8A 12 38 40 42 52 54 57 34 36 37 46 49 50
G 1/2A 14 55 58 61 75 79 83 43 45 47 58 61 64
G 1/2A 16 55 58 61 75 79 83 43 45 47 58 61 64
G 3/4A 20 86 91 95 117 123 129 86 91 95 117 123 129
G 1A 25 149 157 164 202 213 222 149 157 164 202 213 222
G 1-1/4A 30 216 227 237 293 308 321 216 227 237 293 308 321
G 1-1/2A 38 259 272 285 351 369 386 259 272 285 351 369 386
NOTE: * Typical for Straight Male Stud Fittings
***Typical for Adjustable Fittings.
MAE9450
MAE9460
