smart CX20 11

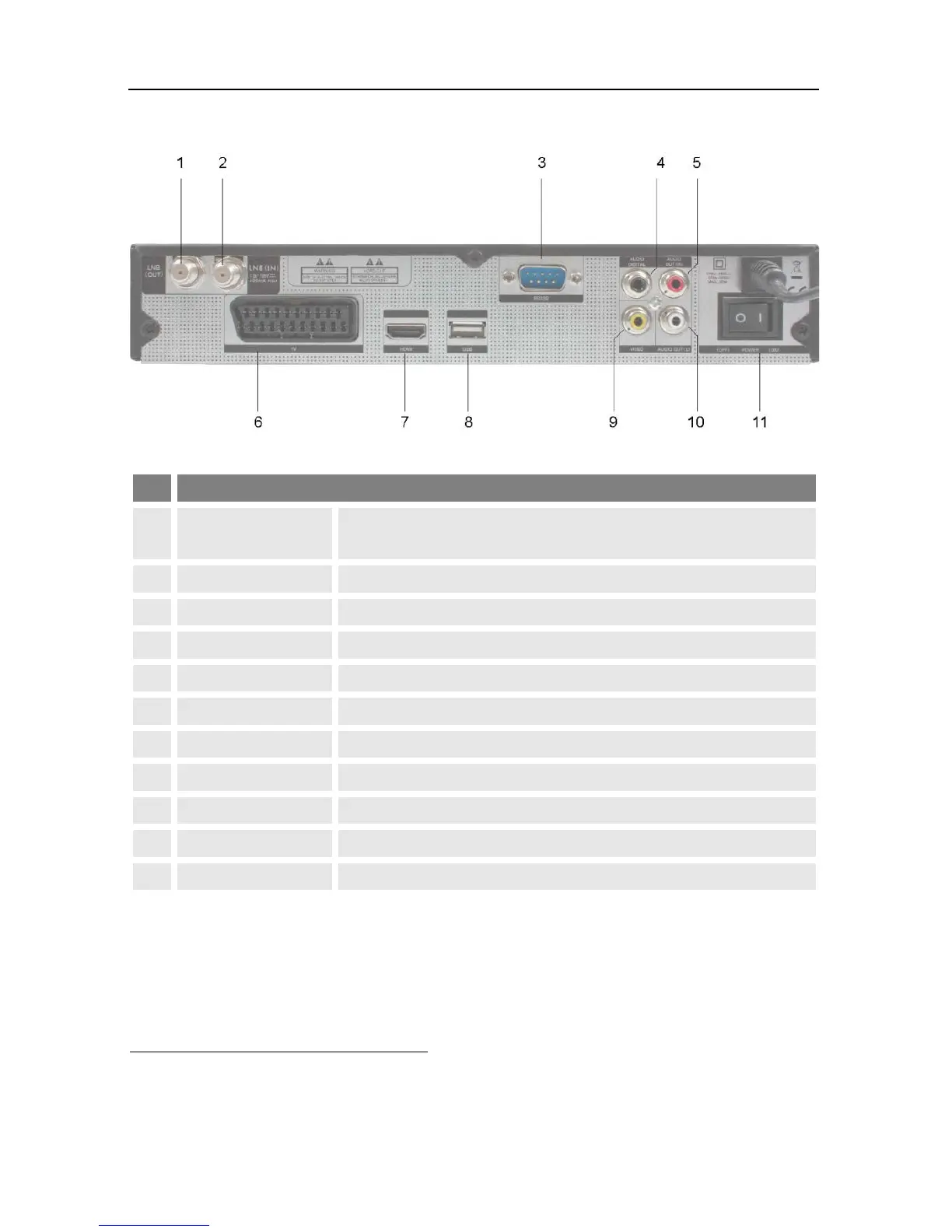

2.2.2 Rear Panel
No.
Description
1
LNB OUT
Loop-through satellite signal for connection of further
receivers, a video cassette recorder or a TV device
2
LNB IN
Connection for LNB (DVB-S)
3
RS 232
Service
4
DIGITAL AUDIO
Digital RCA audio out (SPDIF)
5
AUDIO - R
Analog audio signal right
6
TV
SCART connection for TV device (analog)
7
HDMI
2
Digital audio and video out
8
USB
Connection for external USB data storage
9
VIDEO
Composite Video3
10
AUDIO - L
Analog audio signal left
11
ON / OFF
Power switch (On/Off)
2
High Definition Multimedia Interface, interface for transferring uncompressed digital au-
dio/video data.
3
Composite Video = format of an analog television (picture only) signal before it is combined
with a sound signal and modulated onto an RF carrier
(www.en.wikipedia.org/wiki/Composite_Video).
