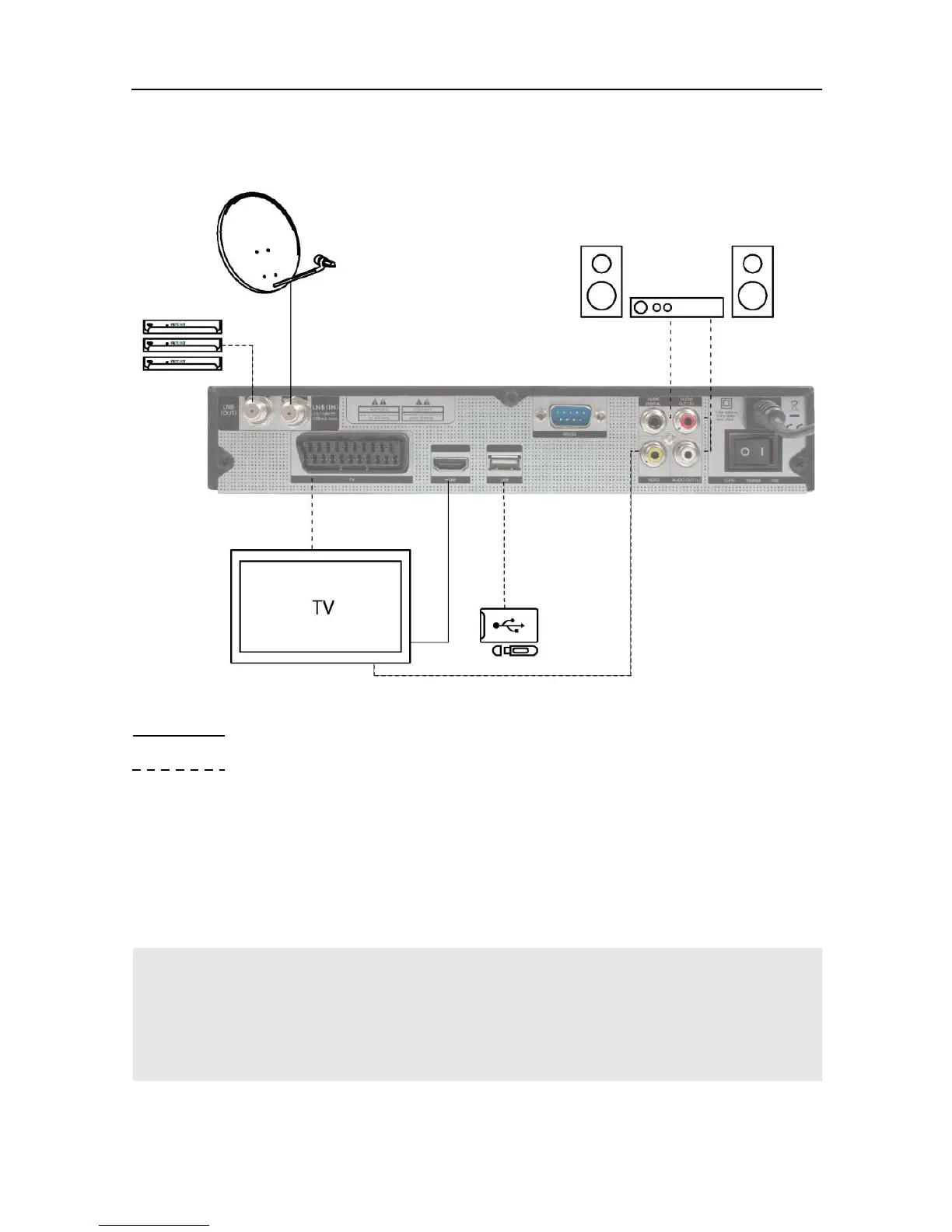

4.1 Connection Scheme
default connection
optional connection
4.2 Connect Satellite Antenna
 Connect the antenna cable to the receiver connection LNB IN.
Further receivers can be connected at the connection LNB OUT. The
signal is looped through from input LNB IN.

If your receiver is in sleep mode (deep standby) or the
device was disconnected from power (via power switch
or by pulling the plug), there is no signal at LNB OUT
(see also section „Loop Standby“, page 65.
