VLAN C
ONFIGURATION
3-167

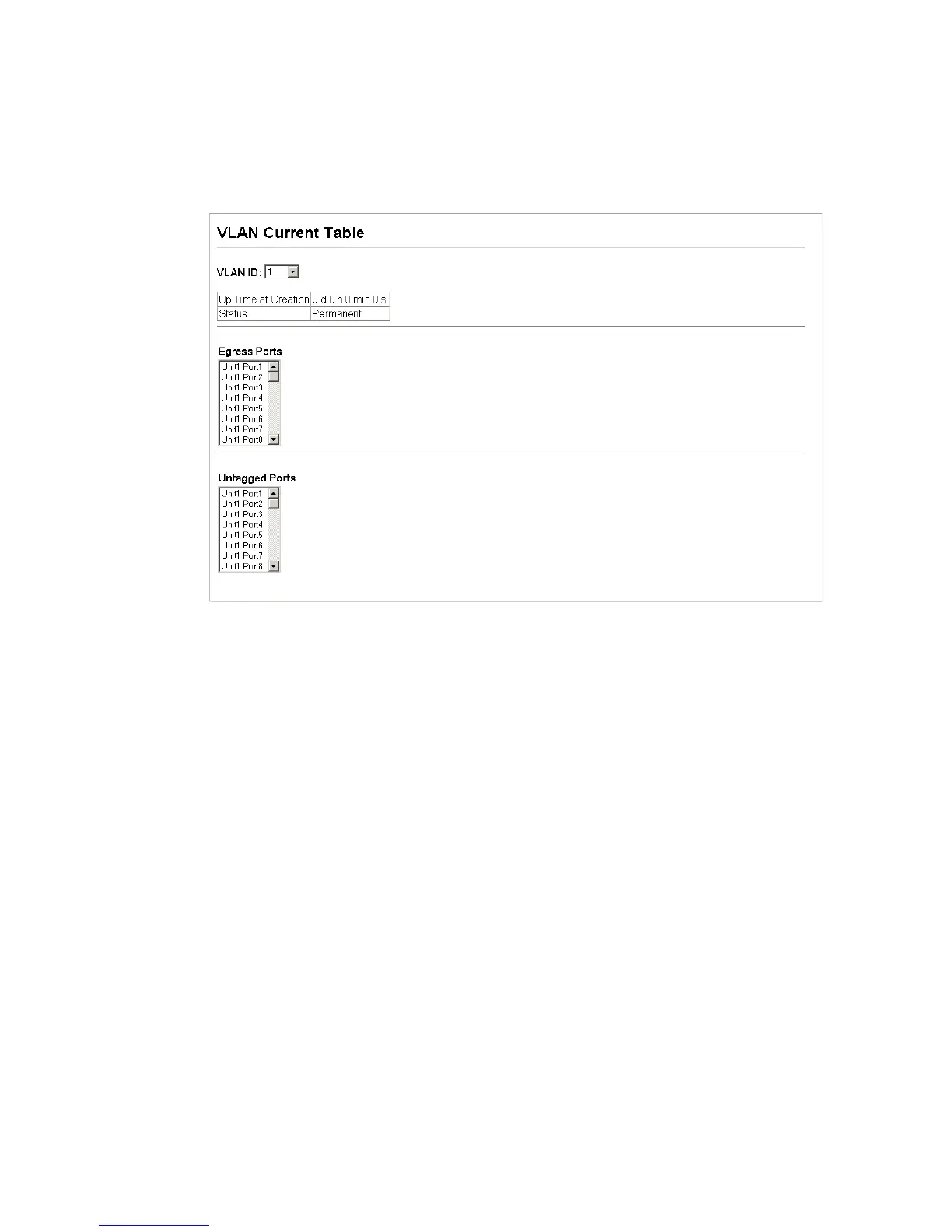

Web – Click VLAN, 802.1Q VLAN, Current Table. Select any ID from
the scroll-down list.
Figure 3-70. Displaying VLAN Information by Port Membership
Command Attributes (CLI)
• VLAN – ID of configured VLAN (1-4093, no leading zeroes).
• Type – Shows how this VLAN was added to the switch.
- Dynamic: Automatically learned via GVRP.
- Static: Added as a static entry.
• Name – Name of the VLAN (1 to 32 characters).
• Status – Shows if this VLAN is enabled or disabled.
- Active: VLAN is operational.
- Suspend: VLAN is suspended; i.e., does not pass packets.
• Ports / Channel groups – Shows the VLAN interface members.
