SMC Networks TigerSwitch SMC6128L2 User Manual

VLAN C ONFIGURATION
3-185
Web – Click VLAN, Protocol VLAN, Configuration.

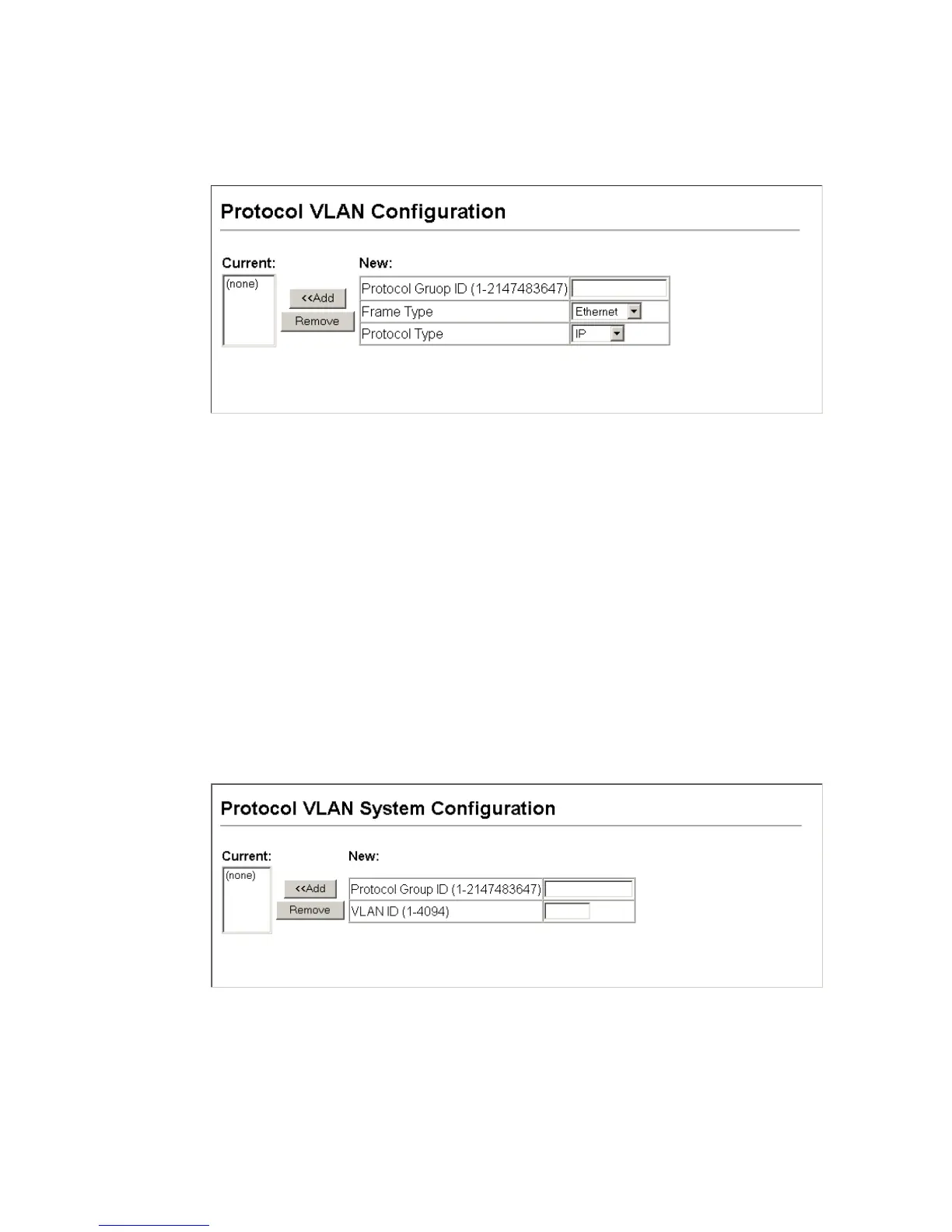

Figure 3-80. Protocol VLAN Configuration
Configuring Protocol VLAN System
Use the Protocol VLAN System Configuration menu to set the protocol
VLAN settings for the switch.
Command Attributes
• Protocol Group ID - Protocol Group ID assigned to the Protocol
VLAN Group. (Range: 1-2147483647)
• VLAN ID - VLAN to which matching protocol traffic is forwarded.
(Range: 1-4094)
Web – Click VLAN, Protocol VLAN, System Configuration.
Figure 3-81. Protocol VLAN Port Configuration
