C
ONFIGURING
THE
S
WITCH
3-180
Associating VLANs
Each community VLAN must be associated with a primary VLAN.
Command Attributes
• Primary VLAN ID - ID of primary VLAN (1-4093).
• Association - Community VLANs associated with the selected
primary VLAN.
• Non-Association - Community VLANs not associated with the
selected VLAN.
Web – Click VLAN, Private VLAN, Association. Select the required
primary VLAN from the scroll-down box, highlight one or more
community VLANs in the Non-Association list box, and click Add to
associate these entries with the selected primary VLAN. (A community
VLAN can only be associated with one primary VLAN.)

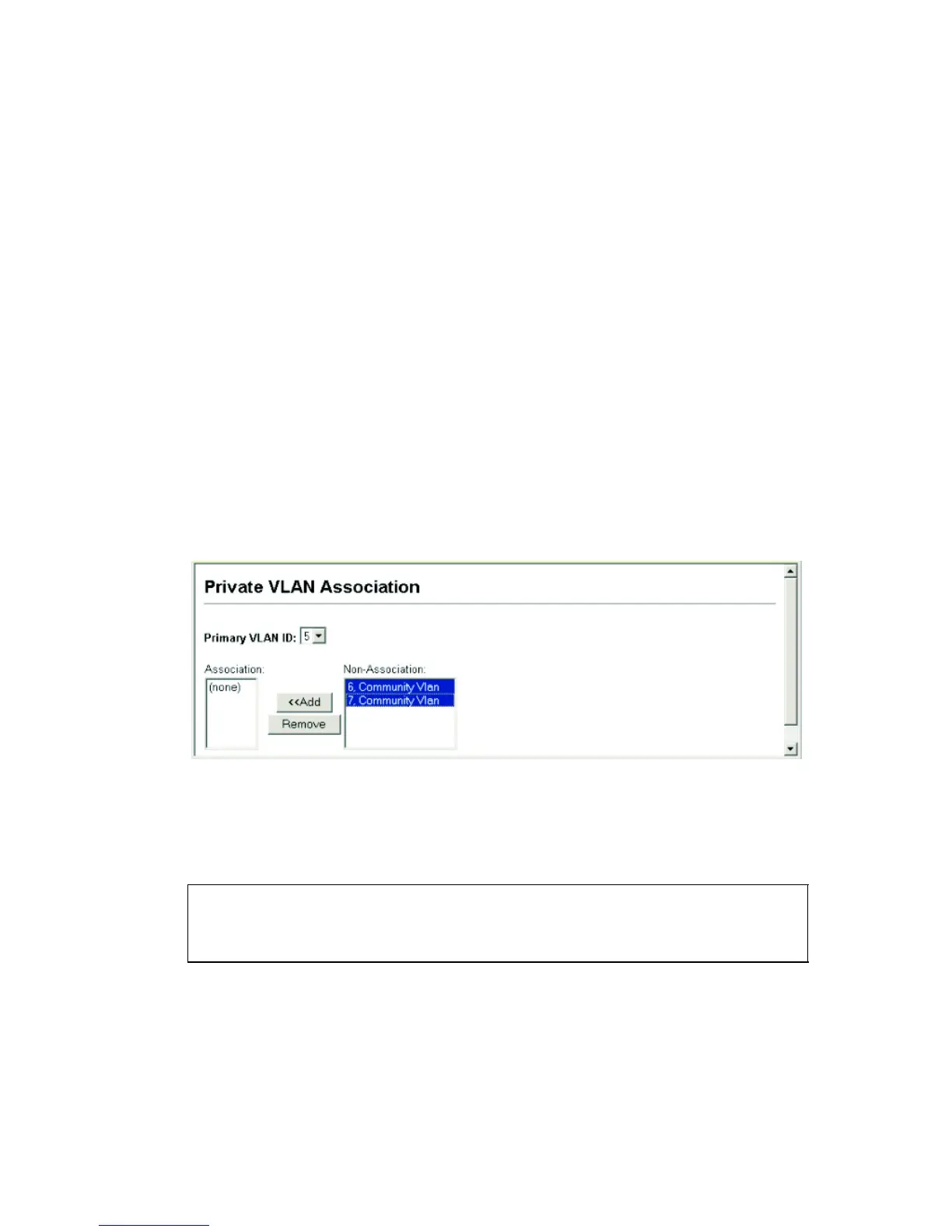

Figure 3-77. Private VLAN Association
CLI – This example associates community VLANs 6 and 7 with primary
VLAN 5
Console(config)#vlan database 4-196
Console(config-vlan)#private-vlan 5 association 6 4-210
Console(config-vlan)#private-vlan 5 association 7 4-210
Console(config)#
