C
ONFIGURING
THE
S
WITCH
3-240
Web – Click IP Source Guard, Static Configuration.

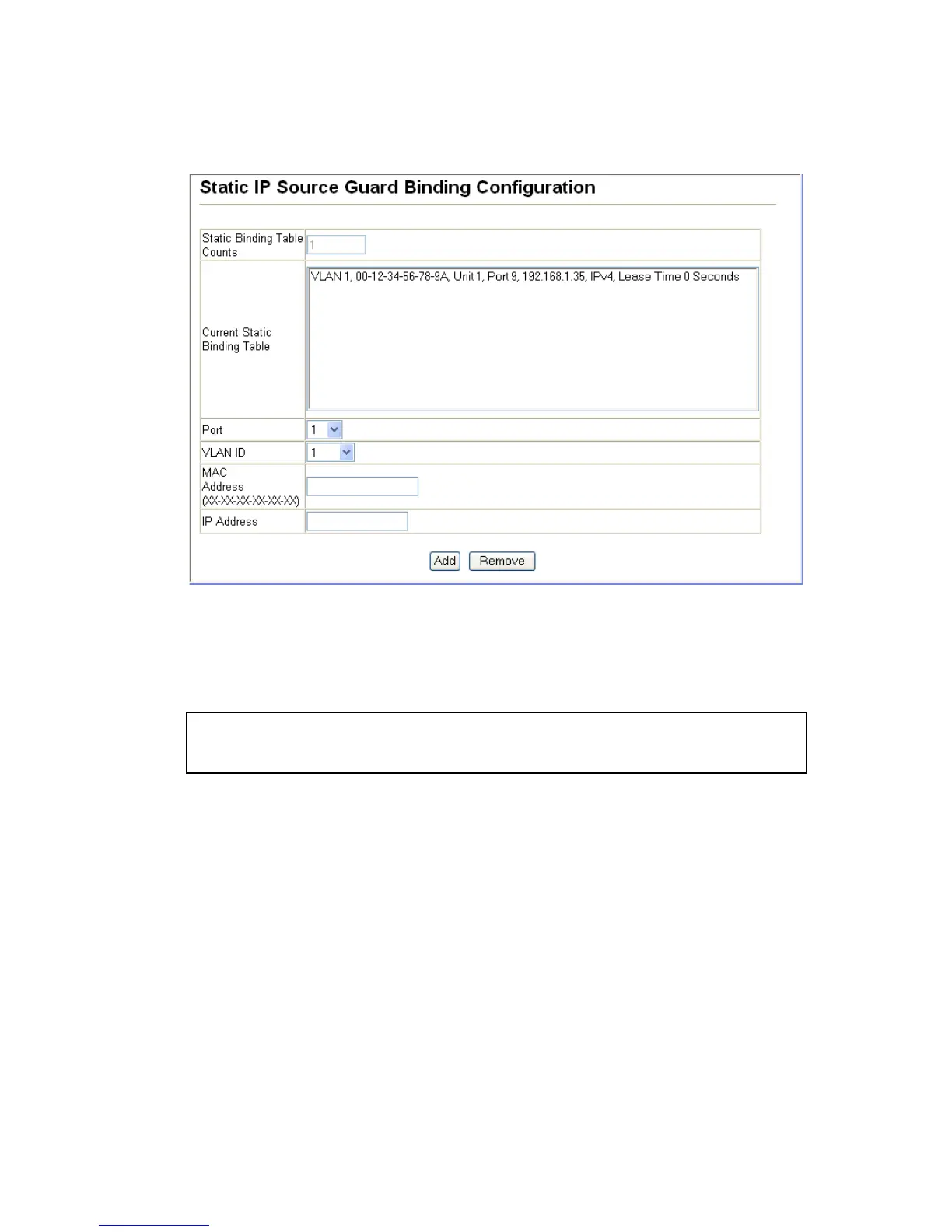

Figure 3-112. Static IP Source Guard Binding Configuration
CLI – This example shows how to configure a static source-guard binding
on port 5
.
Dynamic IP Source Guard Binding Information
Displays the source-guard binding table for a selected interface.
Command Attributes
• Query by – Select an interface to display the source-guard binding.
(Options: Port, VLAN, MAC Address, or IP Address)
• Dynamic Binding Table Counts – Displays the number of IP
addresses in the source-guard binding table.
• Current Dynamic Binding Table – Displays the IP addresses in the
source-guard binding table.
Console(config)#ip source-guard binding 11-22-33-44-55-66 vlan 1
192.168.0.99 interface ethernet 1/5 4-267
Console(config)#
