D717 User Manual Configuring the Function Keys

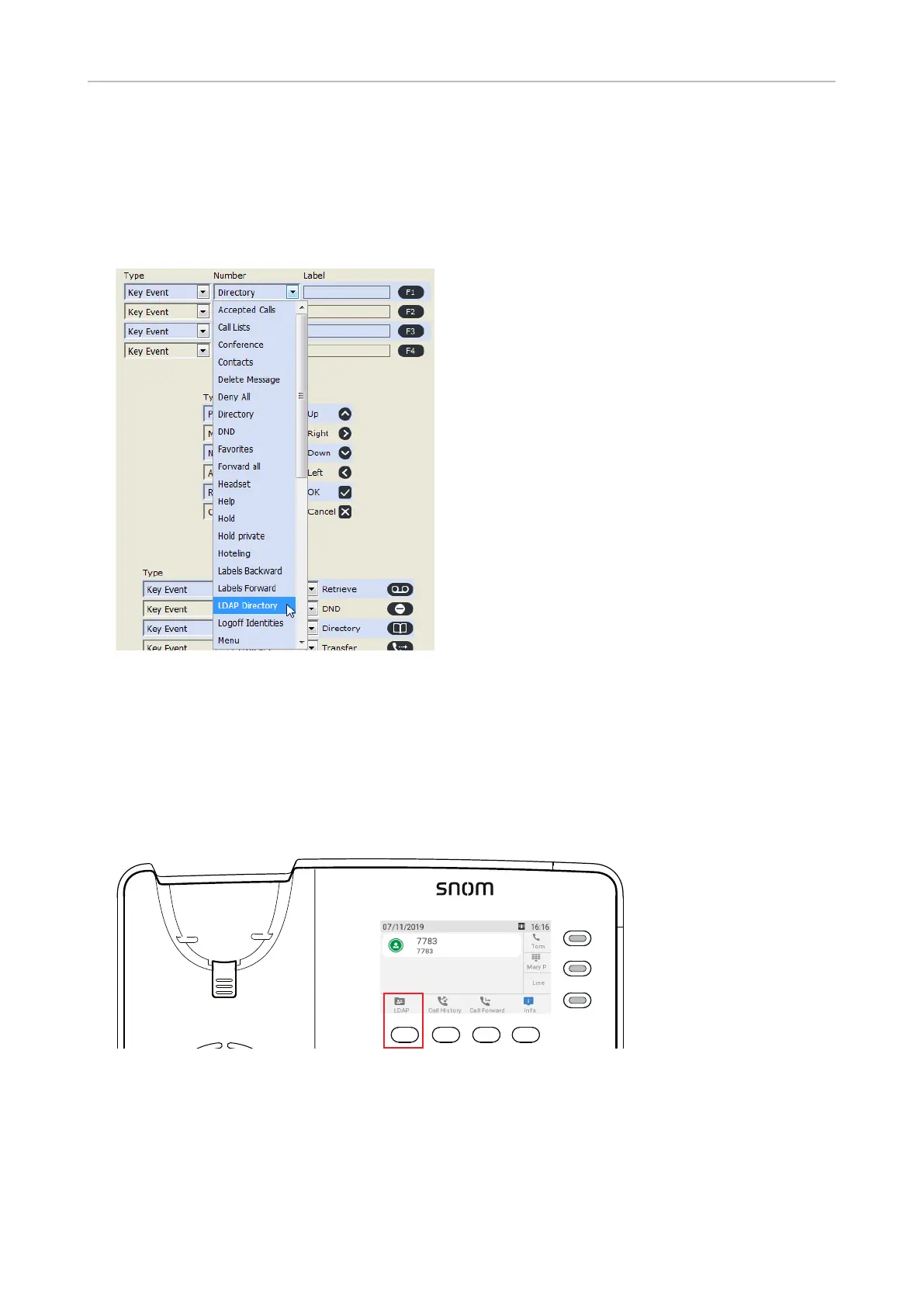

Example 4, Changing setting of context-sensitive key
You can select a dierent key event to be available on the four keys under the display when the phone
is in idle mode. You cannot change the functions that are available when the phone is active, for
example when you are in a call, when the phone is ringing, etc. In the following example, the setting
of key F1 will be changed from Directory to LDAP Directory.
1. On the phone's web interface, click on Function Keys in the menu on the left.
2. Click the Key Assignment tab, if necessary.
3. Click the drop-down list of context-sensitive key F1 and select "LDAP Directory".
4. Click on Apply and Save.
By pressing key F1 you now have direct access to your LDAP directory, if available and if the settings
are provided on the phone's Advanced Settings page > Network tab > LDAP section.
