9.
RemovetheConnectionUnitcovers:
a. ReleasethesixscrewsattachingtheConnectionUnitexternalcovertotheenclosureandliftthe
cover.
b. Openthefourinternalscrewssecuringthetransparentcovertotheenclosureandremovethe
cover.

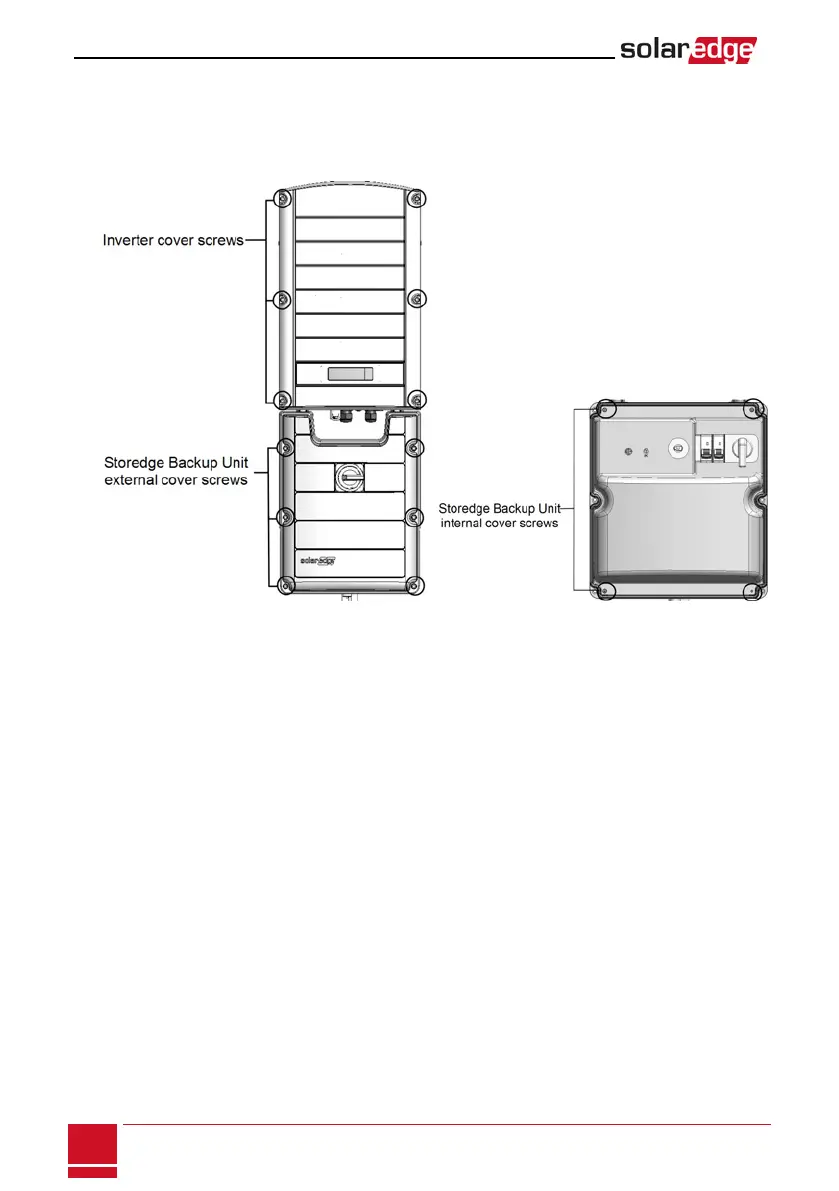

Figure 14: Inverter Covers
SolarEdge-StorEdge Installation Guide MAN-01-00262-1.3
26
Mounting the Inverter
