5.
Alignthetwoindentationsintheinverterenclosurewiththetwotriangularmountingtabsofthe
bracket,andlowertheinverteruntilitrestsonthebracketevenly.

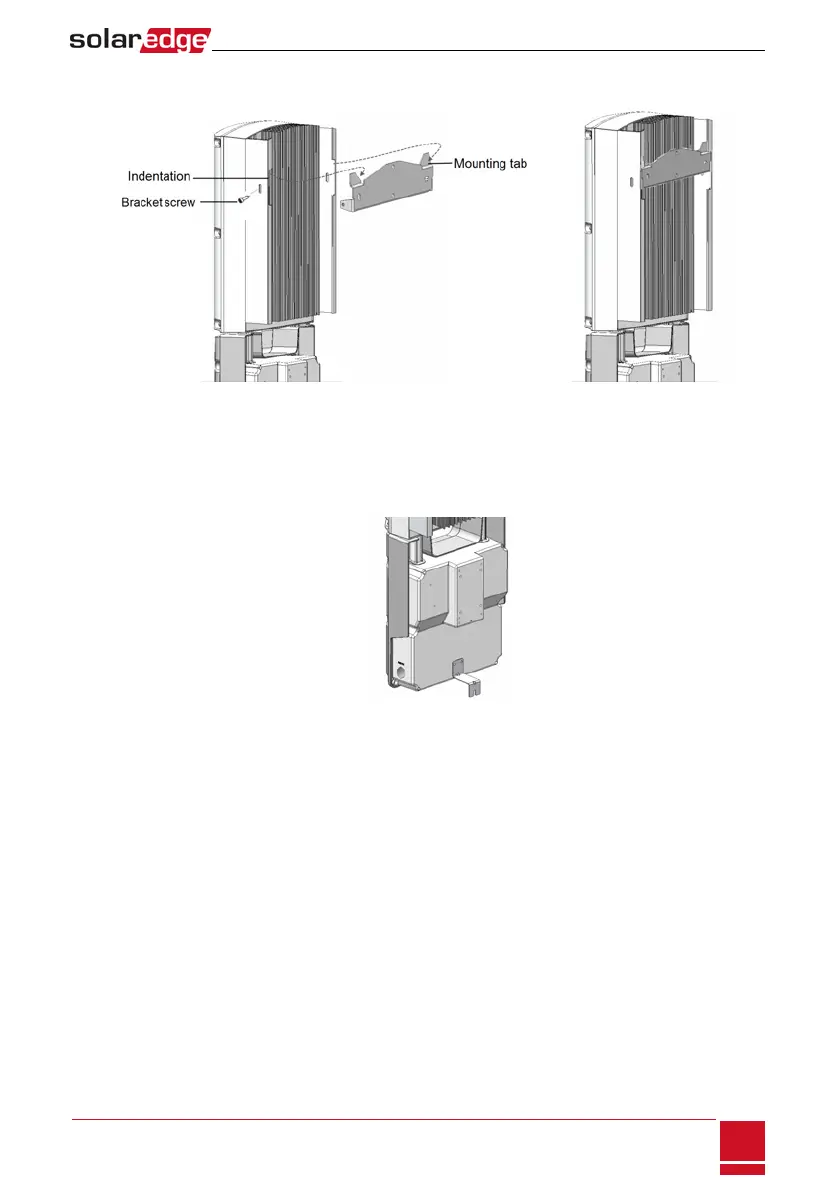

Figure 12: Hanging the inverter on the bracket
6. SecuretheConnectionUnitbrackettothewall:
l MarkthelocationofthebracketscrewfortheConnectionUnitanddrillthehole.
l Fastenthebracketusingastandardbolt.
l
Verifythatthebracketisfirmlyattachedtothemountingsurface.
Figure 13: Connection Unit bracket
7. Insertthetwosuppliedscrewsthroughtheouterheatsinkfinonbothsidesoftheinverterandinto
thebracket(seeFigure12).Tightenthescrewswithatorqueof4.0N*m/2.9lb.*ft.
8. Removetheinvertercover:Opentheinvertercover’ssixAllenscrewsandcarefullypullthecover
horizontallybeforeloweringit.
Chapter 3: Installing the Inverter
SolarEdge-StorEdge Installation Guide MAN-01-00262-1.3
25
