FITTING TELESCOPIC SLIDE MOUNTING
KIT (JONATHAN)
L
As
shown
in
Fig 2.
12,
remove the following items
from the unit:
a)
Finisher Trim
Retain the four
M4X
16
panhead screws and M4 crinkle
washers for
securing
the
rack ears.
b)
Handle and Handle
Trim
c) Side
Trim
Located
on the opposite side to the handle, the
side trim is normally
secured by a
pip on the Finisher trim. The side trim slides out
backwards.
Check that
the mounting bar already fitted
behind the
side
trim has
the part
number
1 25020 19B.
d) Case Top and Case
Bottom
Retain the
Five screws and washers for securing the replacement case sections.

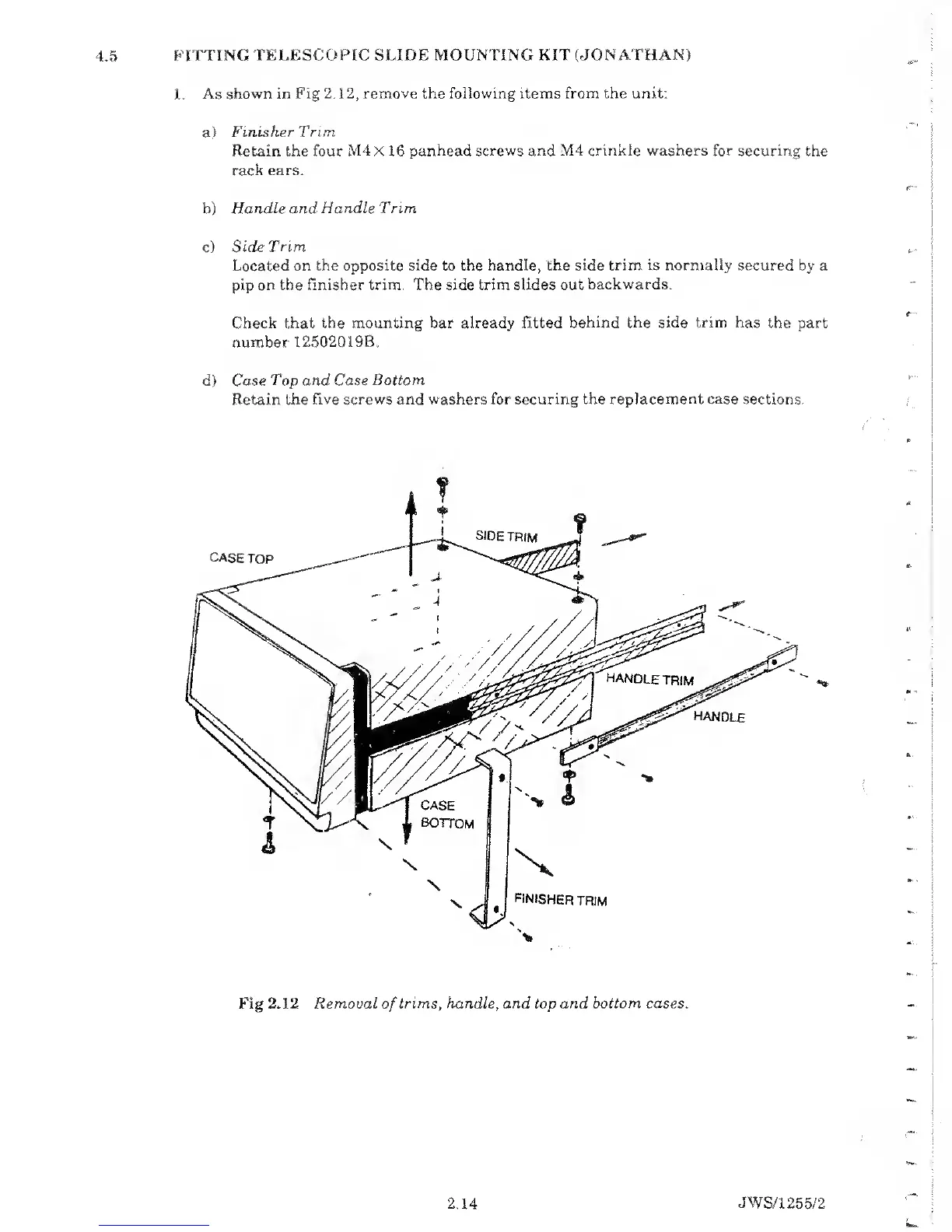

Fig 2.12 Removal
of
trims, handle, and
top
and bottom cases.
2.14
JWS/1
255/2
