BASIC TRACKING CONFIGURATION
For basic tracking, channels can be a mixture of stereo and mono. The signal processing, cue and FX sends are available
within both channel configurations. Sends to the DAW can be sourced either from the Channel Outputs or from the Track
Busses, and the stereo master return from the DAW might be brought back into the console via either the External inputs
or a stereo channel. The EFX system can be employed to provide independent level to the DAW send. Mono-configured
c
hannels use In-Line Mix with the secondary channel path left inactive.

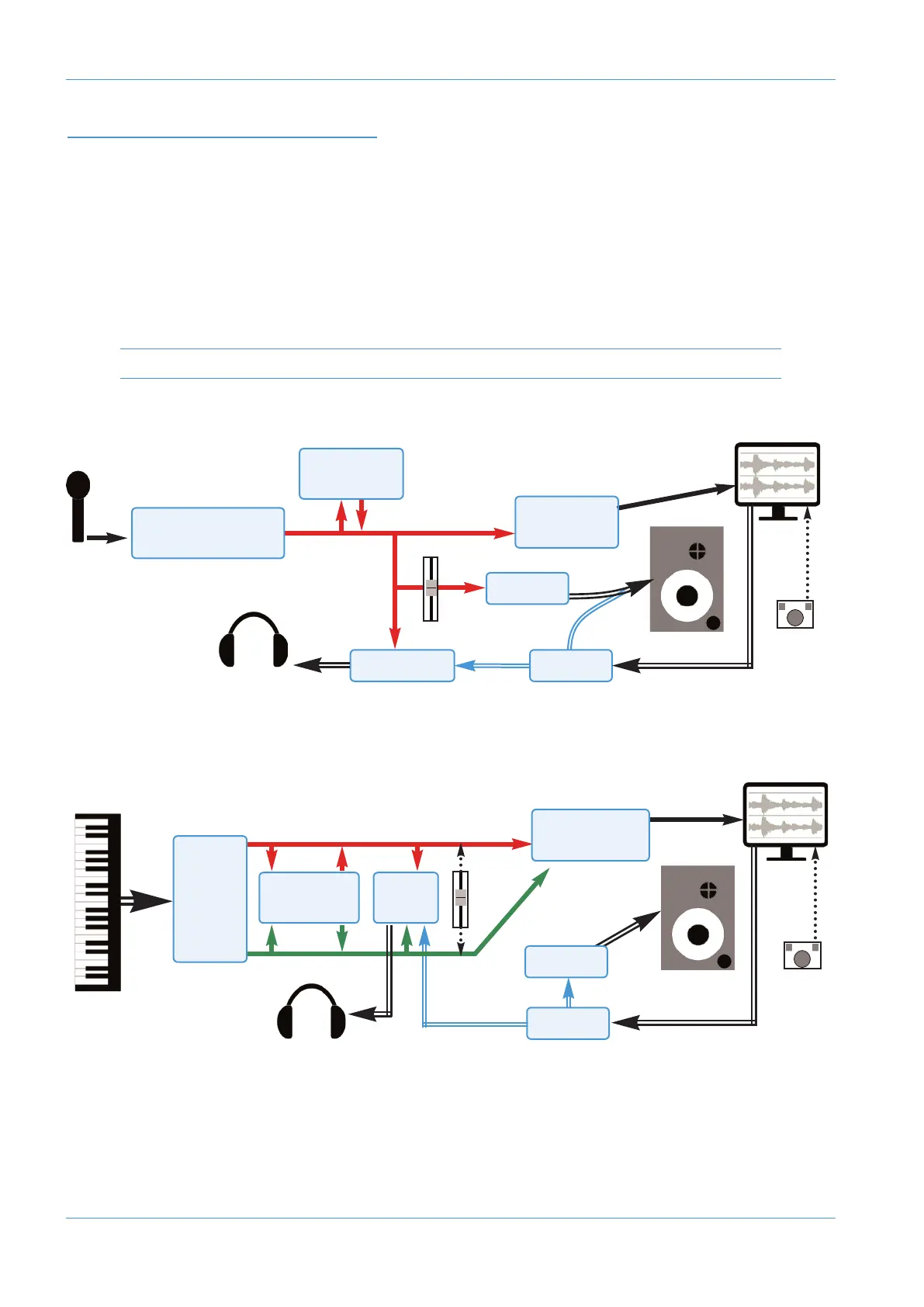

Below are examples of how mono and stereo channels might be configured in basic mode. The stereo master return from
the DAW may be brought back into the console using an EXT B input (as shown for the mono configuration) or a spare
s
tereo channel (as shown for the stereo configuration). The monitors can be fed by a sum of the mix bus and the DAW
return (as shown for the mono configuration) or by just the DAW (as shown for the stereo configuration).
EFX is described in Section 3.
MONO CONFIGURATION
STEREO CONFIGURATION
AWS 948 Tutorial
Page 2b-4 AWS δelta Owner’s Manual
DAW
CUE Sends
Mix Bus
Ext B
Monitoring
Foldback
Channel Path A
Channel
Output 1L
Channel 1 Input:
Mic In or Line In Left
Signal
Processing
Chan 1
Input:
Line In
Left &
Line In
Right
Signal
Processing
Foldback
Channel Path A
CUE
Sends
Channel Path B
DAW
Monitoring
Channel Out
1L &1R
Mix Bus
Ext B
