ANALOGUE-STYLE IN-LINE TRACKING CONFIGURATION
In In-Line Tracking mode, Channel Paths A and B are used for tracking and monitoring respectively. The V-Pot functions
as the ‘small fader’, controlling Path A’s record path to the DAW via the channel outputs. The main faders control the
monitor level (Path B). The RETURN switch near the pan pot in the channel strip controls whether the monitor path
is sourced from DAW send from the record path or from the DAW return:
BAND TRACKING MODE
For multi-instrumentalist tracking, leave the RETURN switches unselected. The monitor path will therefore be fed from
t
he channel output, ensuring that everything is heard, regardless of the DAW’s record status. Signal Processing can be
assigned to either path, allowing it to be committed to ‘tape’ or restricted to the monitoring. Sends to the DAW can be
sourced either from the Channel Outputs or from the Track Busses.
OVERDUB/PLAYBACK TRACKING MODE
For overdubbing, pressing the RETURN switches will switch the monitor path to be fed from the DAW return, allowing
recorded tracks to be auditioned. The channel outputs should feed the DAW and the DAW channels should be returned
to the monitoring paths in the channel from which they are sourced.
M-AUTO and S-CUE use the transport status to automatically control the send and return routing to the monitoring
and headphone feeds, as described in Section 3.

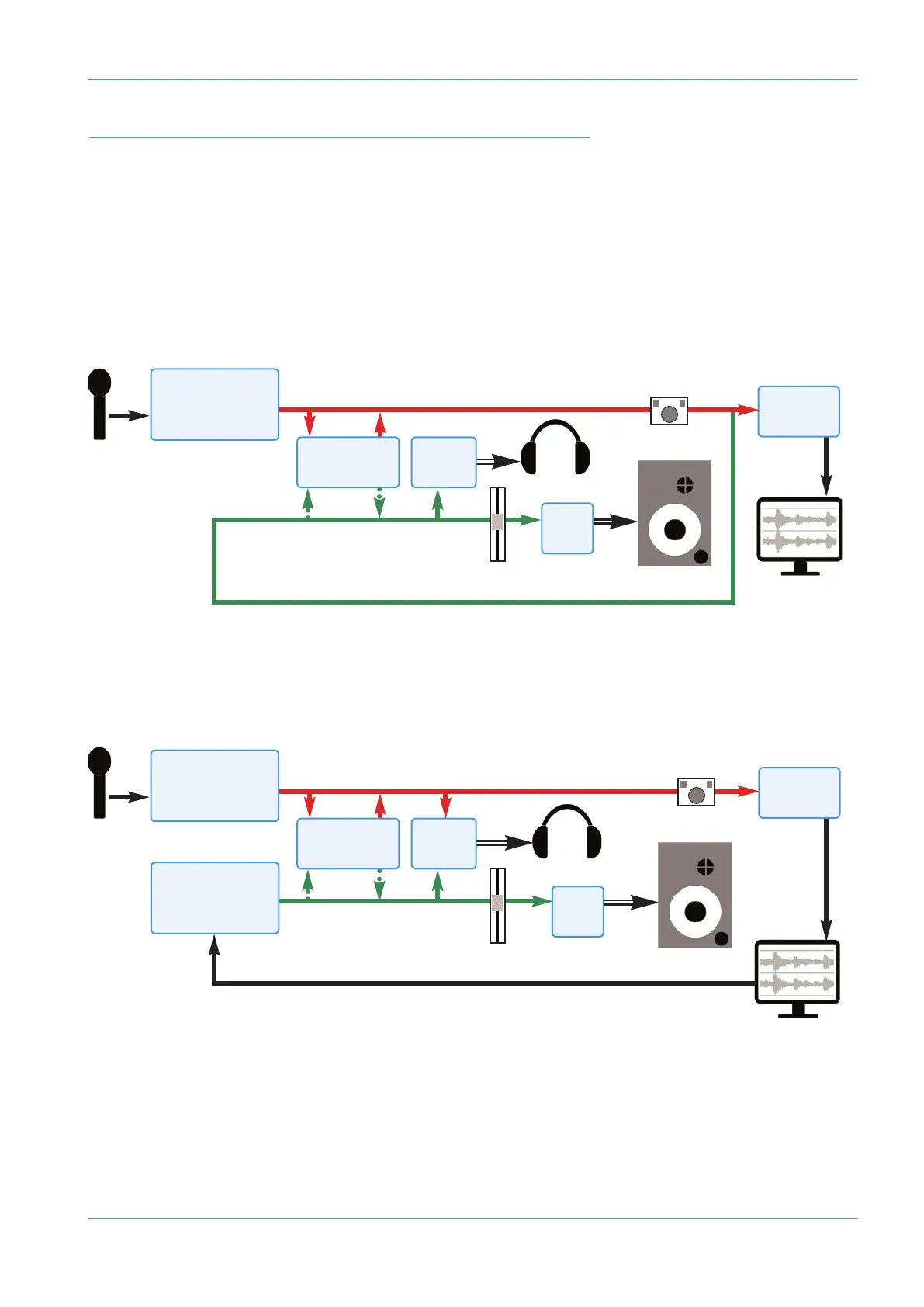

AWS 948 Tutorial
AWS δelta Owner’s Manual Page 2b-5
Foldback
Channel Path A
Monitoring
DAW
track
in
Channel Path B
Chan 1L
Output
Mix
Bus
Channel 1
Rec Input:
Mic In or Line In L
CUE
Sends
Signal
Processing
Foldback
Channel Path A
Monitoring
DAW
track
in
Channel Path B
DAW track out
Mix
Bus
Channel 1
Mon Input:
Line In R
Channel 1
Rec Input:
Mic In or Line In L
CUE
Sends
Signal
Processing
Chan 1L
Output
