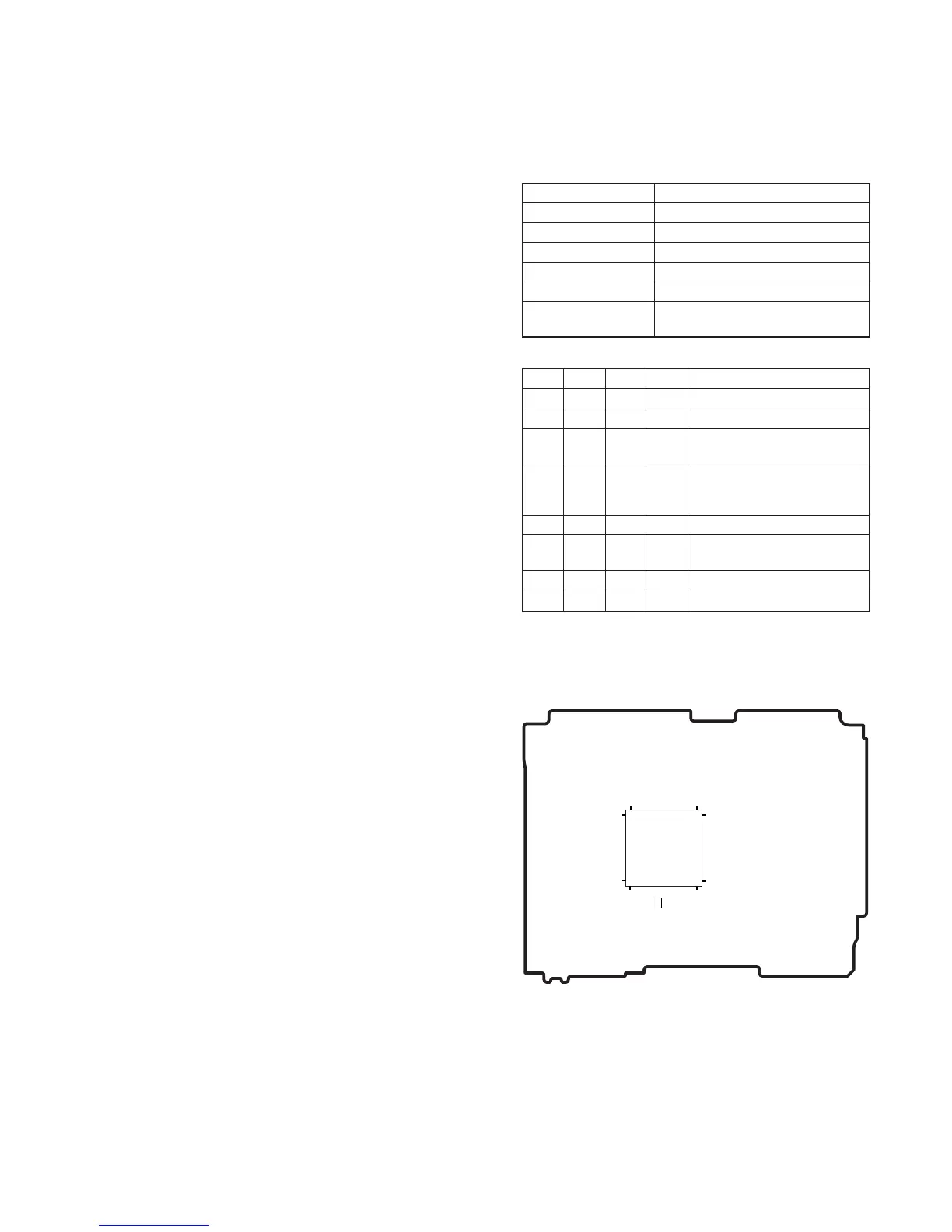

5-41
VC-251 BOARD
3-4. VIDEO SYSTEM ADJUSTMENTS
Video system adjustments must be performed in the following order.
Note: NTSC model:CCD-TR618/TR818/TRV49/TRV58/TRV68/TRV78/
TRV88/TRV98
PAL model: CCD-TR618E/TR718E/TR728E/TRV49E/TRV58E/
TRV59E/TRV78E/TRV98E
[Adjusting Order]
1. 28MHz origin oscillation adjustment
2. AFC fo adjustment
3. Filter fo adjustment
4. Y OUT level adjustment
5. C OUT level adjustment
6. REC Y current adjustment
7. REC C/REC AFM current adjustment
1. 28 MHz Origin Oscillation Adjustment
(VC-251 board)
Set the frequency of the clock for synchronization.
If deviated, the synchronization will be disrupted and the color will
become inconsistent.
Mode VTR stop
Signal No signal
Measurement Point R200 (Pin ul of IC151)
Measuring Instrument Frequency counter
Adjustment Page F
Adjustment Address 4D
Specified Value f=3579545 ± 17Hz (NTSC)
f=4433594 ± 17Hz (PAL)
Adjusting method:
Order Page
Address
Data Procedure
1 0 01 01 Set the data.
2 6 61 30 Set the data.
3 2 01 41 Set the data, and press PAUSE
button.
4 F 4D Change the data and set the
frequency (f) to the specified
value.
5 F 4D Press PAUSE button.
6 2 01 00 Set the data, and press PAUSE
button.
7 6 61 10 Set the data.
8 0 01 00 Set the data.
IC151
1
108
162
54
55
109
216 163
R200
