Sony CCD-TR618 - Lcd Section (Pd-131 Board) (Trv Model)

2-3

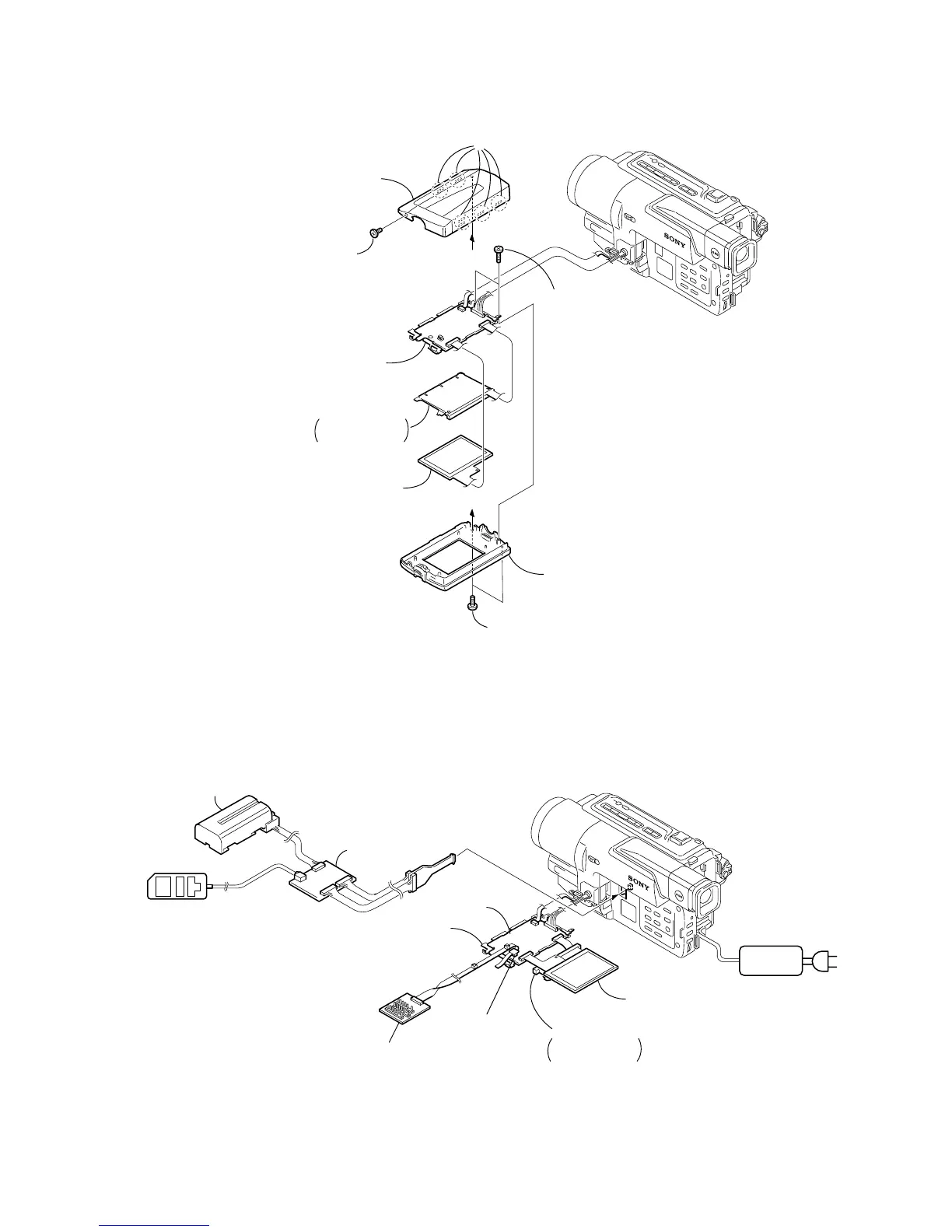

2-2. LCD SECTION (PD-131 BOARD) (TRV MODEL)
PD-131
PD-131
CN5502
A
A
1 Two tapping
screws (B2 × 5)
6 P cabinet M (12) assembly
5 Two tapping
screws (B2 × 7)
2 MI screw
(M2 × 4) (H)
4 P cabinet C (12)
3 Five claws
7 Liquid crystal
indicator module
Liquid crystal
indicator module
8 Back light
Cold cathode
fluorescent tube
9 PD-131 board,
Panel frame (12)
PD-131 board
Panel frame (12)
Back light
Cold cathode
fluorescent tube
Multi CPC jig
(J-6082-311-A)
[PD-131 BOARD SERVICE POSITION]
CPC-jig for BX/BK
(J-6082-521-A)
Adjustment remote
commander (RM-95)
Info lithium battery
(L series)
AC IN
AC power
adaptor
