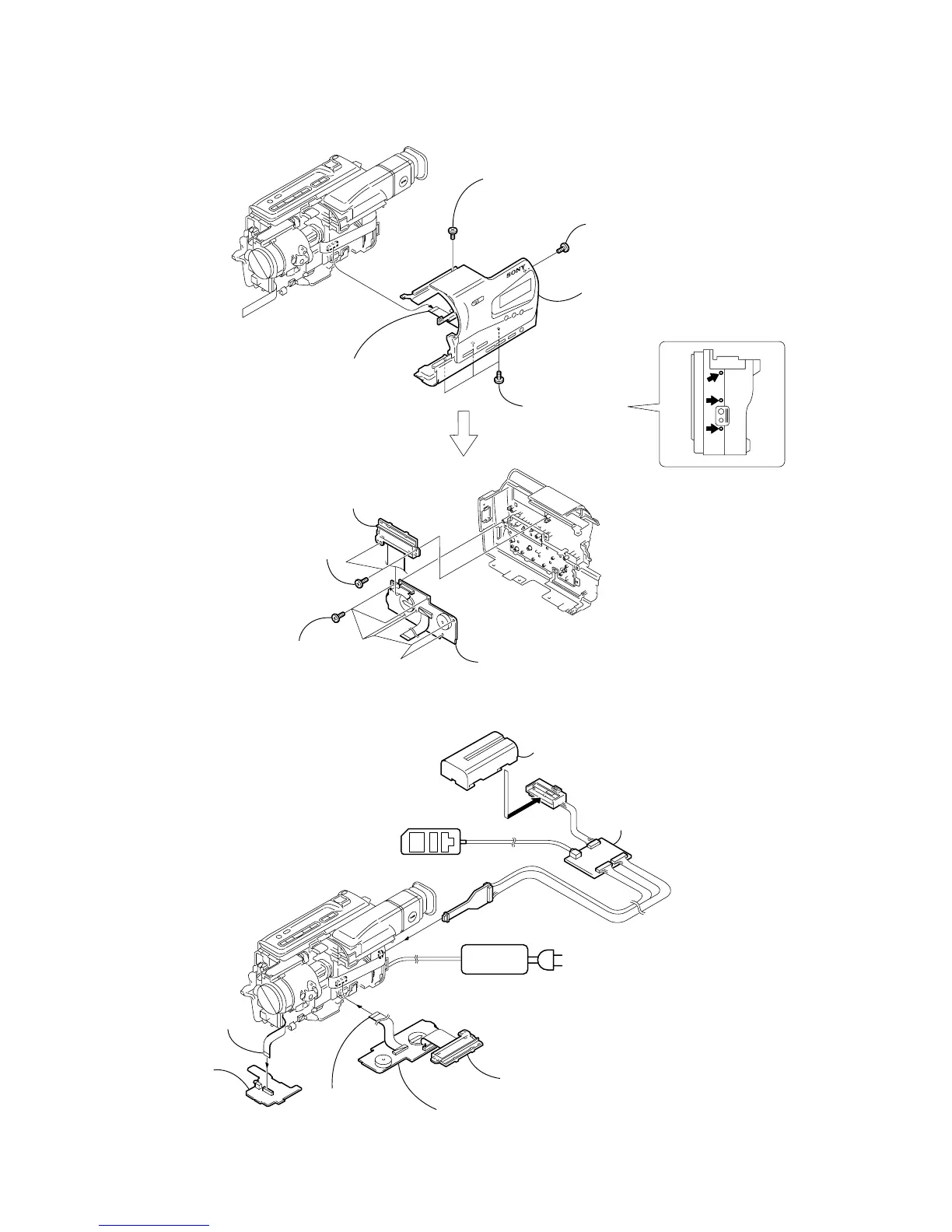

2-5. CABINET (R) SECTION (CF-077 BOARD) (TR MODEL)
MI-040
1 MI screw
(M2
× 4) (H)
2 MI screw
(M2
× 4) (H)
3 Three MI screws
(M2
× 4) (H)
4 FFC-295 flexible
flat cable (24P)
FFC-295 flexible
flat cable (24P)
5 Cabinet (R) section
1 Two tapping
screws (B2
× 5)
4 CF-077 board
3 Six tapping
screws (B2
× 5)
CF-077 board
2 Liquid crystal display panel,
LCD holder
Liquid crystal display panel,
LCD holder
[CF-077, MI-040 BOARDS SERVICE POSITION]
C
F
-07
7
CF-077
MI-040 board
Adjustment remote
commander (RM-95)
Info lithium battery
(L series)
CPC-jig for BX/BK
(J-6082-521-A)
FP-263 flexible
board (24P)
AC IN
AC power
adaptor
