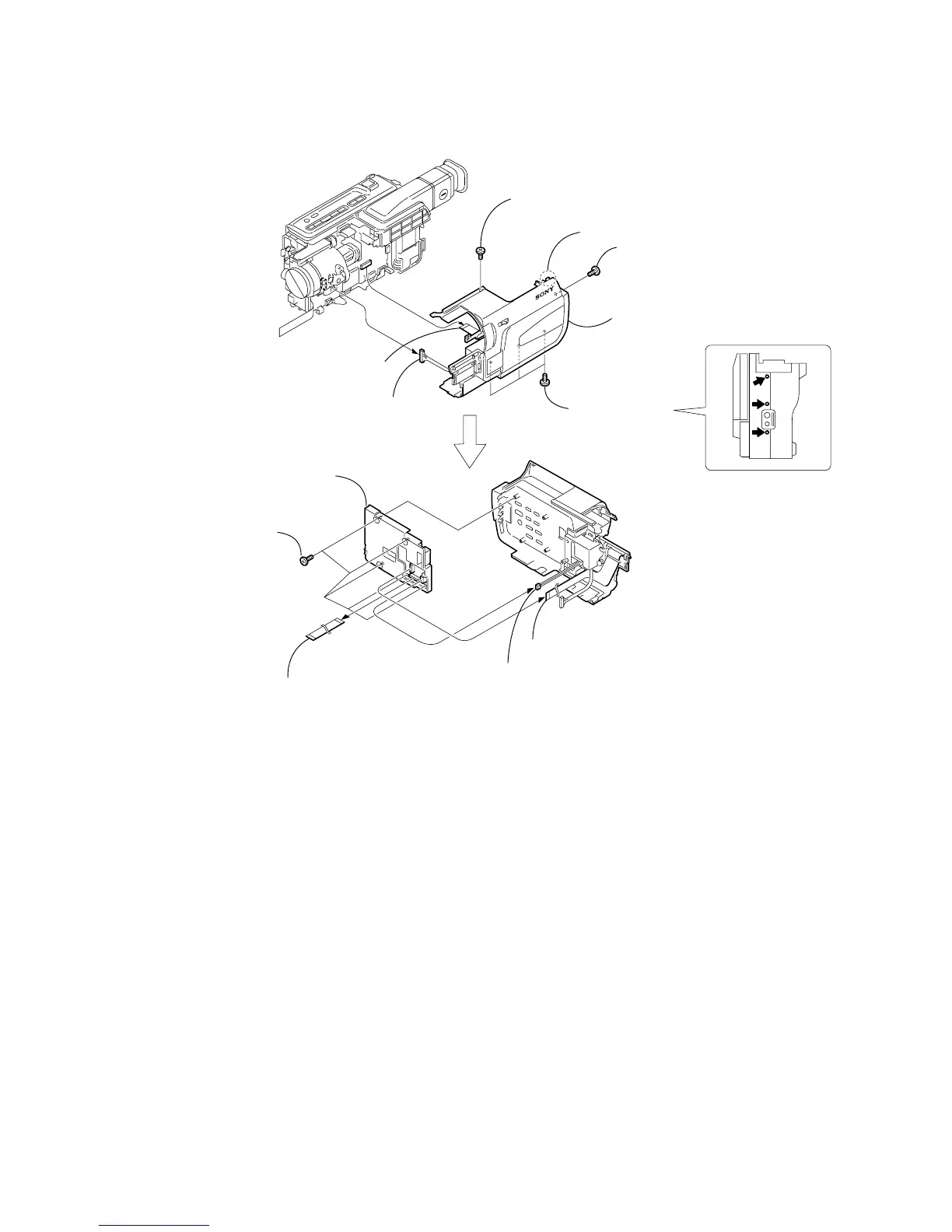

2-6. CABINET (R) SECTION [ CONTROL SWITCH BLOCK (CF-1000) ] (TRV MODEL)
1 MI screw
(M2
× 4) (H)
2 MI screw
(M2
× 4) (H)
4 Claw
3 Three MI screws
(M2
× 4) (H)
6 FFC-295 flexible
flat cable (24P)
1 FFC-295 flexible flat cable (24P)
2 FP-260 flexible board (16P)
3 Push switch (2P)
7 Cabinet (R) section
4 Five tapping
screws (B2
× 5)
5 Harness
(PD-110) (20P)
5 Control switch block
(CF-1000)
