Sony CCD-TR618 - Repair Parts List; Exploded Views; Cabinet (R) Section; Cabinet (L) Section

CCD-TR618/TR618E/TR718E/TR728E/TR818/TRV49/TRV49E/TRV58/
TRV58E/TRV59E/TRV68/TRV78/TRV78E/TRV88/TRV98/TRV98E
— 40 —

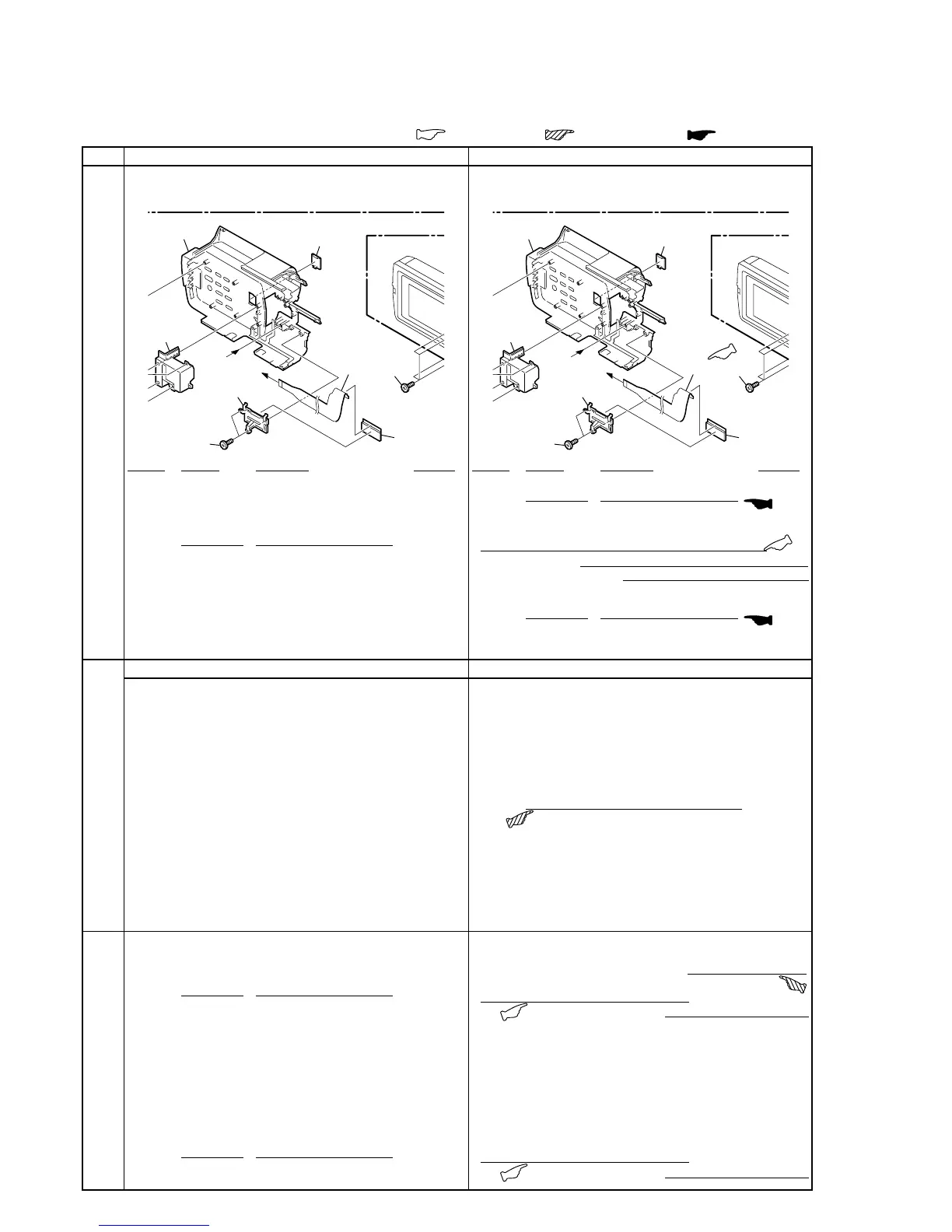

SECTION 6. REPAIR PARTS LIST
6-1. EXPLODED VIEWS
Page
6-5
6-2
6-7
Old
New
: Added portion. : Changed portion. : Deleted portion.
6-1-5. CABINET (R) SECTION
210 3-065-434-41 WINDOW (10), LCD (TR718E)
212 A-7096-917-A LCD BLOCK ASSY (FOR SERVICE)
(TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/
TRV78/TRV78E/TRV88/TRV98/TRV98E)
LCD902 1-803-844-91 DISPLAY PANEL, LIQUID CRYSTAL
(TR618/TR618E/TR718E/TR728E/TR818)
210 3-065-434-41 WINDOW (10), LCD (TR718E)
211 1-680-201-11 FP-260 FLEXIBLE BOARD
(TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/
TRV78/TRV78E/TRV88/TRV98/TRV98E)
LCD902 1-803-844-91 DISPLAY PANEL, LIQUID CRYSTAL
(TR618/TR618E/TR718E/TR728E/TR818)
LCD902 1-804-255-11 DISPLAY PANEL, LIQUID CRYSTAL
(TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/
TRV78/TRV78E/TRV88/TRV98/TRV98E)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
A
B
2.5 inch
L
TRV model
0
2
LCD902
202
201
201
211
204
205
206
A
B
2.5 inch
L
TRV model
0
2
LCD902
202
201
201
212
204
205
206
6-1-5. CABINET (R) SECTION
Type S
Type M
65 A-7096-402-A VC-251 (N-B) BOARD, COMPLETE
(SERVICE)(TR618)
65 A-7096-403-A VC-251 (N-C) BOARD, COMPLETE
(SERVICE)(TR818)
65 A-7096-404-A VC-251 (P-B) BOARD, COMPLETE
(SERVICE)(TR618E/TR718E/TR728E)
65 A-7096-815-A VC-251 (N-VMMB-M) BOARD, COMPLETE
(SERVICE)(TRV68/TRV78/TRV88/TRV98)
65 A-7096-406-A VC-251 (P-VMMB) BOARD, COMPLETE
(SERVICE)(TRV78E/TRV98E)
65 A-7096-409-A VC-251 (N-VB) BOARD, COMPLETE
(SERVICE)(TRV49/TRV58)
65 A-7096-456-A VC-251 (P-VB) BOARD, COMPLETE
(SERVICE)(TRV49E/TRV58E/TRV59E)
311 3-953-817-01 RUBBER (F), SEAL(TR818/TRV78E/TRV98E)
311 3-953-817-11 RUBBER (F), SEAL
(TRV68/TRV78/TRV88/TRV98)
311 3-968-054-11 RUBBER (FM), SHIELD
(TR618/TR618E/TR718E/TR728E/TRV49/
TRV49E/TRV58/TRV58E/TRV59E)
IC191 A-7031-040-A CCD BLOCK ASSY (TR618/TRV49/TRV58)
IC191 A-7031-043-A CCD BLOCK ASSY
(TR618E/TR718E/TR728E/TRV49E/TRV58E/TRV59E)
IC191 A-7031-049-A CCD BLOCK ASSY (TRV78E/TRV98E)
IC191 A-7031-207-A CCD BLOCK ASSY
(TR818/TRV68/TRV78/TRV88/TRV98)
IC191 A-7031-301-A CCD BLOCK ASSY
(TRV68/TRV78/TRV88/TRV98)
65 A-7096-402-A VC-251 (N-B) BOARD, COMPLETE
(SERVICE)(TR618)
65 A-7096-403-A VC-251 (N-C) BOARD, COMPLETE
(SERVICE)(TR818)
65 A-7096-404-A VC-251 (P-B) BOARD, COMPLETE
(SERVICE)(TR618E/TR718E/TR728E)
65 A-7096-405-A VC-251 (N-VMMB) BOARD, COMPLETE
(SERVICE)(TRV68/TRV78/TRV88/TRV98)
65 A-7096-406-A VC-251 (P-VMMB) BOARD, COMPLETE
(SERVICE)(TRV78E/TRV98E)
65 A-7096-409-A VC-251 (N-VB) BOARD, COMPLETE
(SERVICE)(TRV49/TRV58)
65 A-7096-456-A VC-251 (P-VB) BOARD, COMPLETE
(SERVICE)(TRV49E/TRV58E/TRV59E)
311 3-953-817-01 RUBBER (F), SEAL
(TR818/TRV68/TRV78/TRV78E/TRV88/TRV98/TRV98E)
311 3-968-054-11 RUBBER (FM), SHIELD
(TR618/TR618E/TR718E/TR728E/TRV49/
TRV49E/TRV58/TRV58E/TRV59E)
IC191 A-7031-040-A CCD BLOCK ASSY (TR618/TRV49/TRV58)
IC191 A-7031-043-A CCD BLOCK ASSY
(TR618E/TR718E/TR728E/TRV49E/TRV58E/TRV59E)
IC191 A-7031-049-A CCD BLOCK ASSY (TRV78E/TRV98E)
IC191 A-7031-207-A CCD BLOCK ASSY
(TR818/TRV68/TRV78/TRV88/TRV98)
6-1-2. CABINET (L) SECTION 6-1-2. CABINET (L) SECTION
6-1-7. LENS SECTION 6-1-7. LENS SECTION
