Sony CCD-TR618 - Lcd Section (Trv Model)

6-6

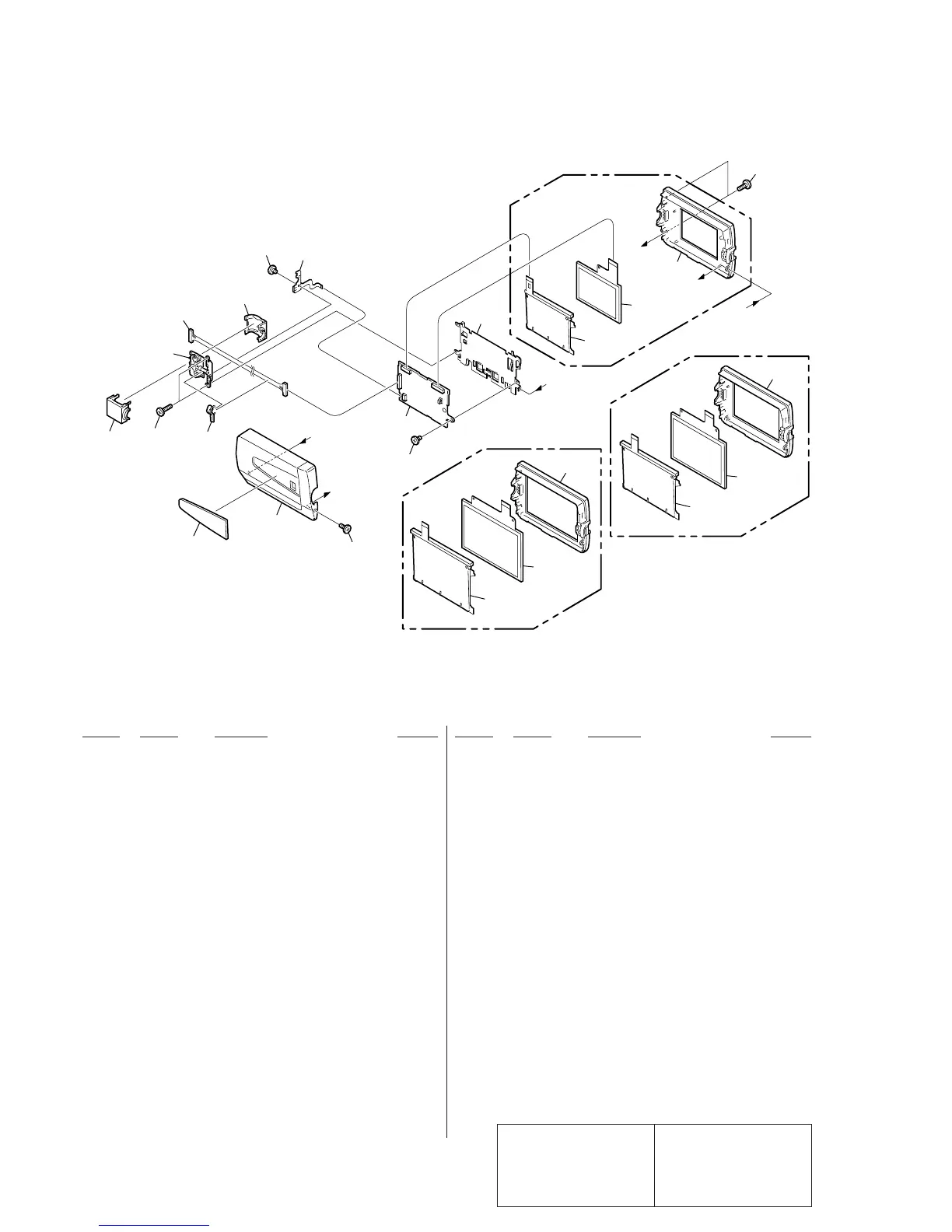

6-1-6. LCD SECTION (TRV MODEL)
(TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/TRV78/TRV78E/TRV88/TRV98/TRV98E)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
251 3-067-347-01 MI SCREW M2 (H)
252 3-065-474-11 CABINET C (12), P
* 253 3-058-672-01 CLAMP, HARNESS
254 3-948-339-31 SCREW, TAPPING
255 3-065-477-11 COVER C (12), HINGE
256 X-3951-206-1 HINGE (12) ASSY
257 1-960-975-11 HARNESS (PD-110)
258 3-065-478-01 COVER M (12), HINGE
259 4-974-725-01 SCREW (M1.7X2.5), P
260 1-418-802-11 SWITCH BLOCK, CONTROL (PR-10000)
261 A-7074-667-A PD-131 (S-3.5) BOARD, COMPLETE
(TRV98/TRV98E)
261 A-7074-680-A PD-131 (S-2.5) BOARD, COMPLETE
(TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/TRV78/TRV78E)
261 A-7074-701-A PD-131 (S-3.0) BOARD, COMPLETE (TRV88)
262 3-968-729-51 SCREW (M2), LOCK ACE, P2
263 3-065-475-01 FRAME (12), PANEL
(TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/TRV78/TRV78E)
* 263 3-065-475-11 FRAME (12), PANEL (TRV88/TRV98/TRV98E)
264 X-3951-199-1 CABINET M (12) ASSY, P
(TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/TRV78/TRV78E)
264 X-3951-200-1 CABINET M (12) ASSY, P (TRV98/TRV98E)
264 X-3951-201-1 CABINET M (12) ASSY, P (TRV88)
265 3-948-339-81 TAPPING
266 3-065-435-01 PLATE (12), PANEL ORNAMENTAL (TRV98)
266 3-065-435-21 PLATE (12), PANEL ORNAMENTAL (TRV88)
266 3-065-435-31 PLATE (12), PANEL ORNAMENTAL (TRV78)
266 3-065-435-41 PLATE (12), PANEL ORNAMENTAL (TRV59E)
266 3-065-435-51 PLATE (12), PANEL ORNAMENTAL (TRV68)
266 3-065-435-61 PLATE (12), PANEL ORNAMENTAL (TRV98E)
266 3-065-435-81 PLATE (12), PANEL ORNAMENTAL (TRV78E)
266 3-065-529-21 PLATE (12), PANEL ORNAMENTAL (TRV58)
266 3-065-529-31 PLATE (12), PANEL ORNAMENTAL (TRV49)
266 3-065-529-41 PLATE (12), PANEL ORNAMENTAL (TRV58E)
266 3-065-529-51 PLATE (12), PANEL ORNAMENT (TRV49E)
LCD901 1-803-852-31 INDICATOR MODULE LIQUID CRYSTAL
(TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/TRV78/TRV78E)
LCD901 1-803-854-21 INDICATOR MODULE LIQUID CRYSTAL(TRV88)
LCD901 1-803-855-21 INDICATOR MODULE LIQUID CRYSTAL
(TRV98/TRV98E)
0 ND901 1-517-752-41 TUBE, FLUORESCENT,COLD CATHODE
(TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/TRV78/TRV78E)
0 ND901 1-517-855-31 TUBE, FLUORESCENT,COLD CATHODE
(TRV98/TRV98E)
0 ND901 1-517-856-31 TUBE, FLUORESCENT,COLD CATHODE (TRV88)
Note :
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Note :
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
PD-131
A
A
B
C
C
B
3.0 inch LCD model
3.5 inch LCD model
2.5 inch LCD model
LCD901
LCD901
LCD901
ND901
ND901
ND901
251
252
253
254
256
257
258
259
260
261
262
263
264
264
265
264
255
266
2.5 inch LCD model
3.0 inch LCD model
3.5 inch LCD model
:CCD-TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/TRV78/TRV78E
:CCD-TRV88
:CCD-TRV98/TRV98E
