Sony CCD-TR618 - Cabinet (L) Section

2-5

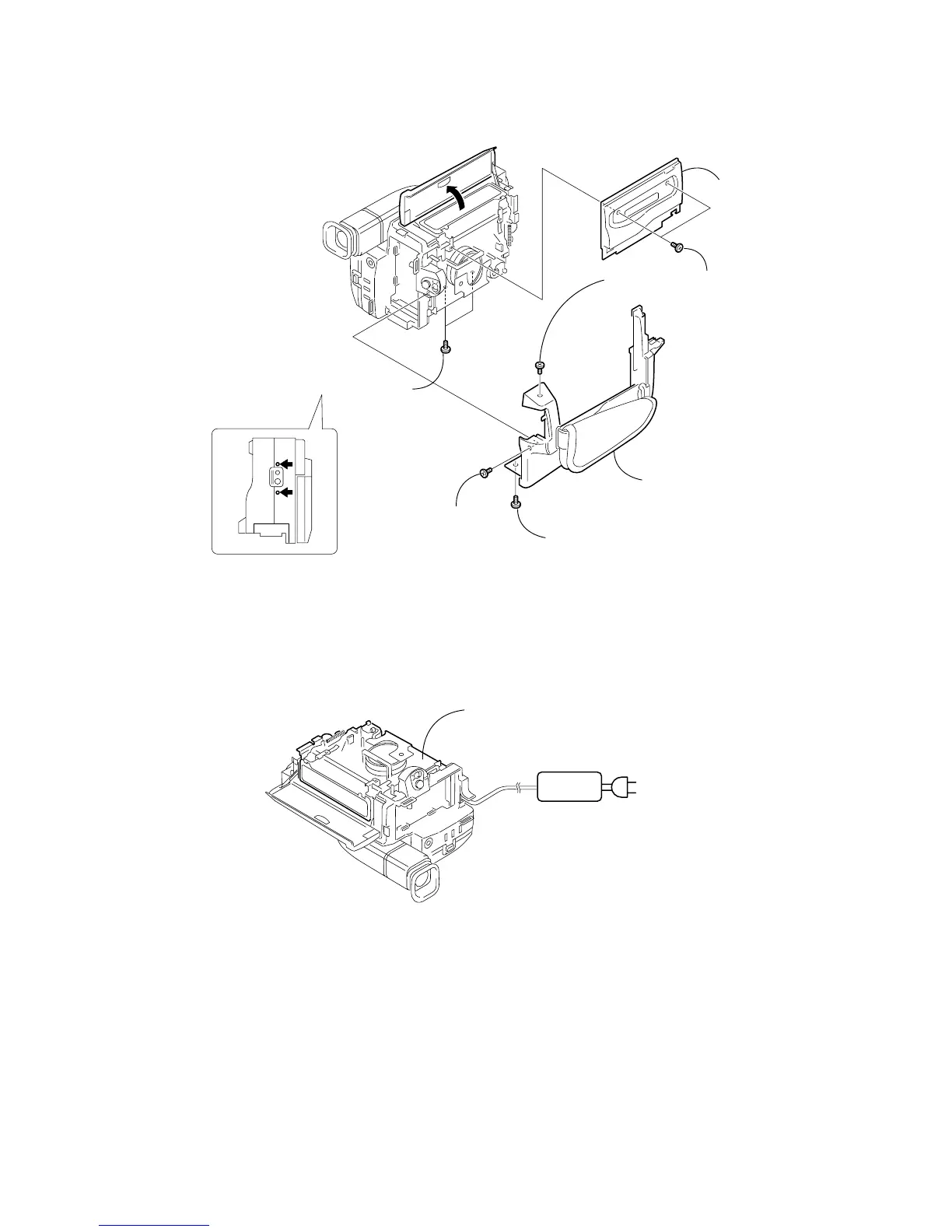

2-4. CABINET (L) SECTION
2 Two MI screws
(M2
× 4) (H)
6 Two MI screws
(M2
× 4) (H)
4 MI screw
(M2
× 4) (H)
5 MI screw
(M2
× 4) (H)
7 MI screw
(M2
× 4) (H)
8 Cabinet (L) section
3 Cassette lid assembl
y
1
[MECHANISM DECK SERVICE POSITION]
Note: Use the parts only which can be removed easily from outside of the mechanism deck.
AC IN
AC power
adaptor
Mechanism deck
