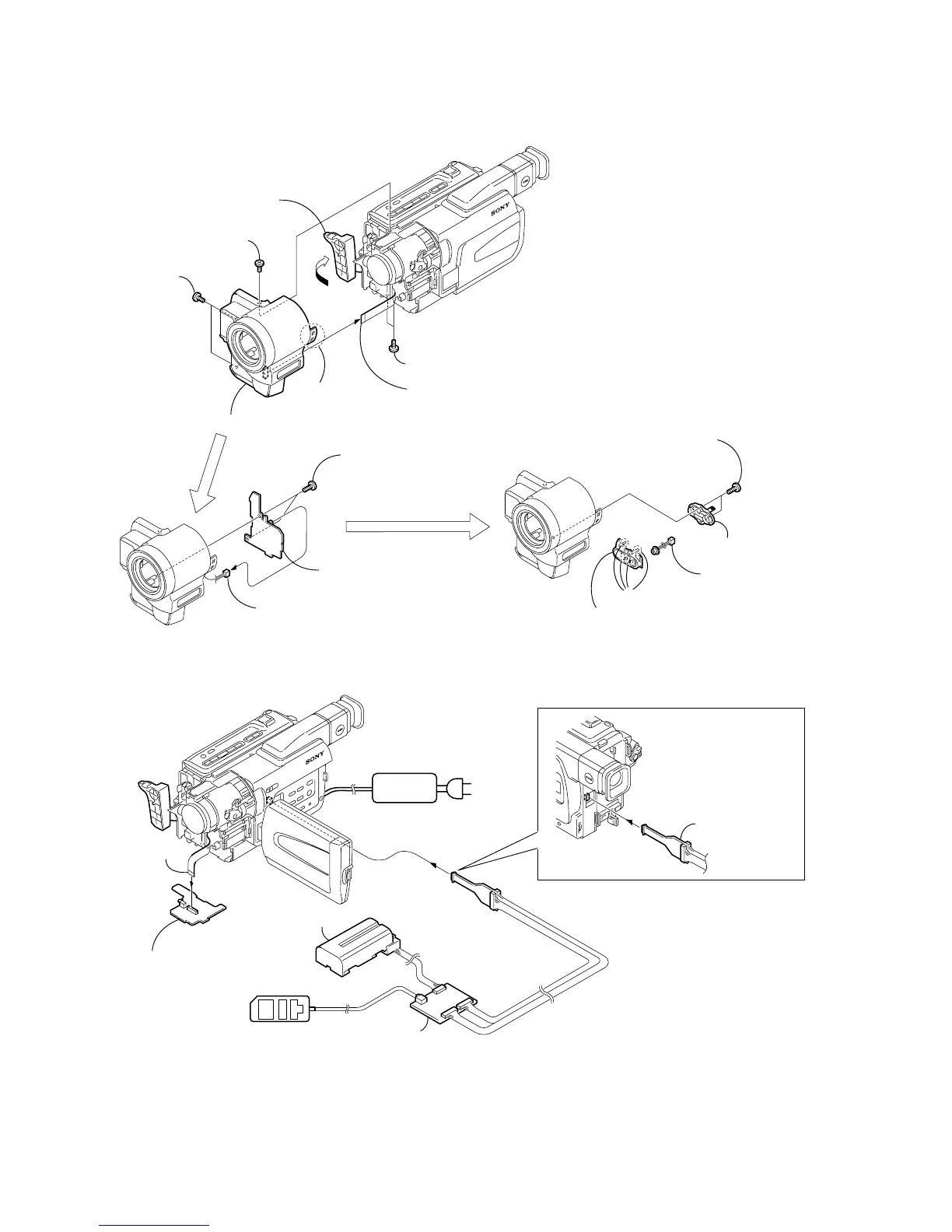

2-3. FRONT PANEL SECTION, MI-040/041 BOARD
MI-
Board
MI-board
3 MI screw
(M2
× 4) (H)
1 Open the jack cover
2 Two MI screws
(M2
× 4) (H)
4 Two MI screws
(M2
× 4) (H)
5 Claw
2 Four claws
3 Microphone
retainer (rear
)
4 Microphone
retainer (front)
7 Front panel section
6 FP-263 flexible
board (24P)
FP-263 flexible
board (24P)
2 Two tapping
screws (B2
× 5)
1 Microphone (2P)
5 Microphone
3 MI-040 board (TR model)
MI-041 board (TRV model)
1 Two tapping
screws (B2
× 5)
MI-040 board (TR model)
MI-041 board (TRV model)
[MI-040/041 BOARD SERVICE POSITION]
CPC-jig for BX/BK
(J-6082-521-A)
Adjustment remote
commander (RM-95)
Info lithium battery
(L series)
AC IN
AC power
adaptor
CPC-jig for BX/BK
(J-6082-521-A)
TR model
