Sony CCD-TR618 - SECTION 6. REPAIR PARTS LIST; 6-1. EXPLODED VIEWS

6-1
SECTION 6
REPAIR PARTS LIST
6-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Abbreviation
CND : Canadian model
HK : Hong Kong model
KR : Korea model
JE : Tourist model
AUS : Australian model
CN : Chinese model
BR : Brazilian model
AR : Argentina model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
CCD-TR618/TR618E/TR718E/TR728E/TR818/TRV49/TRV49E/TRV58/
TRV58E/TRV59E/TRV68/TRV78/TRV78E/TRV88/TRV98/TRV98E

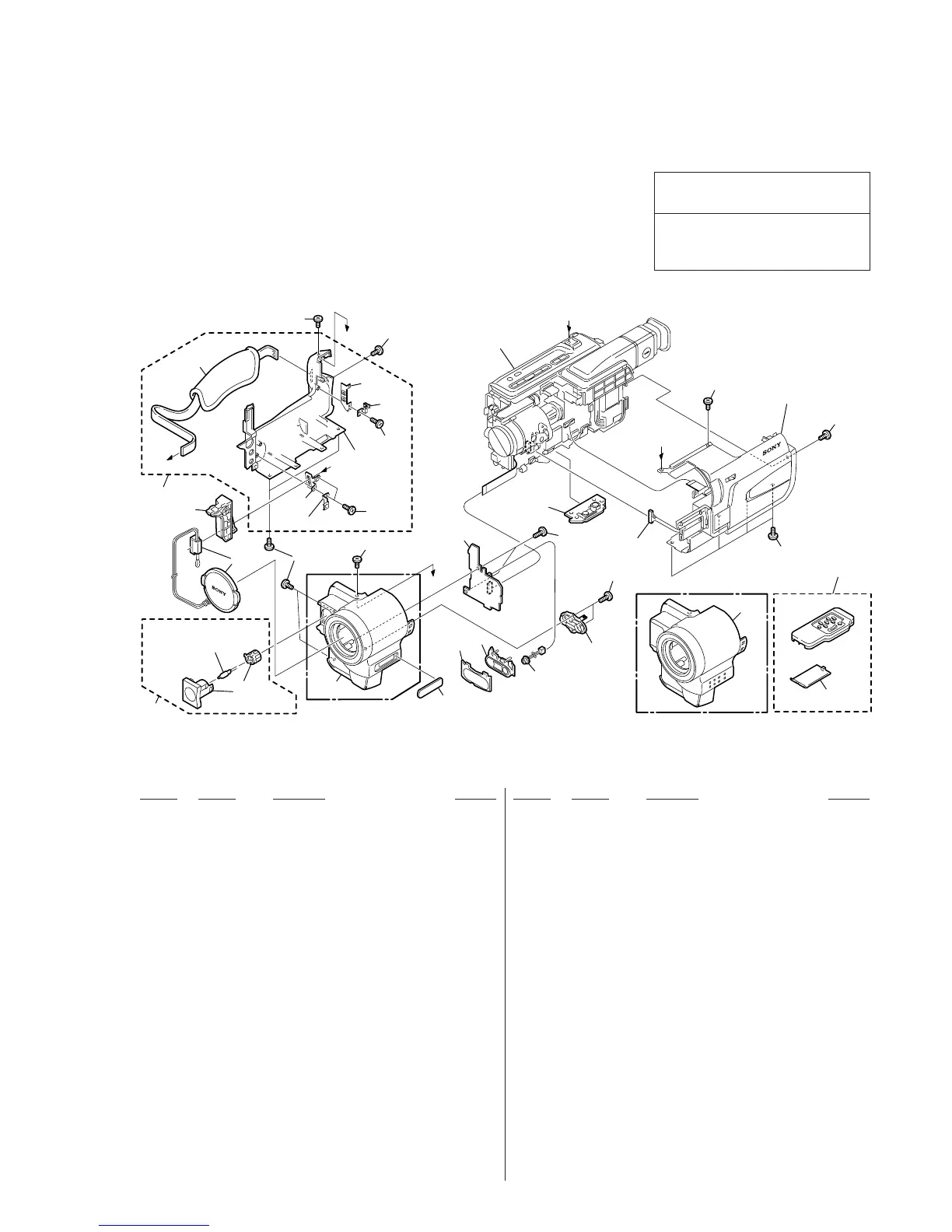

6-1-1. OVERALL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 3-948-339-61 TAPPING
2 3-065-468-01 RETAINER (REAR), MICROPHONE
3 3-065-467-11 RETAINER (FRONT), MICROPHONE
* 4 3-065-470-01 CUSHION (10), MICROPHONE
5 X-3951-213-1 PANEL(10) ASSY, F (TRV88)
5 X-3951-214-1 PANEL(10) ASSY, F (TR728E)
5 X-3951-215-1 PANEL(10) ASSY, F (TR818)
5 X-3951-216-1 PANEL(10) ASSY, F (TRV98)
5 X-3951-217-1 PANEL(10) ASSY, F (TR618/TR618E)
5 X-3951-218-1 PANEL(10) ASSY, F (TRV59E)
5 X-3951-219-1 PANEL(10) ASSY, F (TR718E)
5 X-3951-221-1 PANEL(10) ASSY, F (TRV68)
5 X-3951-368-1 PANEL(10) ASSY, F (TRV78/TRV78E/TRV98E)
5 X-3951-383-1 PANEL(10) ASSY, F (TRV49/TRV49E)
5 X-3951-384-1 PANEL(10) ASSY, F (TRV58/TRV58E)
6 3-067-347-01 MI SCREW M2 (H)
7 1-518-723-21 LIGHT, VIDEO
(TR618/TR618E/TR718E/TR728E/TRV49/TRV49E/TRV58/TRV58E/
TRV59E/TRV68/TRV78/TRV78E/TRV88/TRV98/TRV98E)
8 X-3949-376-1 CAP(N) ASSY, LENS
9 3-065-433-01 COVER(10), JACK
10 X-3951-193-1 CABINET L (10) ASSY
11 3-052-815-01 BELT(ES), GRIP
* 12 3-065-455-01 STOPPER (FRONT) (10), BELT
* 13 3-065-457-01 PLATE REAR (10), L GROUND
14 3-058-622-01 STOPPER (REAR), BELT
15 A-7074-659-A MI-040 (L0) BOARD, COMPLETE
(TR618/TR618E/TR718E)
15 A-7074-661-A MI-040 (MM0) BOARD, COMPLETE (TR818)
15 A-7074-665-A MI-041 (MMI) BOARD, COMPLETE (TRV98)
15 A-7074-682-A MI-041 (MM) BOARD, COMPLETE
(TRV78/TRV78E/TRV98E)
15 A-7074-683-A MI-040 (0) BOARD, COMPLETE (TR728E)
15 A-7074-700-A MI-041 (ML) BOARD, COMPLETE
(TRV58/TRV58E)
15 A-7074-707-A MI-041 (MML) BOARD, COMPLETE
(TRV68/TRV88)
15 A-7074-719-A MI-041 (M) BOARD, COMPLETE
(TRV49/TRV49E/TRV59E)
16 3-987-717-01 SCREW, TRIPOD
17 1-467-574-21 REMOTE COMMANDER (RMT-708)
(TR728E/TRV49/TRV49E/TRV59E/TRV78/TRV78E/TRV98/TRV98E)
18 3-958-131-01 LID,BATTERY CASE (FOR RMT-708)
19 3-065-464-11 WINDOW (12), LCD
(TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/
TRV78/TRV78E/TRV88/TRV98/TRV98E)
MIC901 1-542-312-11 MICROPHONE
MI-
Board
A
B
C
A
B
C
Note
MIC901
Note: the TR models do not have
the harness (PD-110)
shown by Note.
Cabinet (L) section
(See page 6-2)
Cabinet (R) section
(See page 6-5)
Video light model
No video light model
TR model
Video light model
No video light model
:CCD-TR618/TR618E/TR718E/TR728E/TR818
:CCD-TR618/TR618E/TR718E/TR728E/
TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/TRV78/TRV78E/TRV88/TRV98/TRV98E
:CCD-TR818
LAMP, HALOGEN
XB-3D (HL6V/3W)
not
supplied
not
supplied
not supplied
1
2
3
6
6
6
6
17
19
18
6
6
6
8
9
10
11
12
13
15
16
14
4
5
7
5
1
1
1
