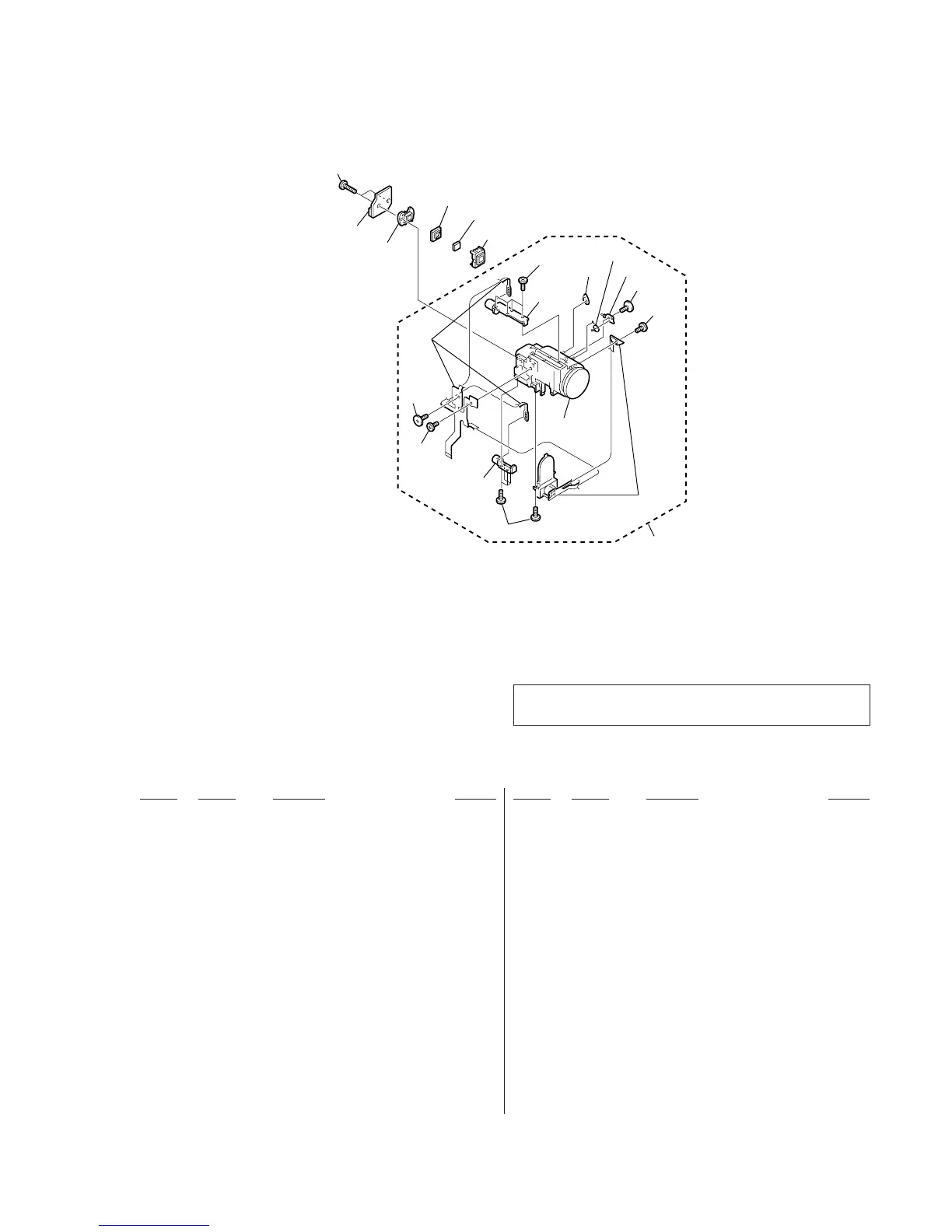

6-1-7. LENS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
301 8-848-729-01 DEVICE, LENS LSV-630A
302 X-3949-355-2 FLEXIBLE ASSY (630), IRIS
303 3-713-791-41 SCREW (M1.7X5), TAPPING, P2
304 3-713-791-51 SCREW (M1.7X3.5), TAPPING, P2
305 3-056-022-01 TAPPING (B1.7X3.5), HEAD
306 3-053-827-01 LEVER, IR
307 3-053-800-01 SPRING, RETURN
308 3-053-799-01 GEA, IR
309 3-978-981-11 ADAPTOR (FK), CCD FITTING
310 1-758-084-21 FILTER BLOCK, OPTICAL
(TR618/TR618E/TR718E/TR728E/TRV49/
TRV49E/TRV58/TRV58E/TRV59E)
310 1-758-133-21 FILTER BLOCK, OPTICAL
(TR818/TRV68/TRV78/TRV78E/TRV88/TRV98/TRV98E)
311 3-953-817-01 RUBBER (F), SEAL
(TR818/TRV68/TRV78/TRV78E/TRV88/TRV98/TRV98E)
311 3-968-054-11 RUBBER (FM), SHIELD
(TR618/TR618E/TR718E/TR728E/TRV49/
TRV49E/TRV58/TRV58E/TRV59E)
312 A-7074-658-A CD-286 BOARD, COMPLETE
(TR618/TR618E/TR718E/TR728E)
312 A-7074-662-A CD-286 (MM) BOARD, COMPLETE (TR818)
312 A-7074-666-A CD-281 (MM) BOARD, COMPLETE
(TRV68/TRV78/TRV78E/TRV88/TRV98/TRV98E)
312 A-7074-698-A CD-281 BOARD, COMPLETE
(TRV49/TRV49E/TRV58/TRV58E/TRV59E)
313 3-318-203-11 SCREW (B1.7X6), TAPPING
IC191 A-7031-040-A CCD BLOCK ASSY (TR618/TRV49/TRV58)
IC191 A-7031-043-A CCD BLOCK ASSY
(TR618E/TR718E/TR728E/TRV49E/TRV58E/TRV59E)
IC191 A-7031-049-A CCD BLOCK ASSY (TRV78E/TRV98E)
IC191 A-7031-207-A CCD BLOCK ASSY
(TR818/TRV68/TRV78/TRV88/TRV98)
M905 1-763-262-11 MOTOR, STEPPING F630 (FOCUS)
M906 1-763-046-21 MOTOR, STEPPING Z600 (ZOOM)
IC191
M906
M905
not
supplied
301
302
303
303
304
305
306308
309
310
311
312
313
307
305
302
304
Be sure to read “Precautions upon replacing CCD imager”
on page 4-8 when changing the CCD imager.
