7. Color Reproduction Adjustment
Adjust the color Separation matrix coefficient so that proper color
reproduction is produced.

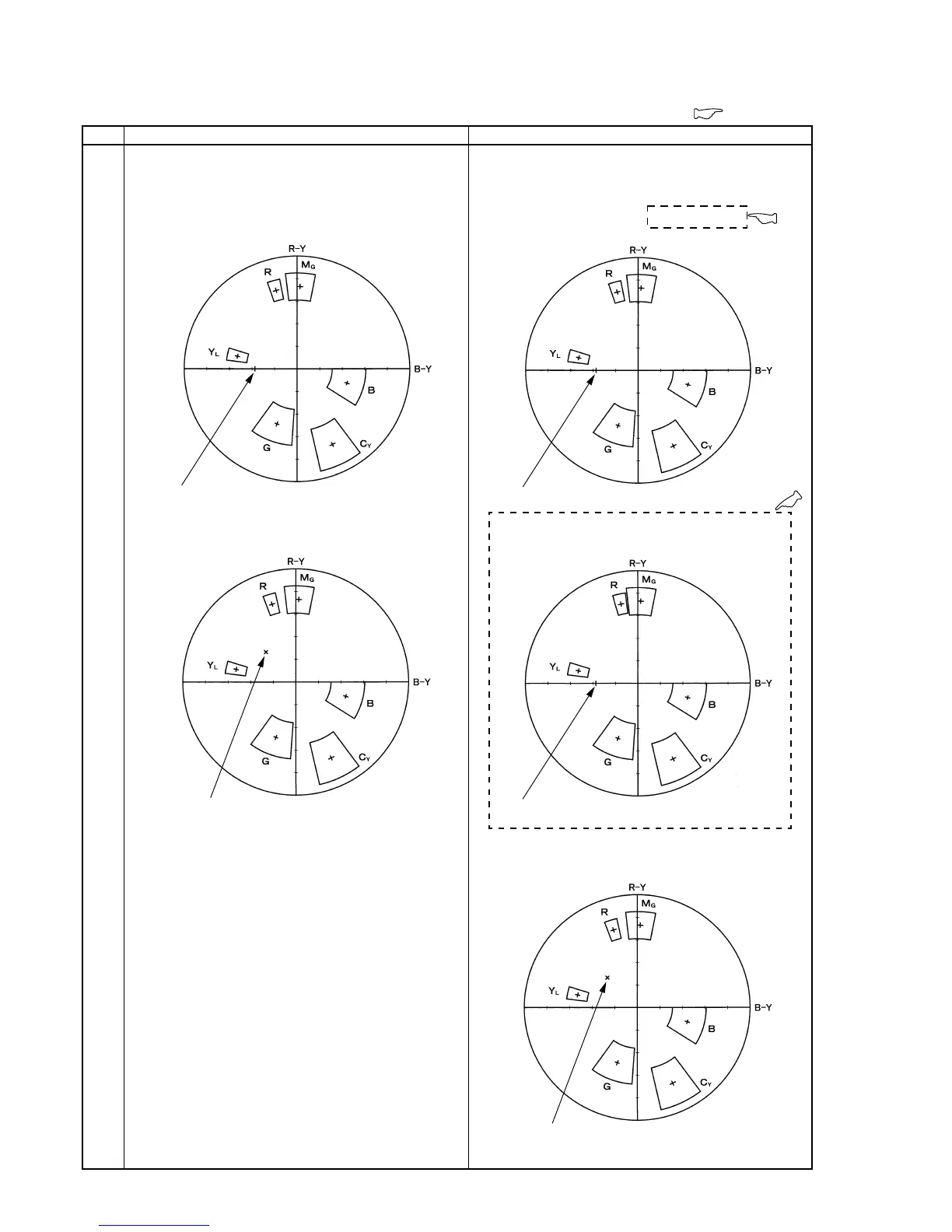

Fig. 5-1-12.
Burst position
For NTSC model
Burst position
For PAL model
Page
5-19
Type S
Type M
: Added portion.
Burst position
For NTSC model (CCD type S)
Burst position
For NTSC model (CCD type M)
Burst position
For PAL model
Fig. 5-1-12.
