Sony CCD-TR618 - Cabinet (R) Section

6-5

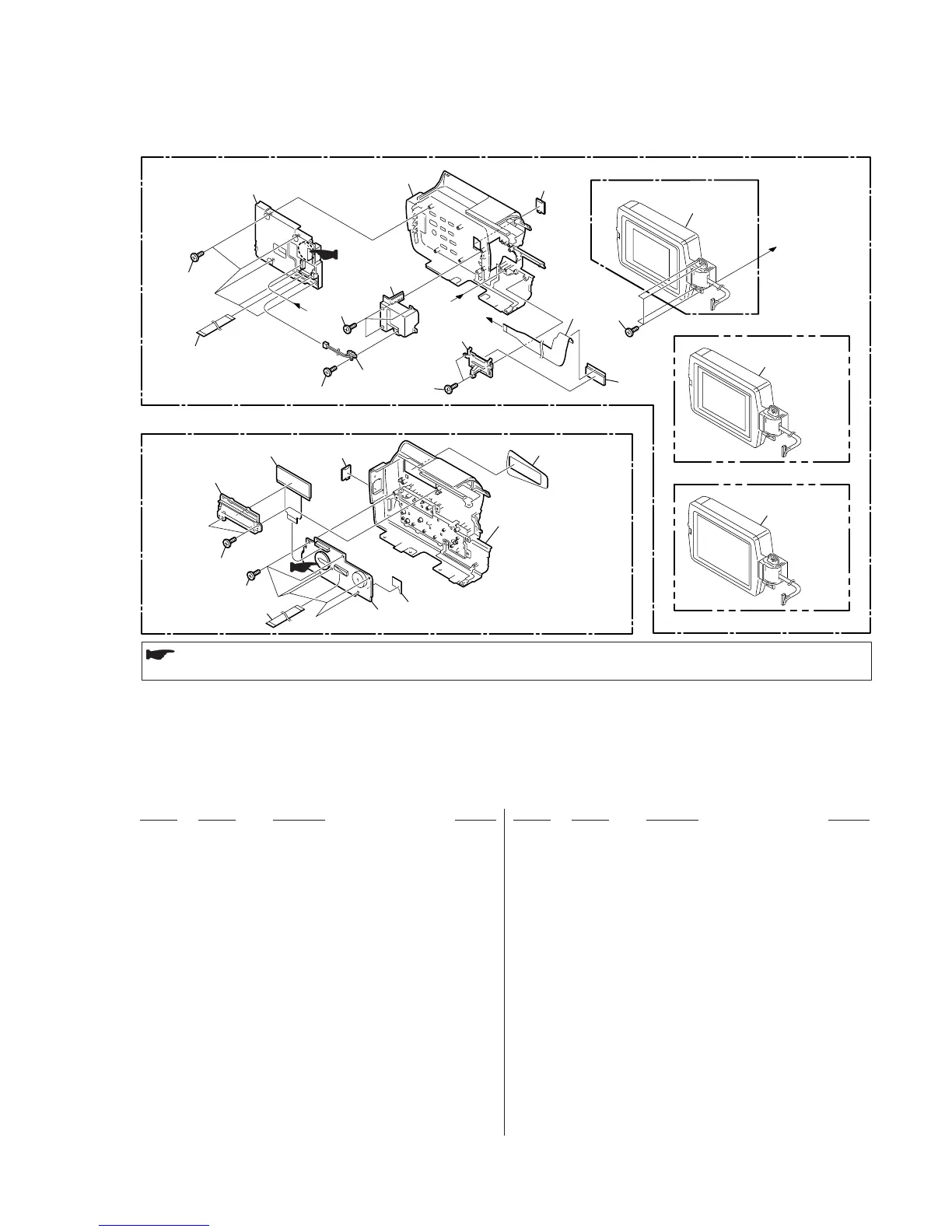

6-1-5. CABINET (R) SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
201 3-948-339-61 TAPPING
202 3-065-436-01 BLIND (12), HINGE
(TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/
TRV78/TRV78E/TRV88/TRV98/TRV98E)
203 1-476-425-11 SWITCH BLOCK, CONTROL (CF-1000)
(TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/
TRV78/TRV78E/TRV88/TRV98/TRV98E)
204 X-3951-224-1 CABINET R (12) ASSY
(TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/
TRV78/TRV78E/TRV88/TRV98/TRV98E)
204 X-3951-226-1 CABINET R (10) ASSY
(TR618/TR618E/TR718E/TR728E/TR818)
205 3-059-539-11 LID(103P), CPC
206 3-065-451-01 HOLDER (12), LCD
(TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/
TRV78/TRV78E/TRV88/TRV98/TRV98E)
206 3-065-452-01 HOLDER (10), LCD
(TR618/TR618E/TR718E/TR728E/TR818)
207 A-7074-663-A CF-077 BOARD, COMPLETE
(TR618/TR618E/TR718E/TR728E/TR818)
* 208 3-065-453-01 SHEET (10), MUFFLE
(TR618/TR618E/TR718E/TR728E/TR818)
209 1-757-397-21 CABLE, FLEXIBLE FLAT (FFC-295)
210 3-065-434-01 WINDOW (10), LCD (TR818)
210 3-065-434-11 WINDOW (10), LCD (TR728E)
210 3-065-434-21 WINDOW (10), LCD (TR618)
210 3-065-434-31 WINDOW (10), LCD (TR618E)
210 3-065-434-41 WINDOW (10), LCD (TR718E)
211 1-680-201-11 FP-260 FLEXIBLE BOARD
(TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/
TRV78/TRV78E/TRV88/TRV98/TRV98E)
LCD902 1-803-844-91 DISPLAY PANEL, LIQUID CRYSTAL
(TR618/TR618E/TR718E/TR728E/TR818)
LCD902 1-804-255-11 DISPLAY PANEL, LIQUID CRYSTAL
(TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/
TRV78/TRV78E/TRV88/TRV98/TRV98E)
S902 1-771-848-11 SWITCH, PUSH
(TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/
TRV78/TRV78E/TRV88/TRV98/TRV98E)
A
A
B
B
: BT001(Lithium battary) CF board on the mount position. (See page 4-36/TR model)
[In the TRV model, the printed wiring board of the control switch block (CF-1000) on which lithium battery is mounted, is not shown.]
3.5 inch LCD model
2.5 inch LCD model
LCD section
(See page 6-6)
LCD section
(See page 6-6)
3.0 inch LCD model
TR model
TRV model
CF-077
S902
LCD902
LCD902
201
201
201
202
201
201
201
201
211
209
203
204
204
210
205
206
206
207
208
209
LCD section
(See page 6-6)
205
TR model
TRV model
2.5 inch LCD model
3.0 inch LCD model
3.5 inch LCD model
:CCD-TR618/TR618E/TR718E/TR728E/TR818
:CCD-TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/TRV78/TRV78E/TRV88/TRV98/TRV98E
:CCD-TRV49/TRV49E/TRV58/TRV58E/TRV59E/TRV68/TRV78/TRV78E
:CCD-TRV88
:CCD-TRV98/TRV98E
