DCR-TRV320/TRV320E/TRV320P/TRV420E/TRV520/TRV520E/TRV520P/TRV525
TRV620E/TRV720/TRV720E
4-67 4-68

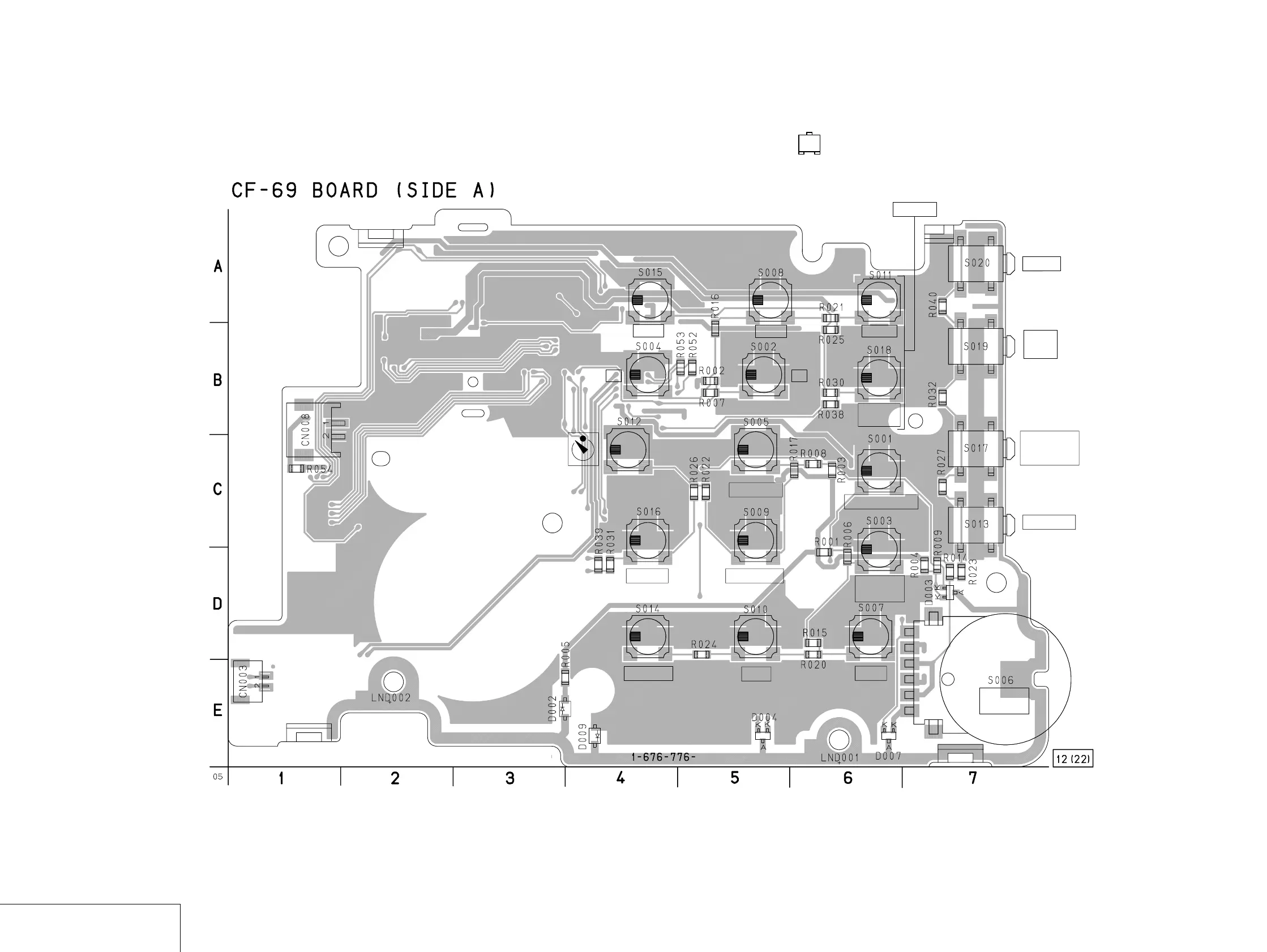

CF-69 (USER CONTROL) PRINTED WIRING BOARD
– Ref. No.: CF-69 board; 20,000 series –
– DCR-TRV320/TRV320E/TRV320P –
USER CONTROL
CF-69
• For Printed Wiring Board.
• There are few cases that the part isn't mounted in this model
is printed on this diagram.
• See page 4-126 for printed parts location.
• Chip transistor
EB
C
PLAY
– +
INDEX
DELETE
MEMORY
MIX
FADER
BACK
LIGHT
PROGRAM
AE
EXPOSURE
MENUTITLEPB ZOOM
EFFECT
SEL/
PUSH EXEC
END SEARCHDISPLAY
DATA CODE
DIGITAL EFFECT
MEMORY
To Next Page
